Eaton In stock 9PX3000IRT2U UPS
3,000 VA · Online double-conversion · Tower/Rack convertible

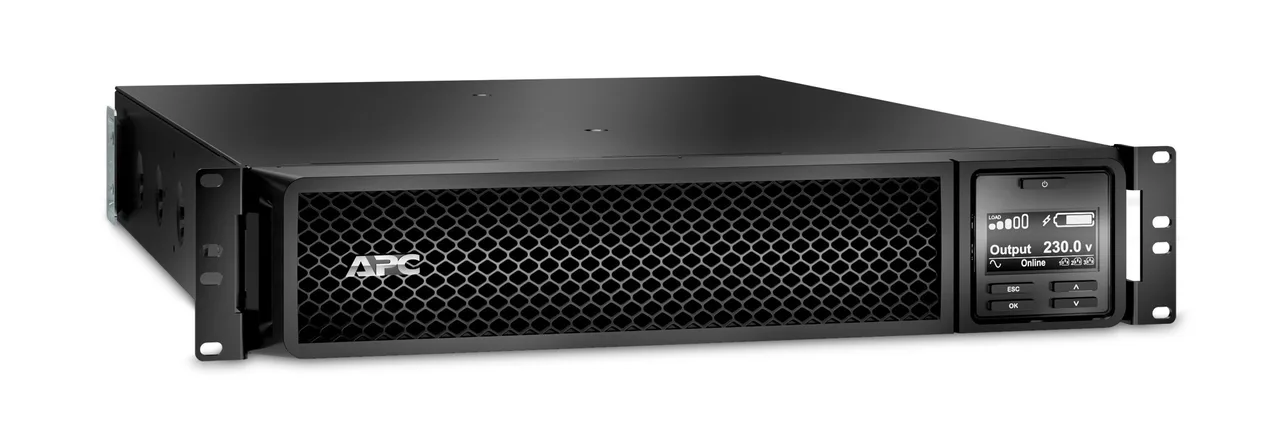

9103-83800APC SMART-UPS ON-LINE 3KVA SRT3000RMXLI
3,000 VA · Online double-conversion · Rackmount
Part numberSRT3000RMXLI
SRP S$6,463.70
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Sine
- Sealed Lead Acid (VRLA)
- Rackmount Black
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 340 J
- Efficiency
- 92%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Surge protection
- Yes
- Power protection features
- Overload
- Audible alarm(s)
- Yes
- Audible alarm modes
- Battery replacement
- Auto-restart
- Yes
Ports & interfaces

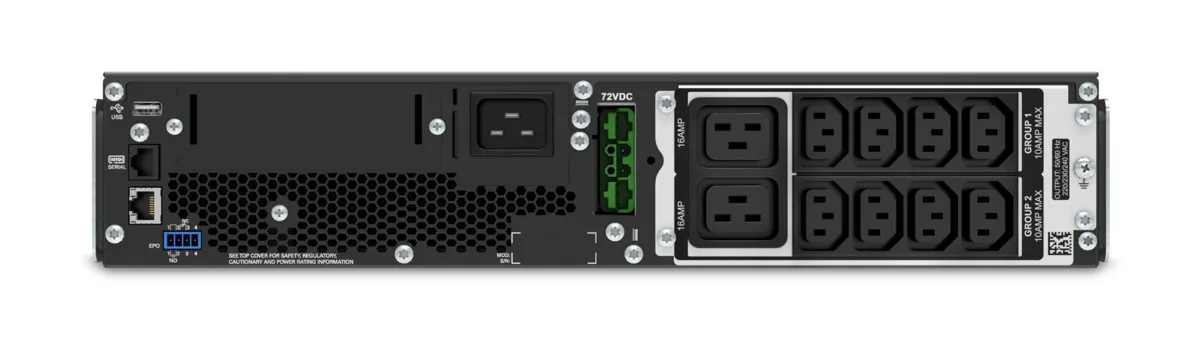

- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 505 VAh

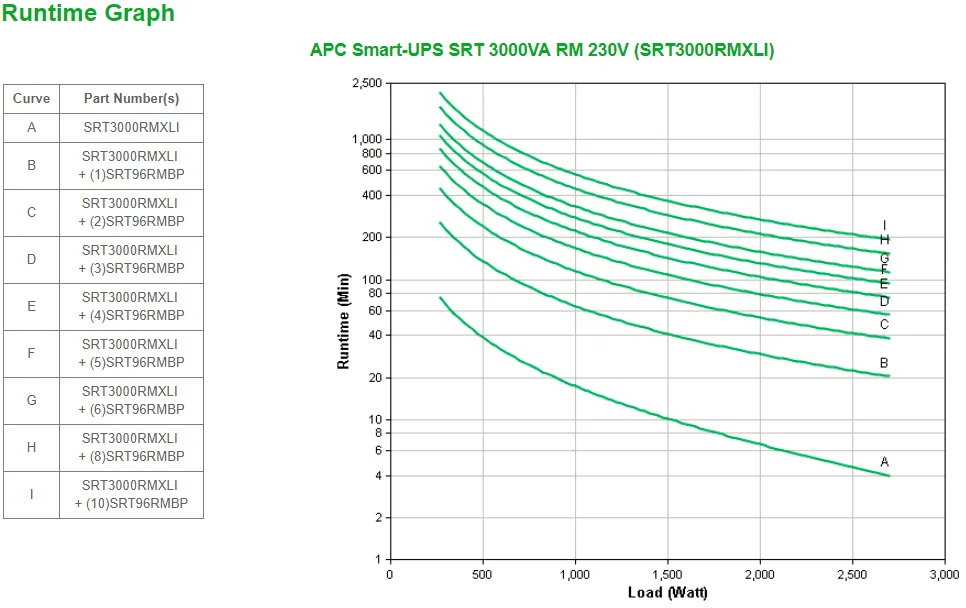

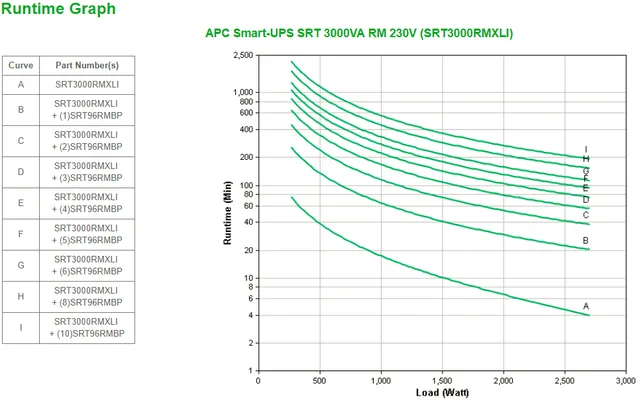

- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 11.8 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Battery replacement
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Packaging content
- Management card included
- No
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 635 mm
- Height
- 85 mm
- Weight
- 31.3 kg
Packaging data
- Package width
- 599 mm
- Package depth
- 871 mm
- Package height
- 246 mm
- Package weight
- 39.3 kg
Logistics data
- Products per pallet
- 6 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 4993.35
Other features
- Output voltage
- 230 V
About the APC SMART-UPS ON-LINE 3KVA
3000 VA / 2700 W online UPS (rackmount). Battery technology: Sealed Lead Acid (VRLA); AC outlet types: C13 coupler, C19 coupler; typical backup time at half load: 11.8 min.
Frequently asked questions
Something else?
How much does the APC SMART-UPS ON-LINE 3KVA cost in Singapore?
The suggested retail price (SRP) is from S$6,463.70 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC SMART-UPS ON-LINE 3KVA?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC SMART-UPS ON-LINE 3KVA?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
