9103-83800APC Smart-UPS RT 15kVA 230V Internationa SRTG15KXLI
15,000 VA · Online double-conversion · Tower/Rack convertible
Part numberSRTG15KXLI
SRP S$23,276.95
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 15 kVA
- Output power
- 15000 W
- Waveform
- Sine
- Input operation voltage (min)
- 160 V
- Input operation voltage (max)
- 415 V
- Input frequency
- 40/70 Hz
- Output operation voltage (max)
- 230 V
- Output frequency
- 50/60 Hz
- Output frequency regulation
- 0.1 Hz
- Maximum current
- 66 A
- Number of output phases
- 3
- Efficiency
- 93%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Input current Total Harmonic Distortion (THD)
- 5%
- Noise level
- 58 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- Hard Wire 5-wire (3PH + N + G)
- Power plug
- Hardwire
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 192 V
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 4 h
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 7U
- Product colour
- Black

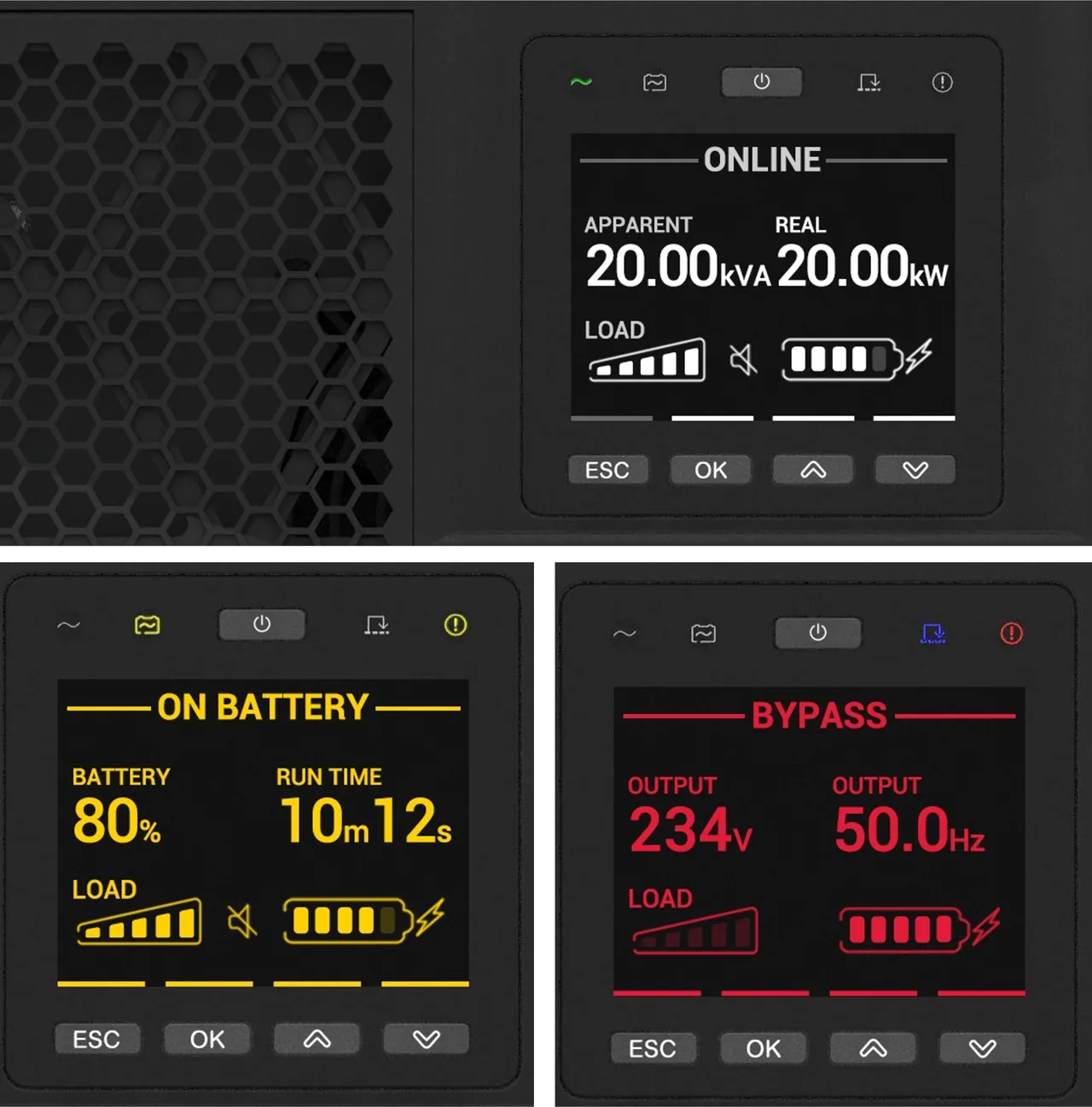

- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 2011.68 m
- Non-operating altitude
- 0 - 15240 m
Packaging content
- Cables included
- RS-232
- Management card included
- Yes
Weight & dimensions
- Width
- 440 mm
- Depth
- 700 mm
- Height
- 306 mm
- Weight
- 142.5 kg
Packaging data
- Package width
- 590 mm
- Package depth
- 790 mm
- Package height
- 535 mm
- Package weight
- 156.7 kg
Logistics data
- Harmonized System (HS) code
- 85078000

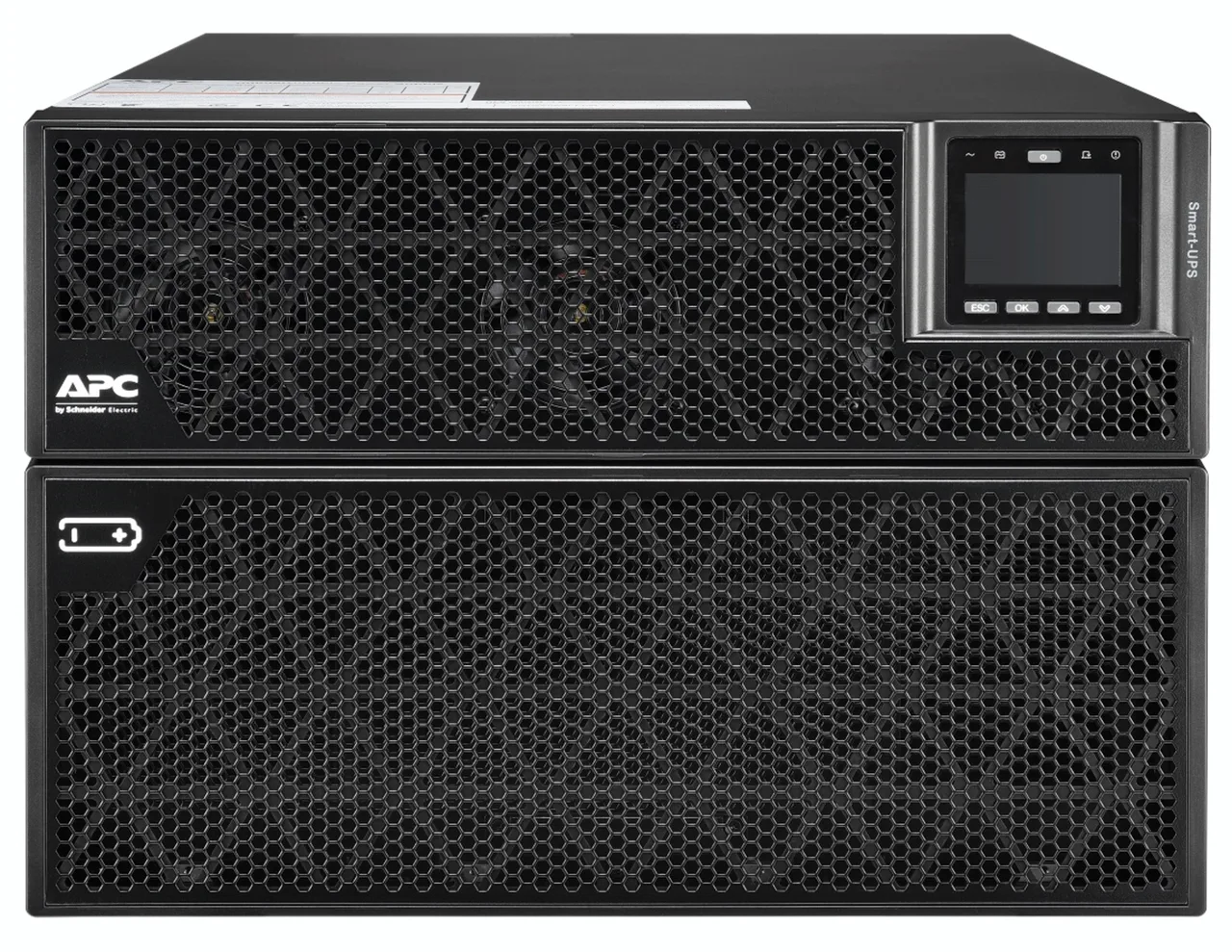

About the APC Smart-UPS RT 15kVA 230V Internationa
APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 15 kVA - 7U Rack/Tower - 4 Hour Recharge - 230 V AC Input - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output - Pure Sine Wave - Serial Port
Frequently asked questions
Something else?
How much does the APC Smart-UPS RT 15kVA 230V Internationa cost in Singapore?
The suggested retail price (SRP) is from S$23,276.95 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC Smart-UPS RT 15kVA 230V Internationa?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC Smart-UPS RT 15kVA 230V Internationa?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
