9103-83800APC Smart-UPS RT 20kVA 230V Internationa SRTG20KXLI
20,000 VA · Online double-conversion · Tower/Rack convertible
Part numberSRTG20KXLI
SRP S$26,094.60
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 20 kVA 20000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 192 V
- Rackmount/Tower Black
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 20 kVA
- Output power
- 20000 W
- Waveform
- Sine
- Input operation voltage (min)
- 160 V
- Input operation voltage (max)
- 415 V
- Input frequency
- 40/70 Hz
- Output operation voltage (max)
- 230 V
- Output frequency
- 50/60 Hz
- Output frequency regulation
- 0.1 Hz
- Maximum current
- 87 A
- Number of output phases
- 3
- Efficiency
- 93%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Input current Total Harmonic Distortion (THD)
- 5%
- Noise level
- 58 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- Hard Wire 3-wire (1PH + N + G), Hard Wire 5-wire (3PH + N + G)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 192 V
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 4 h
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Product colour
- Black

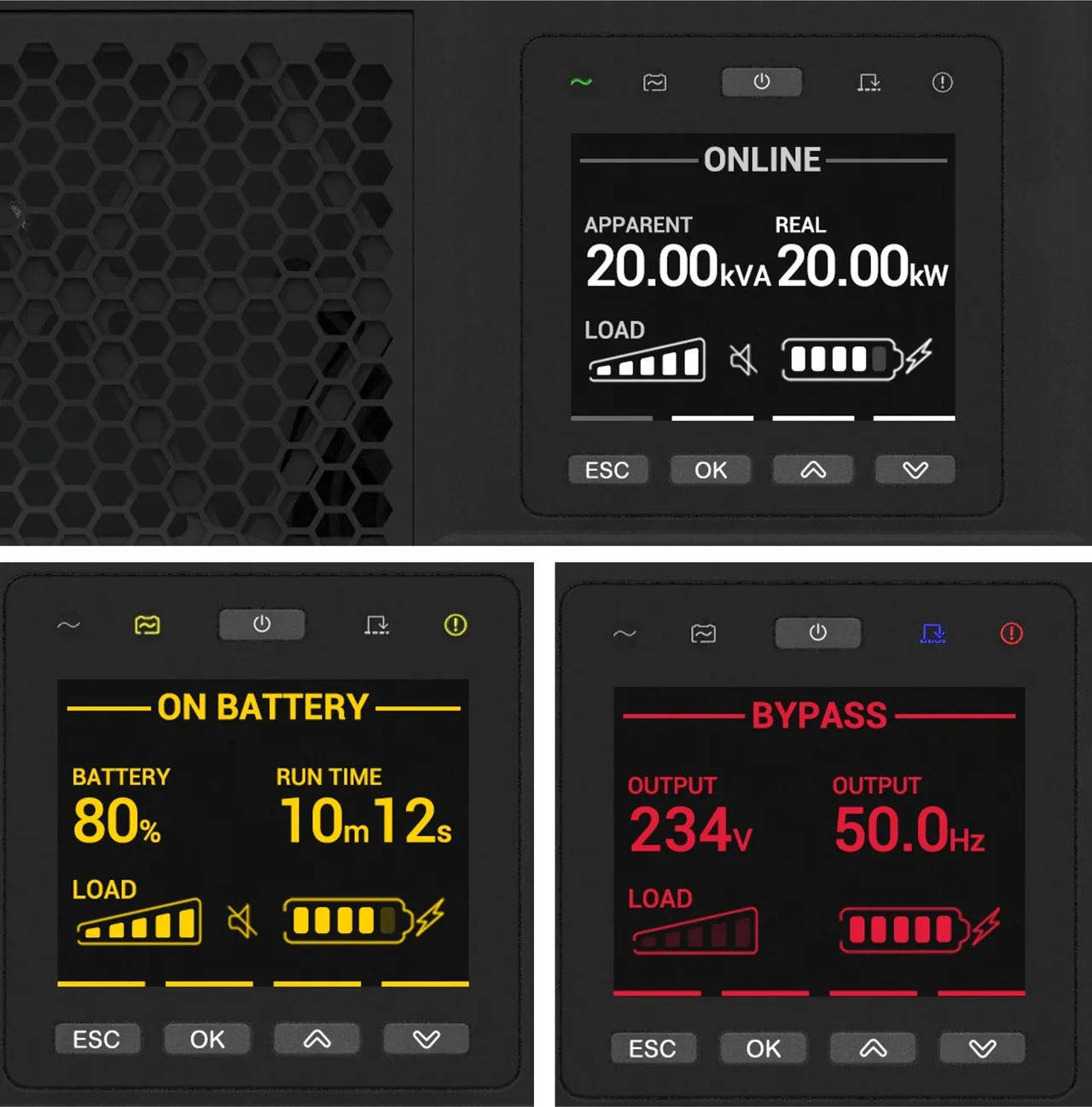

- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 2011.68 m
- Non-operating altitude
- 0 - 15240 m
Packaging content
- Cables included
- RS-232
- Management card included
- Yes
Weight & dimensions
- Width
- 440 mm
- Depth
- 700 mm
- Height
- 306 mm
- Weight
- 142.5 kg
Packaging data
- Package width
- 590 mm
- Package depth
- 790 mm
- Package height
- 535 mm
Logistics data
- Harmonized System (HS) code
- 85078000
About the APC Smart-UPS RT 20kVA 230V Internationa
20000 VA / 20000 W online UPS (rackmount/tower). Battery technology: Sealed Lead Acid (VRLA); AC outlet types: Hard Wire 3-wire (1PH + N + G), Hard Wire 5-wire (3PH + N + G).
