9103-83800APC Smart-UPS RT 5kVA 230V SRTG5KXLI
5,000 VA · Online double-conversion · Tower/Rack convertible
Part numberSRTG5KXLI
SRP S$7,477.40
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 5 kVA 5000 W
- Waveform: Sine
- 3 AC outlet(s)
- Sealed Lead Acid (VRLA) 96 V
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 5000 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 285 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 600 J
- Crest factor
- 3:1
- ECO mode
- Yes
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm

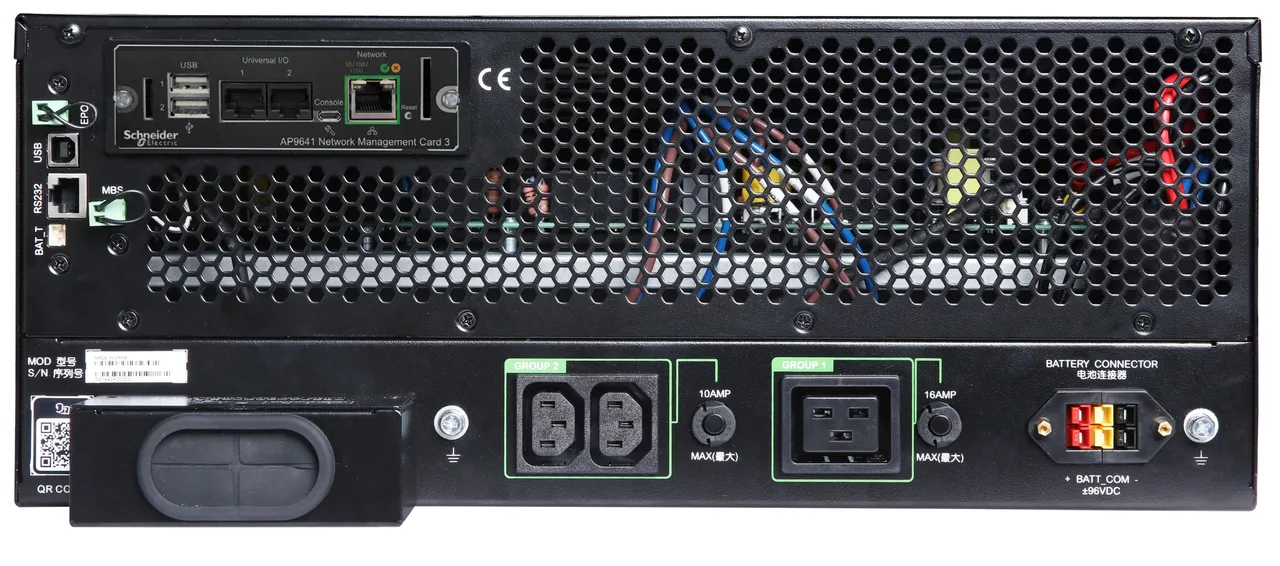

Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- AC outlets quantity
- 3 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Emergency Power Off (EPO) connector
- Yes
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 96 V
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 4 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Compact
- Rack capacity
- 4U
- Product colour
- Black

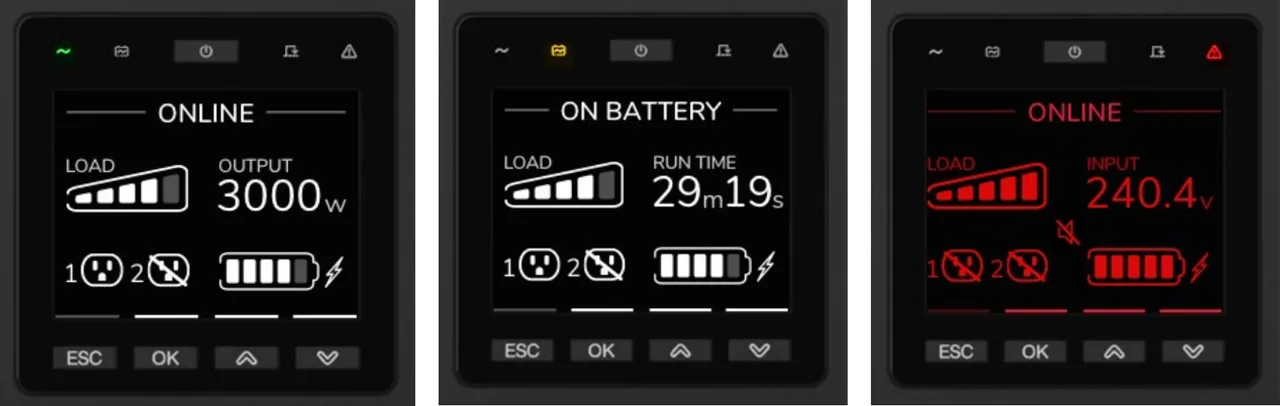

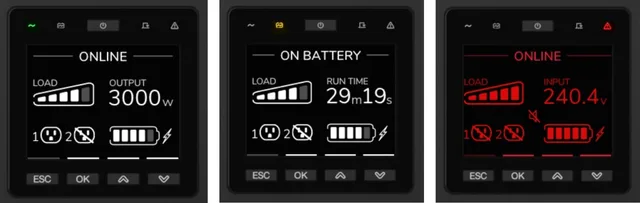

- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 2011 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Certification
- CE, EN/IEC 62040-1
Packaging content
- Management card included
- Yes
Weight & dimensions
- Width
- 440 mm
- Depth
- 620 mm
- Height
- 178 mm
- Weight
- 51.9 kg
Packaging data
- Package width
- 590 mm
- Package depth
- 790 mm
- Package height
- 275 mm
- Package weight
- 59 kg
About the APC Smart-UPS RT 5kVA 230V
The APC Smart-UPS RT 5kVA 230V is a UPS with a Double-conversion (Online) topology, an output power capacity of 5 kVA and an output power of 5000 W. Its waveform is Sine, its surge energy rating is 600 J and its noise level is 55 dB. It has 3 AC outlet(s) of C13 coupler and C19 coupler types, a USB port, a serial interface and 1 Ethernet LAN (RJ-45) port. Its battery technology is Sealed Lead Acid (VRLA), its form factor is Compact and its product colour is Black.
Frequently asked questions
Something else?
How much does the APC Smart-UPS RT 5kVA 230V cost in Singapore?
The suggested retail price (SRP) is from S$7,477.40 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC Smart-UPS RT 5kVA 230V?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC Smart-UPS RT 5kVA 230V?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
