9103-83800APC Smart-UPS SRT 10000VA 230V SRT10KXLI
10,000 VA · Online double-conversion · Tower/Rack convertible
Part numberSRT10KXLI
SRP S$15,494.35
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 10 kVA 10000 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 10 kVA
- Output power
- 10000 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 476 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 50/60 Hz
- Surge energy rating
- 480 J
- Number of output phases
- 1
- Efficiency
- 94.6%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- Hardwire
- AC outlets quantity
- 10 AC outlet(s)
- Number of output IEC jumpers
- 3
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 1805 VAh

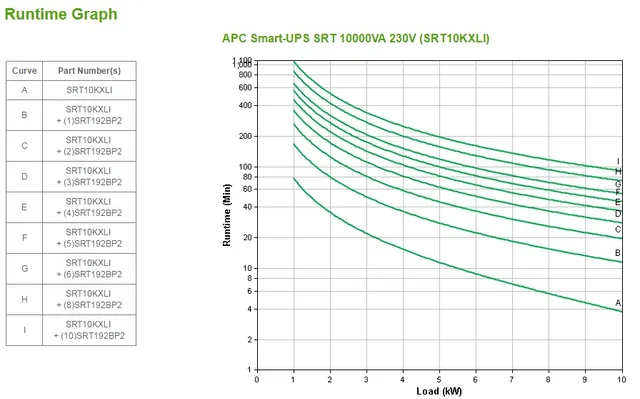

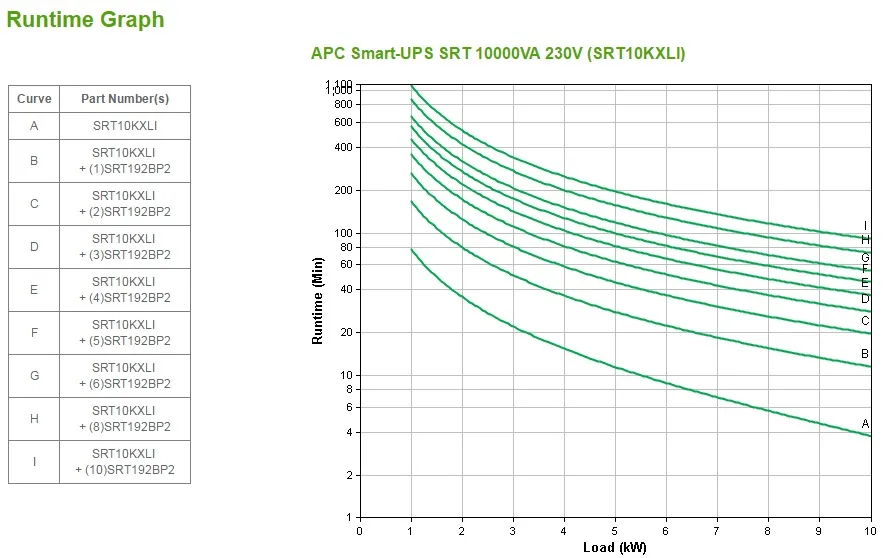

- Typical backup time at full load
- 3.8 min
- Typical backup time at half load
- 11.5 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 1.5 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Product colour
- Black
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
Packaging content
- Cables included
- USB cable
- Management card included
- Yes
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 263 mm
- Depth
- 715 mm
- Height
- 432 mm
- Weight
- 111.8 kg
Packaging data
- Temperature sensor
- Yes
- Warranty card
- Yes
- Software CD
- Yes
- Package width
- 600 mm
- Package depth
- 1000 mm
- Package height
- 461 mm
- Package weight
- 126.8 kg
Logistics data
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 22851.99
Other features
- Interface
- RJ-45 10/100 Base-T
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
- Packaging content
- Web/SNMP Management Card
About the APC Smart-UPS SRT 10000VA 230V
This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables.
