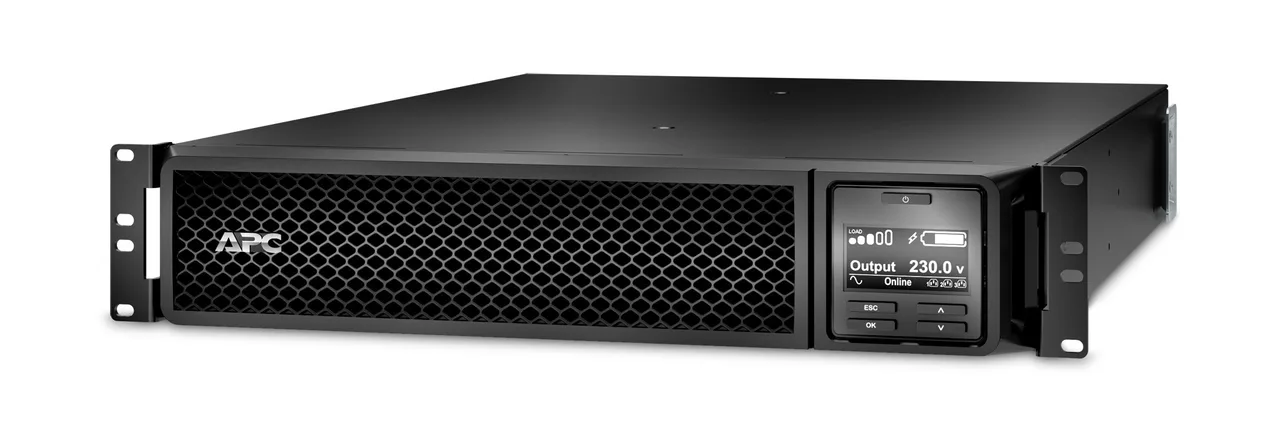

APC Smart-UPS SRT 2200VA RM 230V SRT2200RMXLI
2,200 VA · Online double-conversion · Tower/Rack convertible
Part numberSRT2200RMXLI
SRP S$4,763.30
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- 2200 VA / 1980 W output
- Online topology
- 10 AC outlets
- Rackmount/Tower
- Sealed Lead Acid (VRLA)
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 2.2 kVA
- Output power
- 1980 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 50/60 Hz
- Surge energy rating
- 340 J
- Efficiency
- 92.2%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Web-based management
- Yes
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 10 AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 367 VAh
- Number of batteries supported
- 1
- Typical backup time at full load
- 3.9 min
- Typical backup time at half load
- 11.6 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 50 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
- Management card included
- No
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR, Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 584 mm
- Height
- 85 mm
- Weight
- 25 kg
Packaging data
- Bracket
- Yes
- Software CD
- Yes
- Package width
- 599 mm
- Package depth
- 810 mm
- Package height
- 246 mm
- Package weight
- 34 kg
Logistics data
- Products per pallet
- 12 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 3656.4
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
About the APC Smart-UPS SRT 2200VA RM 230V
2200 VA / 1980 W online UPS (rackmount/tower) with 10 AC outlets. Battery technology: Sealed Lead Acid (VRLA); AC outlet types: C13 coupler, C19 coupler; typical backup time at half load: 11.6 min.
