Eaton In stock 9PX3000IRT2U UPS
3,000 VA · Online double-conversion · Tower/Rack convertible
9103-83800SRP S$9,717.35
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 4500 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 50/60 Hz
- Surge energy rating
- 480 J
- Efficiency
- 94.1%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
Ports & interfaces

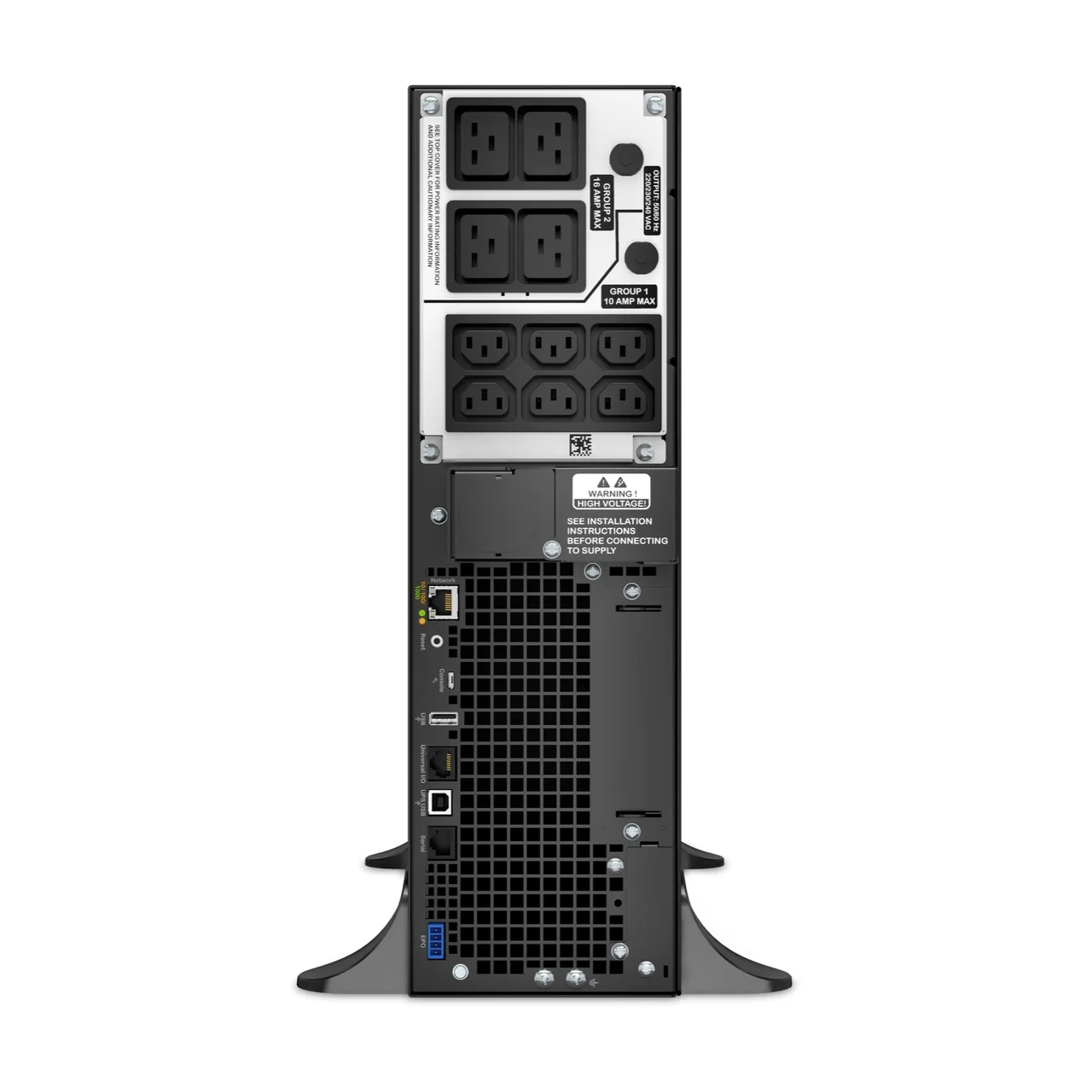

- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- Hardwire
- AC outlets quantity
- 12 AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 845 VAh

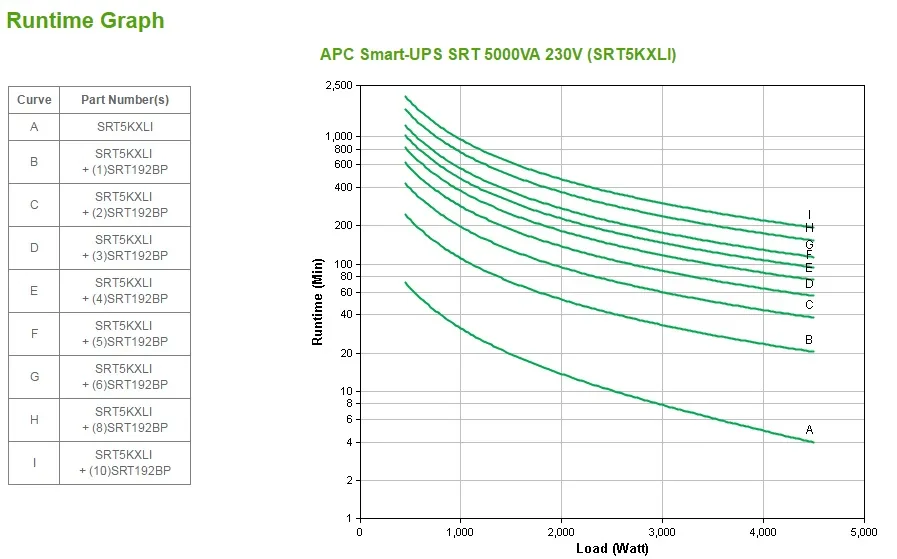

- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 11.8 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 1.5 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Status
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Packaging content
- Cables included
- USB cable
- Management card included
- Yes
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 130 mm
- Depth
- 719 mm
- Height
- 432 mm
- Weight
- 54.4 kg
Packaging data
- Temperature sensor
- Yes
- Warranty card
- Yes
- Software CD
- Yes
- Package width
- 610 mm
- Package depth
- 960 mm
- Package height
- 330 mm
- Package weight
- 63.6 kg
Logistics data
- Products per pallet
- 6 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 8386.06
Other features
- Packaging content
- Comms cable Removable support feet Web/SNMP Management Card
About the APC Smart-UPS SRT 5000VA 230V
The APC Smart-UPS SRT 5000VA 230V is a UPS with a double-conversion (Online) topology, an output power capacity of 5 kVA and an output power of 4500 W. Its waveform is Sine, its surge energy rating is 480 J, its efficiency is 94.1% and its noise level is 55 dB. It has 12 AC outlet(s) with C13 coupler and C19 coupler outlets, a USB port, a serial interface of type RJ-45 and SmartSlot. Its battery technology is Sealed Lead Acid (VRLA) with a capacity of 845 VAh, a typical backup time at full load of 4 min and a battery recharge time of 1.5 h. Its display type is LCD and its colour is Black.
Frequently asked questions
Something else?
How much does the APC Smart-UPS SRT 5000VA 230V cost in Singapore?
The suggested retail price (SRP) is from S$9,717.35 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC Smart-UPS SRT 5000VA 230V?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC Smart-UPS SRT 5000VA 230V?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
