9103-83800APC Smart-UPS SRT 5000VA RM 208/230V HW SRT5KRMXLW-HW
5,000 VA · Online double-conversion · Rackmount
Part numberSRT5KRMXLW-HW
SRP S$9,390.35
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 5 kVA 4500 W
- Waveform: Sine
- Sealed Lead Acid (VRLA)
- Rackmount Black
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 4500 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 50/60 Hz
- Surge energy rating
- 480 J
- Efficiency
- 93.8%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- Hard Wire 3-wire (2PH + G)
- Power plug
- Hardwire
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 845 VAh
- Number of batteries supported
- 1
- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 11.8 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 1.5 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 3U
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Status
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL
Packaging content
- Management card included
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 432 mm
- Depth
- 719 mm
- Height
- 130 mm
- Weight
- 55.8 kg
Packaging data
- Package width
- 610 mm
- Package depth
- 960 mm
- Package height
- 330 mm
- Package weight
- 68 kg
Logistics data
- Products per pallet
- 6 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 8442.38
Other features
- Number of phases
- 3
- Battery type
- APCRBC140
- Output connections
- 1x Hard Wire 3-wire (2PH + G) 1x Hard Wire 3-wire (H N + G)

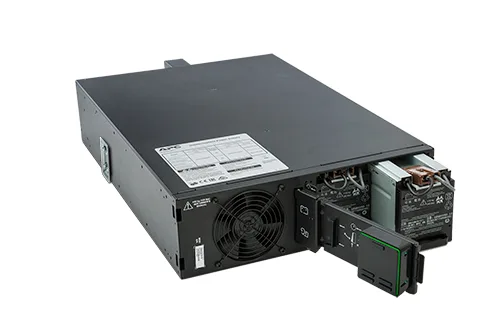

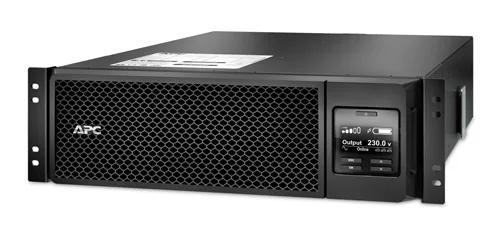

About the APC Smart-UPS SRT 5000VA RM 208/230V HW
This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets.
Frequently asked questions
Something else?
How much does the APC Smart-UPS SRT 5000VA RM 208/230V HW cost in Singapore?
The suggested retail price (SRP) is from S$9,390.35 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC Smart-UPS SRT 5000VA RM 208/230V HW?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC Smart-UPS SRT 5000VA RM 208/230V HW?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
