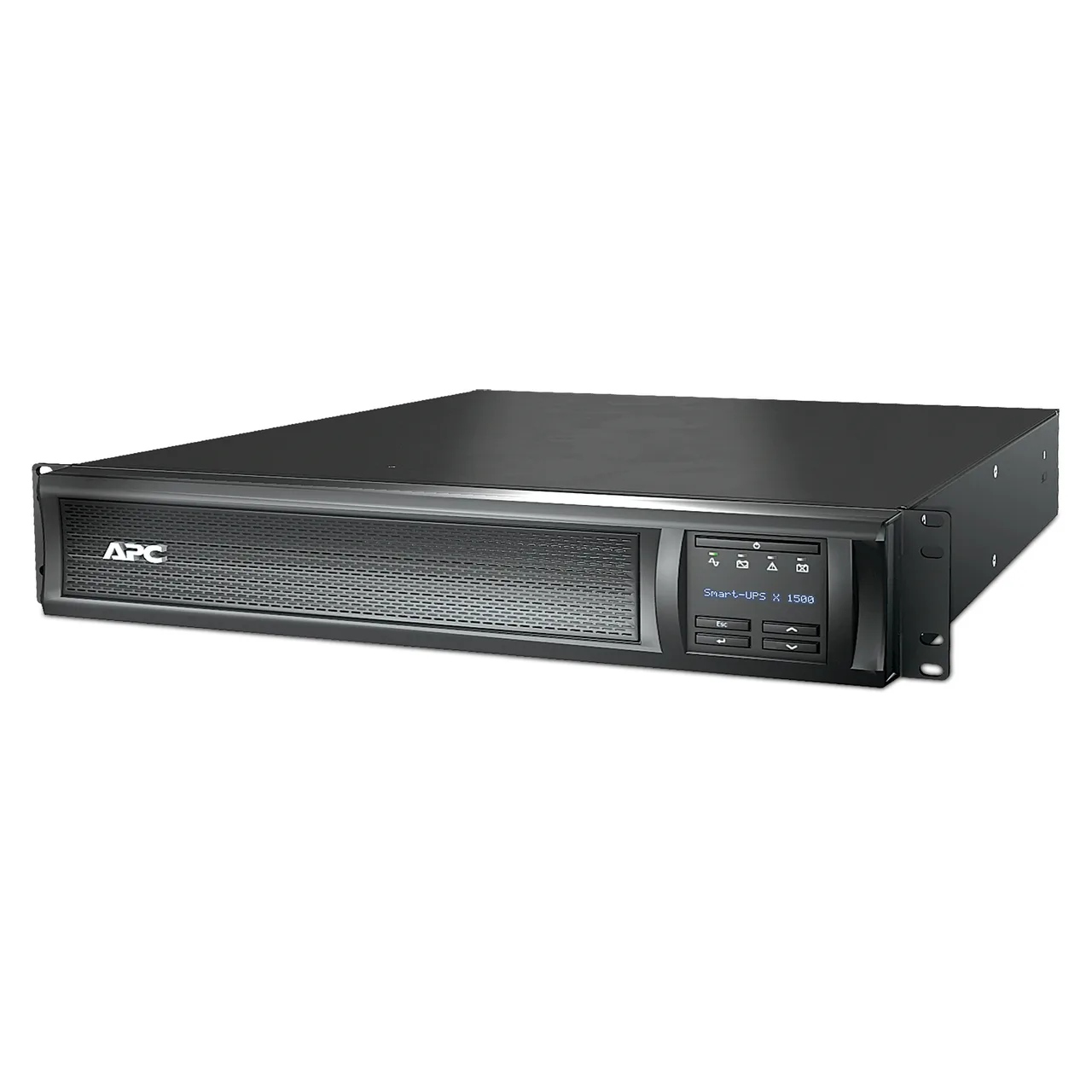

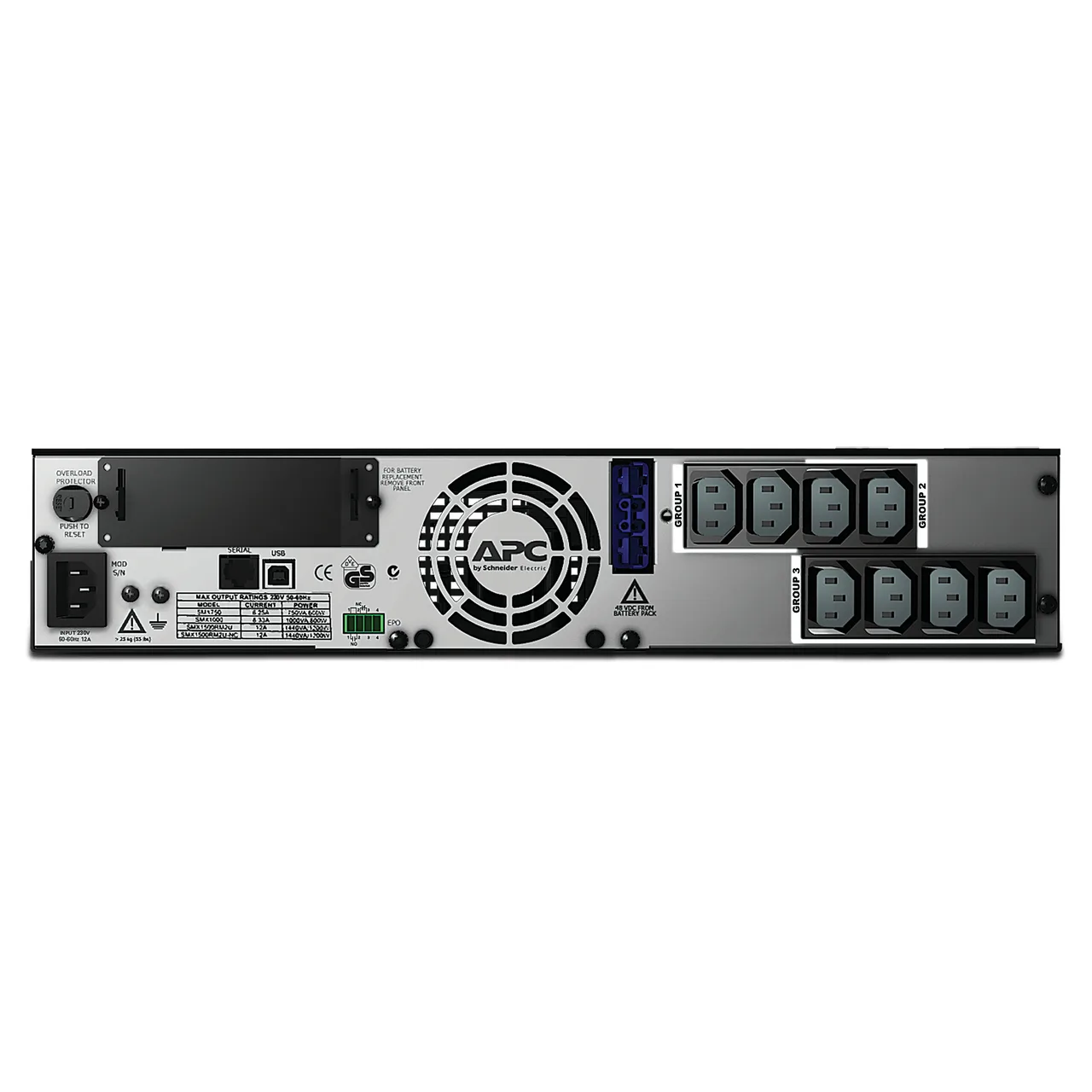

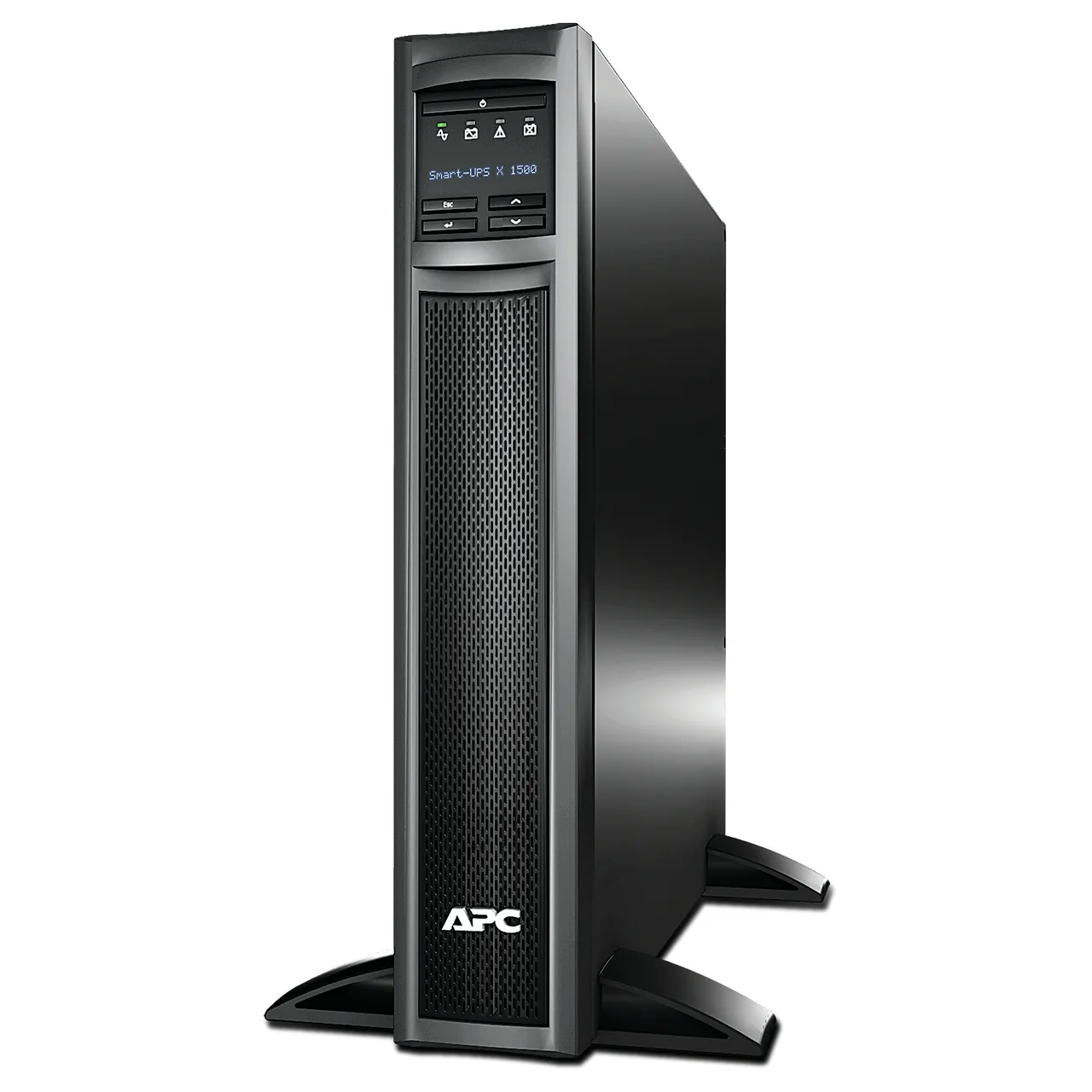

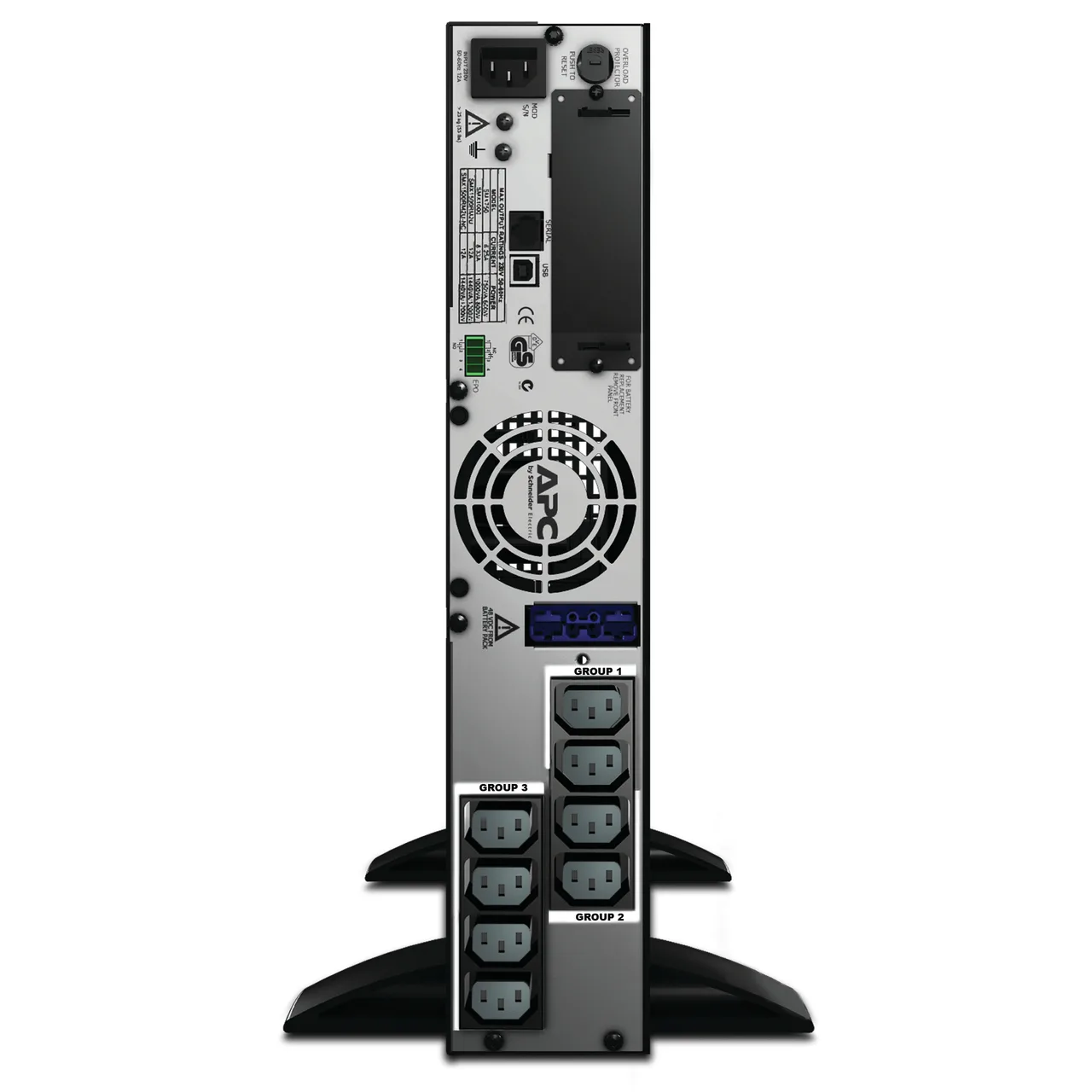

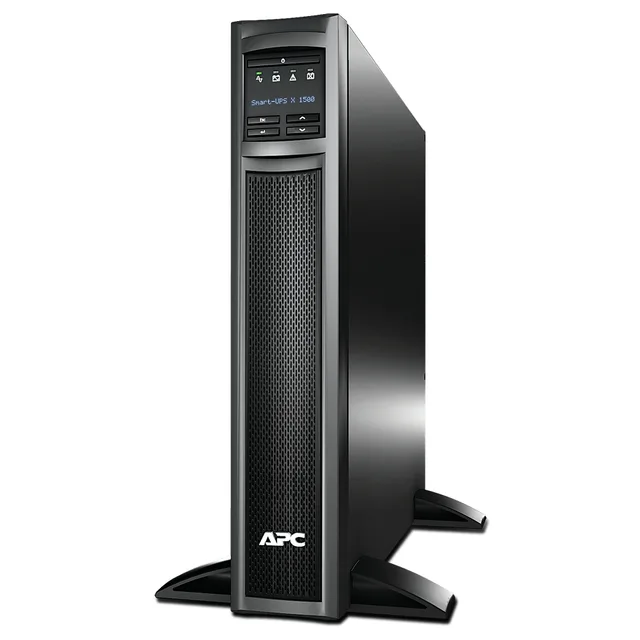

9103-73784APC Smart-UPS X 1500VA Rack/Tower LCD 23 SMX1500RMI2U
1,500 VA · Line-interactive · Tower/Rack convertible
Part numberSMX1500RMI2U
SRP S$3,166.45
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Line-Interactive
- 1.5 kVA 1200 W
- Waveform: Sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.5 kVA
- Output power
- 1200 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output frequency regulation
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 645 J
- Efficiency
- 98.5%
- Emergency Power Off (EPO)
- Yes
- Noise level
- 40 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- C13 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 8 AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 311 VAh

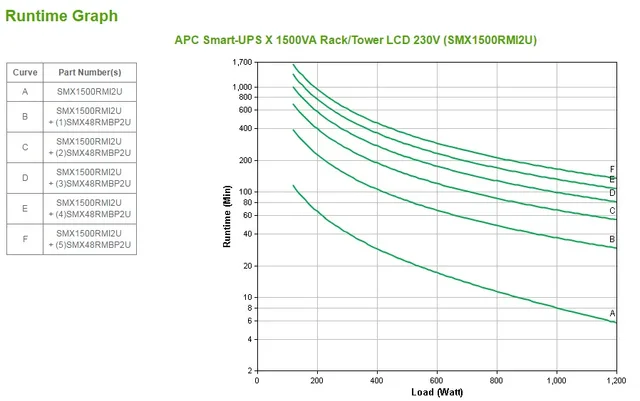

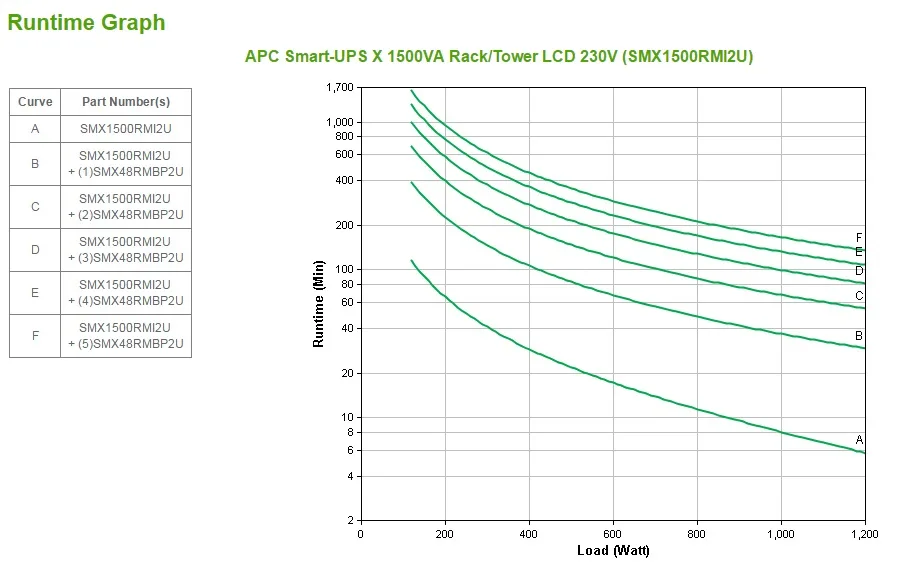

- Typical backup time at full load
- 5.8 min
- Typical backup time at half load
- 17.2 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 2U
- Cable length
- 1.83 m
- Product colour
- Black
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Management card included
- No
- Quick installation guide
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 490 mm
- Height
- 89 mm
- Weight
- 24.8 kg
Packaging data
- Software CD
- Yes
- Package width
- 589 mm
- Package depth
- 620 mm
- Package height
- 246 mm
- Package weight
- 30 kg
Logistics data
- Products per pallet
- 8 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 1419.64
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
- Packaging content
- Removable support feet
About the APC Smart-UPS X 1500VA Rack/Tower LCD 23
1500 VA / 1200 W line-interactive UPS (rackmount/tower) with 8 AC outlets. Battery technology: Sealed Lead Acid (VRLA); AC outlet types: C13 coupler; typical backup time at half load: 17.2 min.
