9103-83800APC Smart-UPS X 3000VA Short Depth Tower SMX3000HV
3,000 VA · Line-interactive · Tower/Rack convertible
Part numberSMX3000HV
SRP S$7,412
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Line-Interactive
- 3 kVA 2700 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 140 V
- Input operation voltage (max)
- 280 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 645 J
- Hold time (min)
- 2 ms
- Hold time (max)
- 10 ms
- Efficiency
- 98.5%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 10 AC outlet(s)
- Number of output IEC jumpers
- 2
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 738 VAh

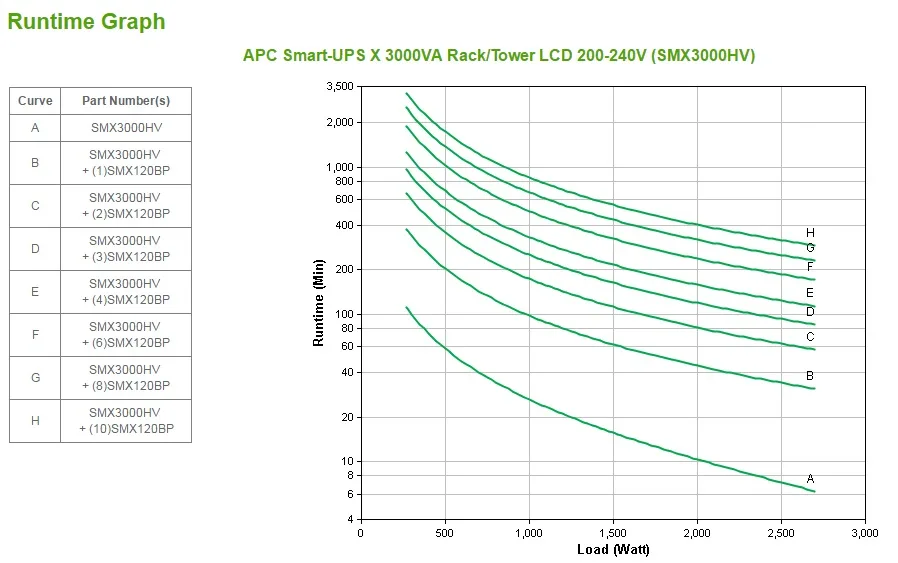

- Typical backup time at full load
- 6.25 min
- Typical backup time at half load
- 18 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 4U
- Cable length
- 1.83 m
- Product colour
- Black, Stainless steel
- Display type
- LCD
- LED indicators
- Status
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Management card included
- No
- Manual
- Yes
- Quick installation guide
- Yes
Weight & dimensions
- Width
- 178 mm
- Depth
- 483 mm
- Height
- 432 mm
- Weight
- 38.6 kg
Packaging data
- Software CD
- Yes
- Package width
- 586 mm
- Package depth
- 633 mm
- Package height
- 330 mm
- Package weight
- 47.7 kg
Logistics data
- Products per pallet
- 6 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 2447.6
Other features
- Nominal output voltage
- 230 V
About the APC Smart-UPS X 3000VA Short Depth Tower
3000 VA / 2700 W line-interactive UPS (rackmount/tower) with 10 AC outlets. Battery technology: Sealed Lead Acid (VRLA); AC outlet types: C13 coupler, C19 coupler; typical backup time at half load: 18 min.
Frequently asked questions
Something else?
How much does the APC Smart-UPS X 3000VA Short Depth Tower cost in Singapore?
The suggested retail price (SRP) is from S$7,412 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC Smart-UPS X 3000VA Short Depth Tower?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC Smart-UPS X 3000VA Short Depth Tower?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
