Eaton In stock 9PX3000IRT2U UPS
3,000 VA · Online double-conversion · Tower/Rack convertible
9103-83800SRP S$16,933.15
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Specifications
Features
- Output power capacity
- 16 kVA
- Output power
- 11200 W
- Waveform
- Sine
- Number of input phases
- 1
- Number of output phases
- 1
- Single-phase input voltage supported
- 240,220 V
- Three-phase input voltage supported
- 220,380,400,415 V
- Emergency Power Off (EPO)
- Yes
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- IEC 60320
Battery
- Battery replacement accessibility
- End-user
- Typical backup time at full load
- 7.5 min
- Typical backup time at half load
- 20.3 min
- Battery recharge time
- 3 h
- Replacement battery cartridge
- SYBT5
Design
- Product colour
- Black, Silver
- Compatibility
- C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- SCIP number
- 2d54512b-134b-4bf3-ab6e-849ecf1e3919
- Preferred mounting position
- lower
- Take-back system
- No
- Packaging without single use plastic
- No
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- C-Tick; CE; GOST; VDE
Power
- Input current (max)
- 73 A
Weight & dimensions
- Width
- 472 mm
- Depth
- 688 mm
- Height
- 838 mm
- Weight
- 286.8 kg
Packaging data
- Package weight
- 340.4 kg
Logistics data
- Customs product code (TARIC)
- 8504409590
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 45918.3243238434
- Country of origin
- Philippines
Other features
- I/O ports

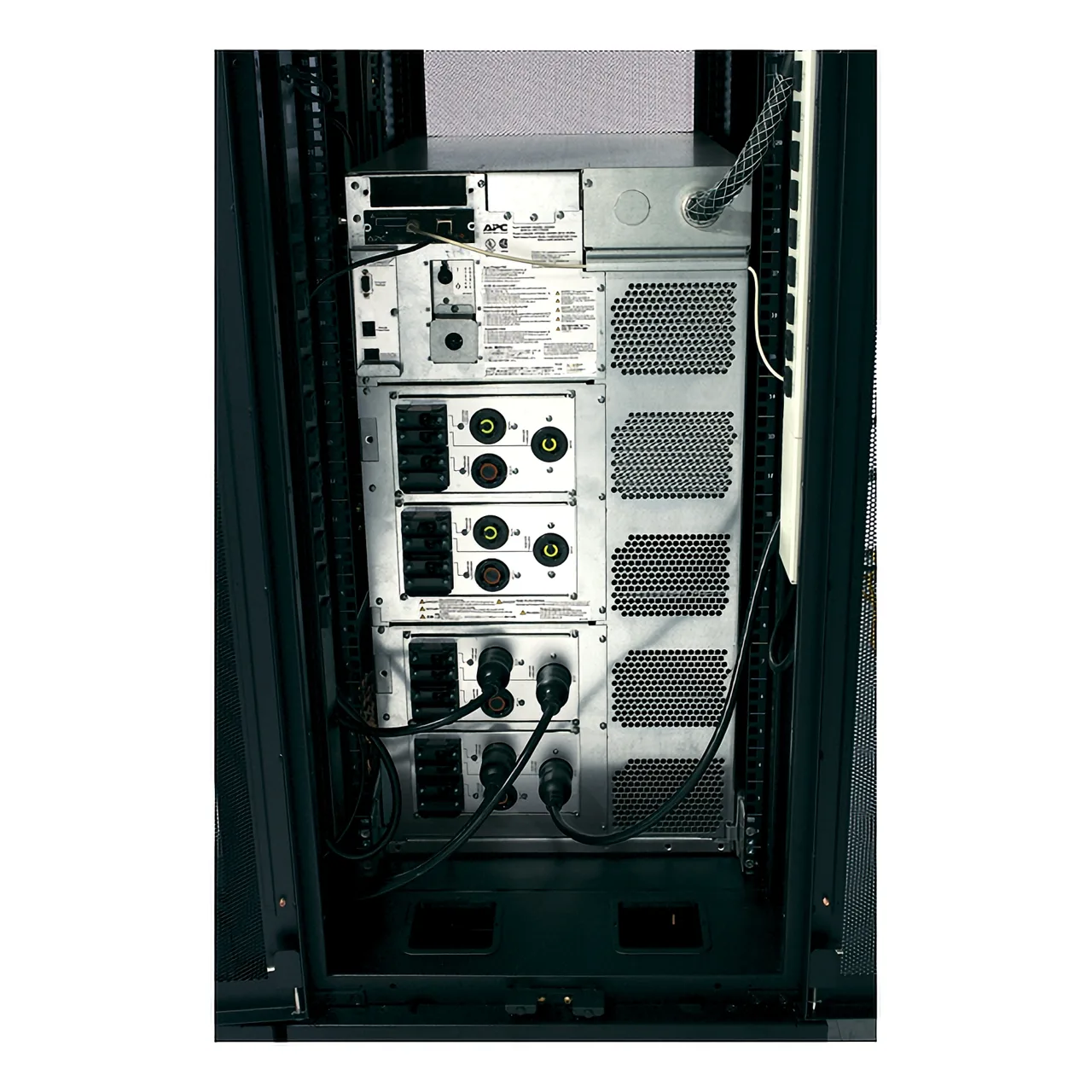

- (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
- Battery type
- Lead-Acid
- Interface

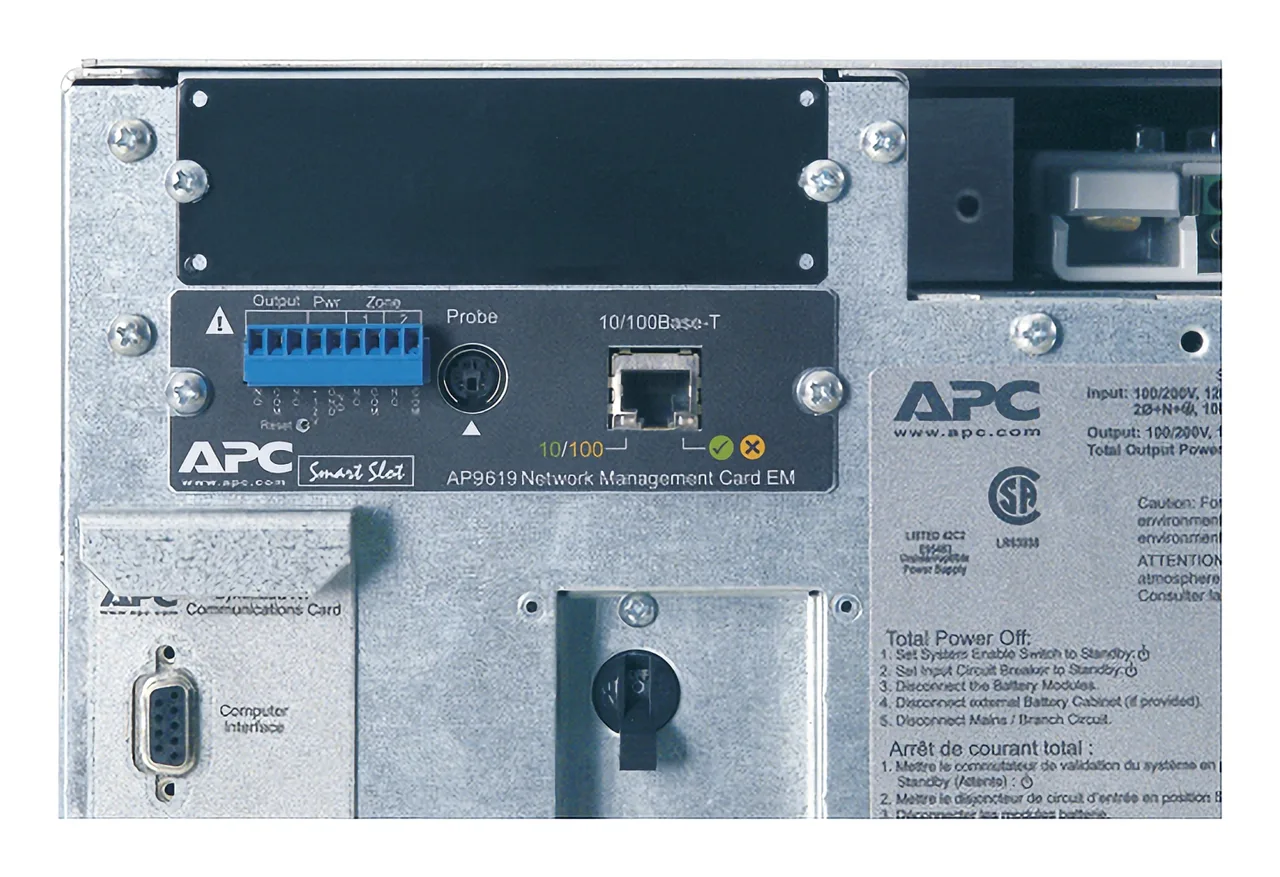

- DB-9 RS-232, Smart-Slot
- Output connections
- (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
- Input connection type
- Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH)
- 472 x 688 x 838 mm
- Output voltage note
- 220: 230, 240
- Nominal input voltage
- 230 V
- Output connection type
- hard wire 3-wire (H N + E) for 1 zone(s); 8 IEC 60320C13; 10 IEC 60320C19
- Output voltage
- 220 V
- Mounting
- front
- Package dimensions (WxDxH)
- 599 x 997 x 1054 mm

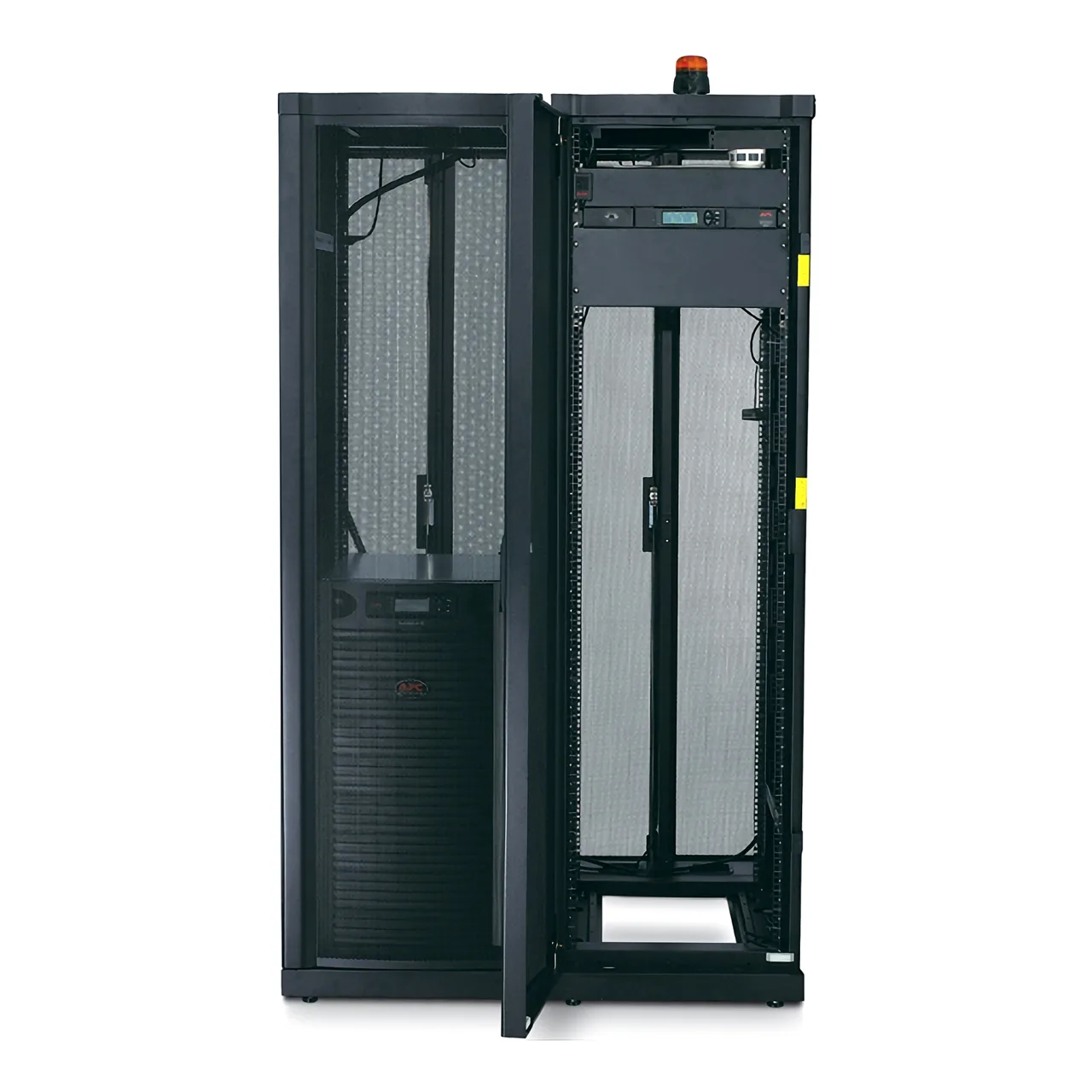

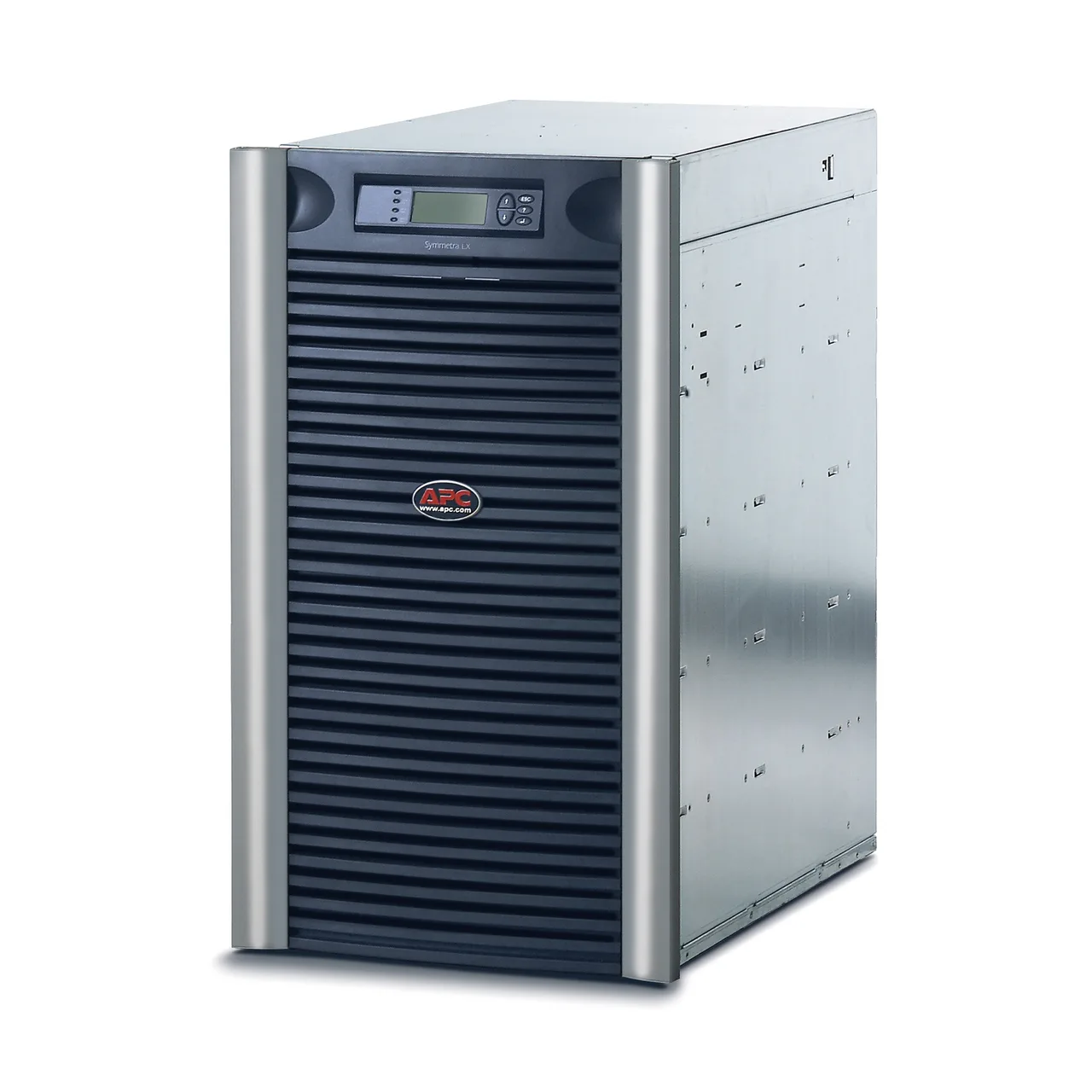

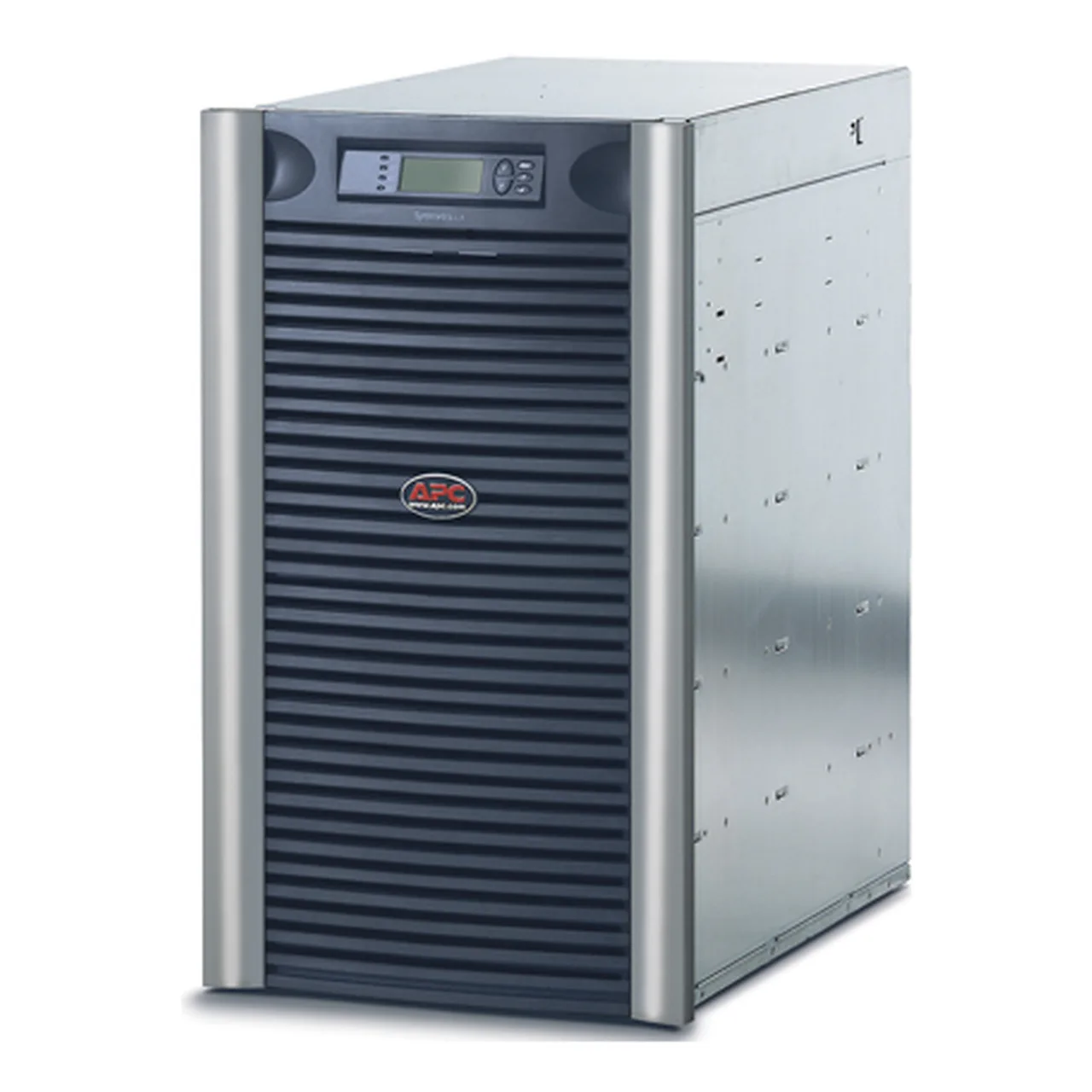

About the APC SYMMETRA LX 16kVA N+1 Rack-mount Fra
AC outlet types: hard wire 3-wire (H N + E) for 1 zone(s); 8 IEC 60320C13; 10 IEC 60320C19; typical backup time at half load: 20.3 min.
Frequently asked questions
Something else?
How much does the APC SYMMETRA LX 16kVA N+1 Rack-mount Fra cost in Singapore?
The suggested retail price (SRP) is from S$16,933.15 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC SYMMETRA LX 16kVA N+1 Rack-mount Fra?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC SYMMETRA LX 16kVA N+1 Rack-mount Fra?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
