SRP S$40,166.50
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Other configurations
2 more Symmetra LX 16kVA Scalable to 16kVA configurations
| Part number | Price | Stock | Open |
|---|---|---|---|
| SYA16K16I | SRP S$40,166.50 | Order on request | |
| SYA16K16RMI | SRP S$42,161.20 | Order on request | |
| SYA16K16IXR | SRP S$54,369.20 | Order on request |
Specifications
Features
- Output power capacity
- 16 kVA
- Output power
- 11200 W
- Waveform
- Sine
- Number of input phases
- 1
- Number of output phases
- 1
- Single-phase input voltage supported
- 240,220 V
- Three-phase input voltage supported
- 220,380,400,415 V
- Emergency Power Off (EPO)
- Yes
Ports & interfaces
- AC outlet types
- Hardwire
Battery
- Battery replacement accessibility
- End-user
- Typical backup time at full load
- 7.5 min
- Typical backup time at half load
- 20.3 min
- Battery recharge time
- 3 h
- Replacement battery cartridge
- SYBT5
Design
- Product colour
- Black, Silver
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- SCIP number
- 2d54512b-134b-4bf3-ab6e-849ecf1e3919
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- C-Tick; CE; GOST; VDE
Power
- Input current (max)
- 73 A
Weight & dimensions
- Width
- 483 mm
- Depth
- 726 mm
- Height
- 937 mm
- Weight
- 307.7 kg
Logistics data
- Customs product code (TARIC)
- 8504409590
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 45880.3030683655
- Country of origin
- Philippines
Other features
- I/O ports

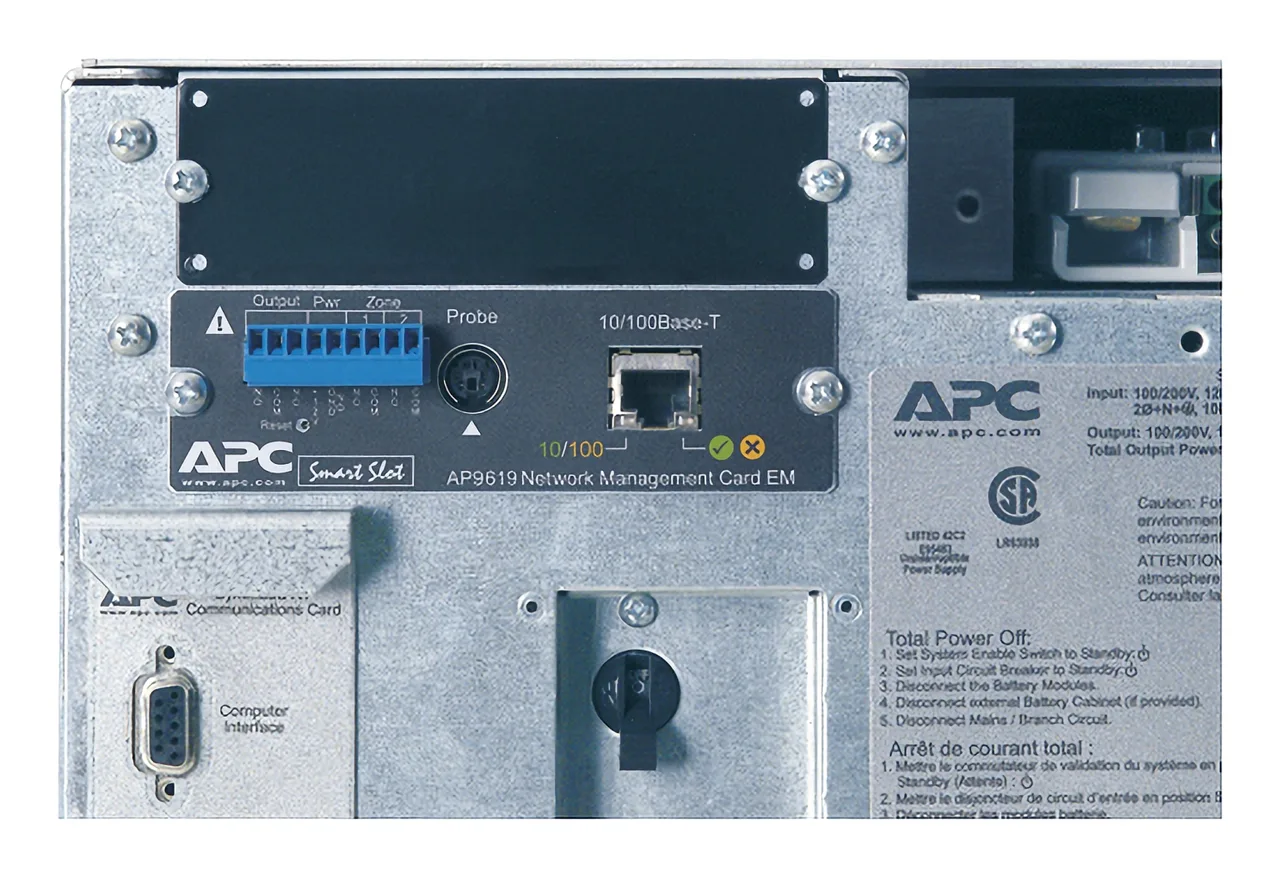

- Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
- Battery type
- Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
- Interface
- DB-9 RS-232, Smart-Slot
- Output connections
- (1) Hard Wire 3-wire (H N + G)
- Input connection type
- Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH)
- 480 x 730 x 940 mm
- Nominal output voltage
- 230 V
- Output voltage note
- Configurable for 220: 230 or 240 nominal output voltage
- Output connection type
- hard wire 3-wire (H N + E) for 1 zone(s)
- Output voltage
- 220 V
- Mounting
- front

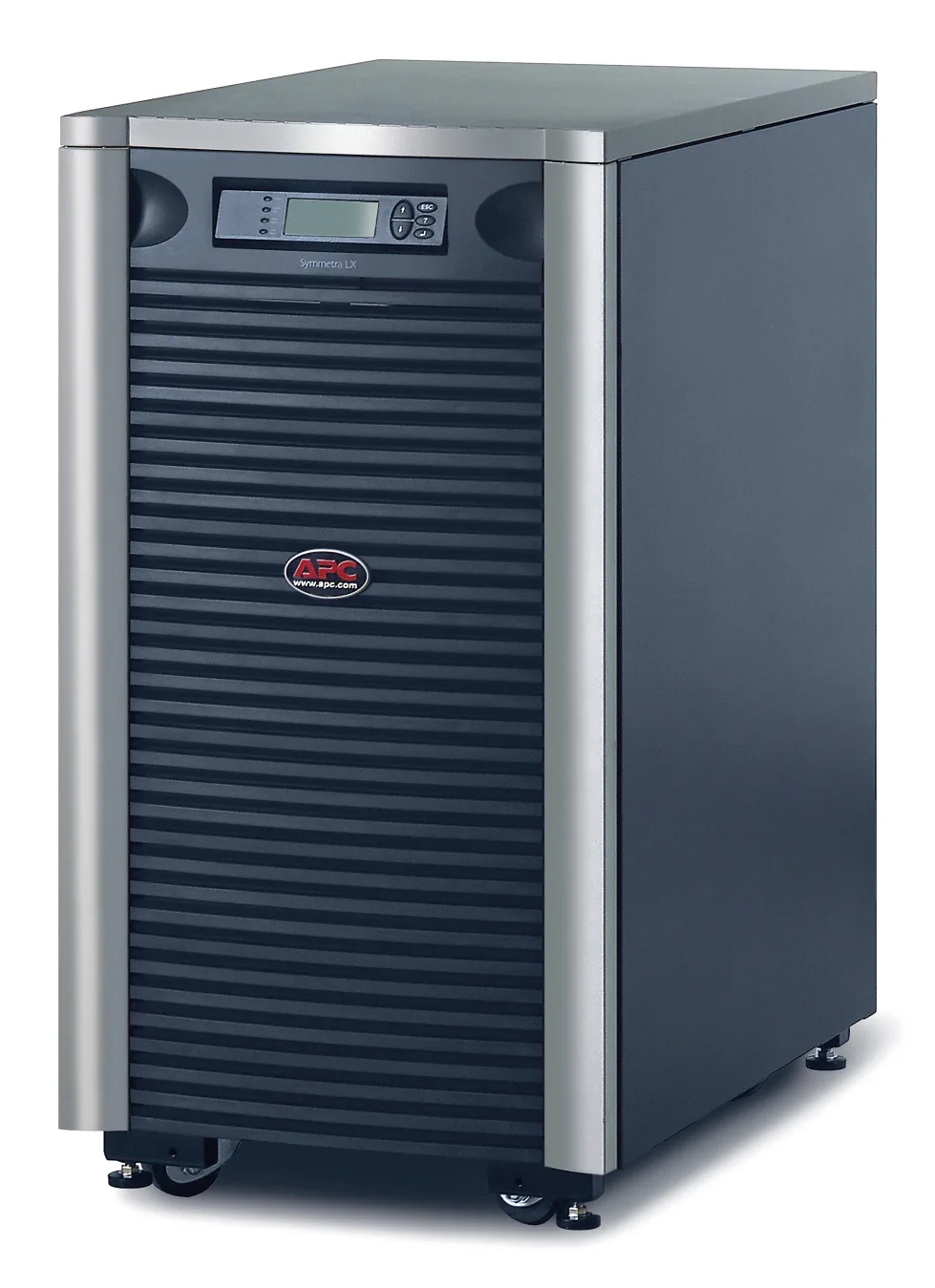

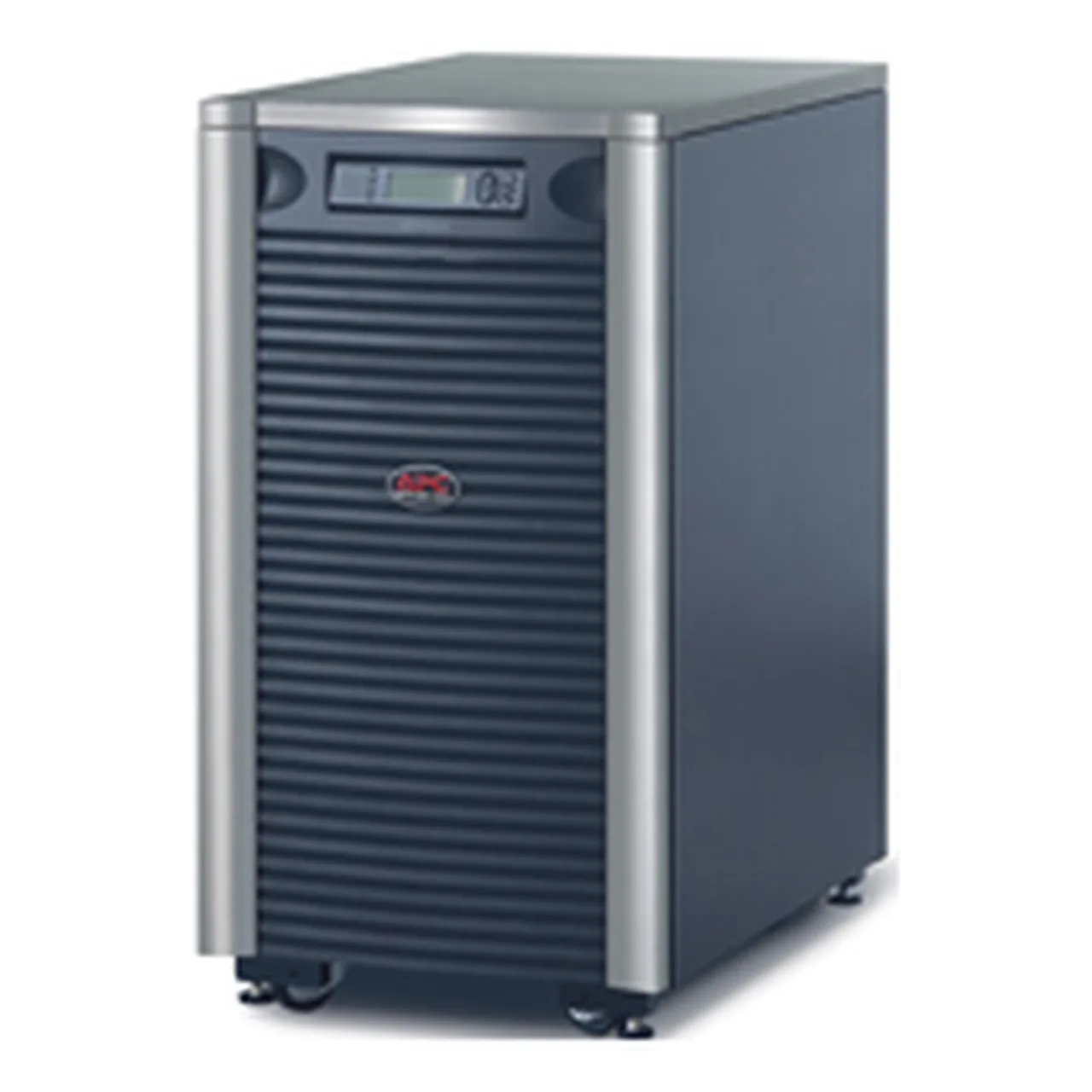

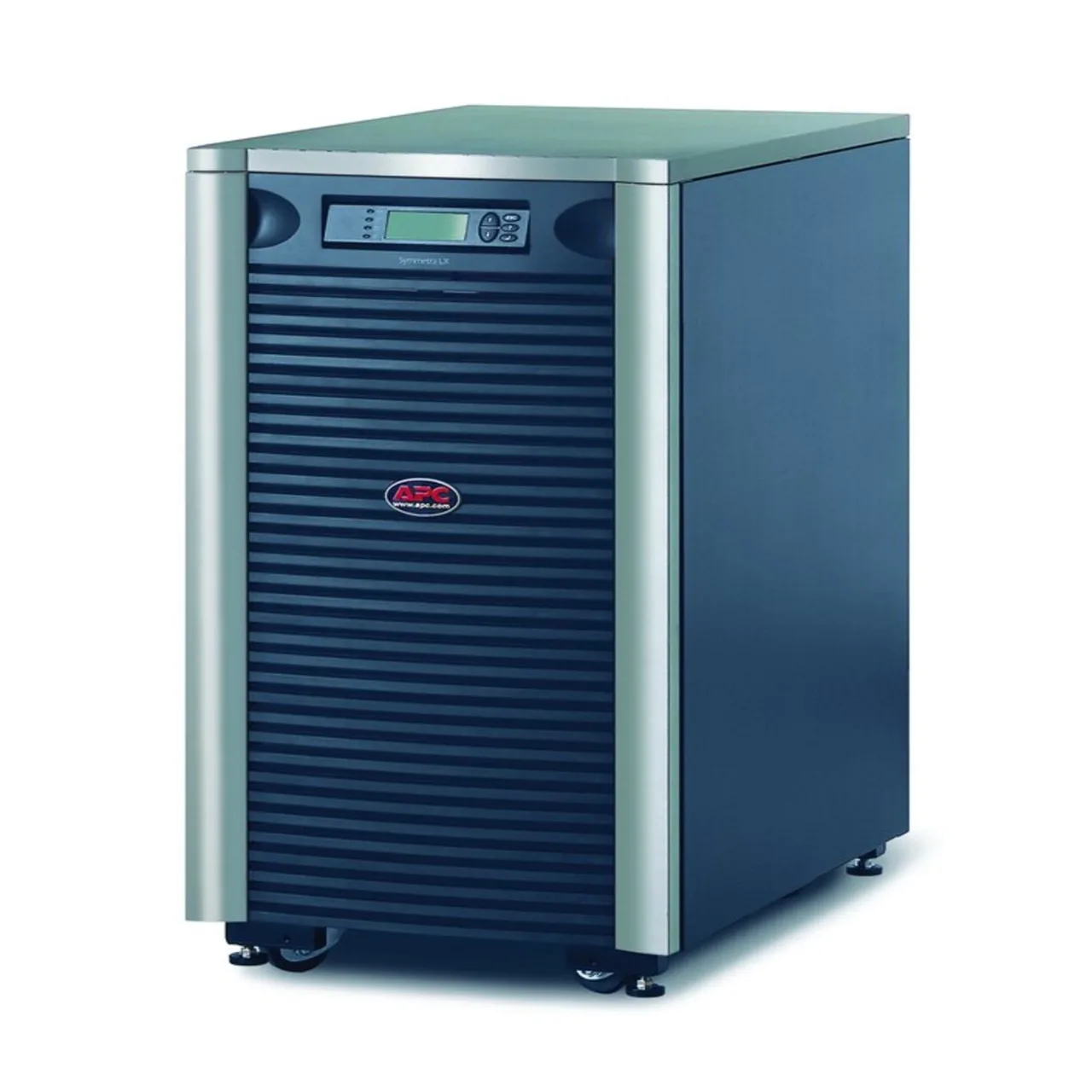

About the APC Symmetra LX 16kVA Scalable to 16kVA
The APC Symmetra LX 16kVA Scalable to 16kVA is a UPS with an output power capacity of 16 kVA and an output power of 11200 W. Its waveform is Sine, and it has 1 input phase and 1 output phase. It has Emergency Power Off (EPO), a typical backup time at full load of 7.5 min and at half load of 20.3 min, and a battery recharge time of 3 h. Its product colour is Black, Silver, and it weighs 307.7 kg.
Frequently asked questions
Something else?
How much does the APC Symmetra LX 16kVA Scalable to 16kVA cost in Singapore?
The suggested retail price (SRP) is from S$40,166.50 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the APC Symmetra LX 16kVA Scalable to 16kVA?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the APC Symmetra LX 16kVA Scalable to 16kVA?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
