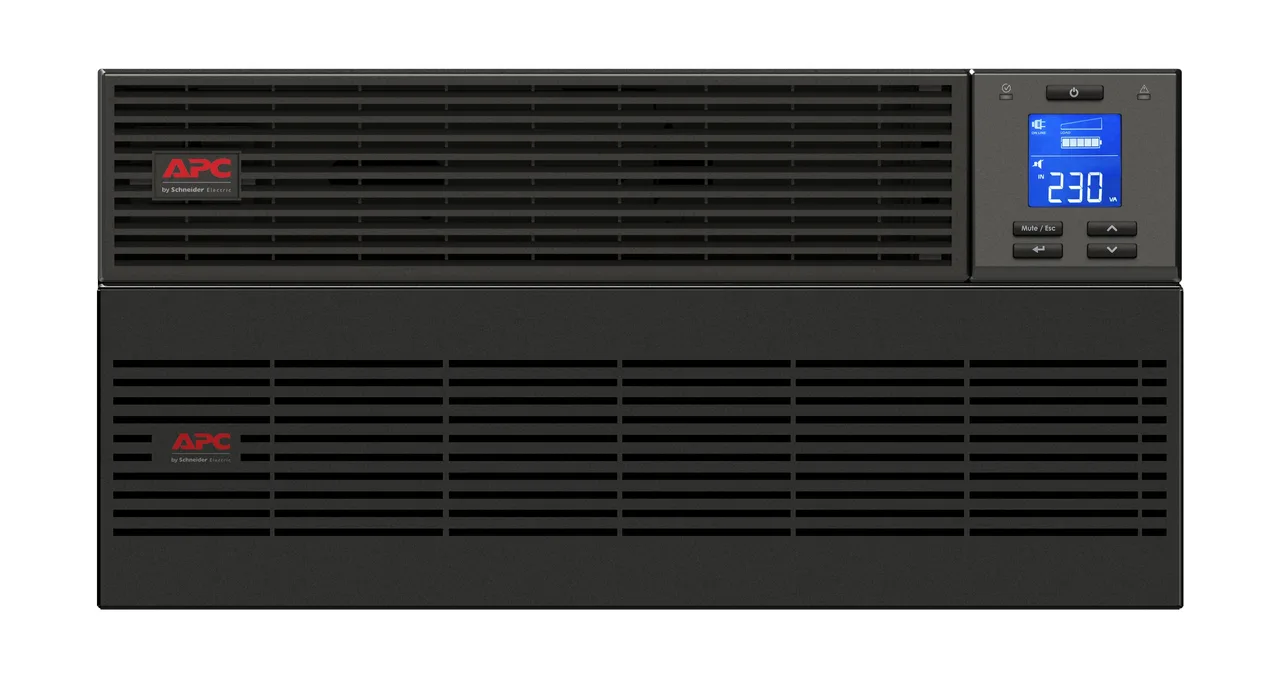

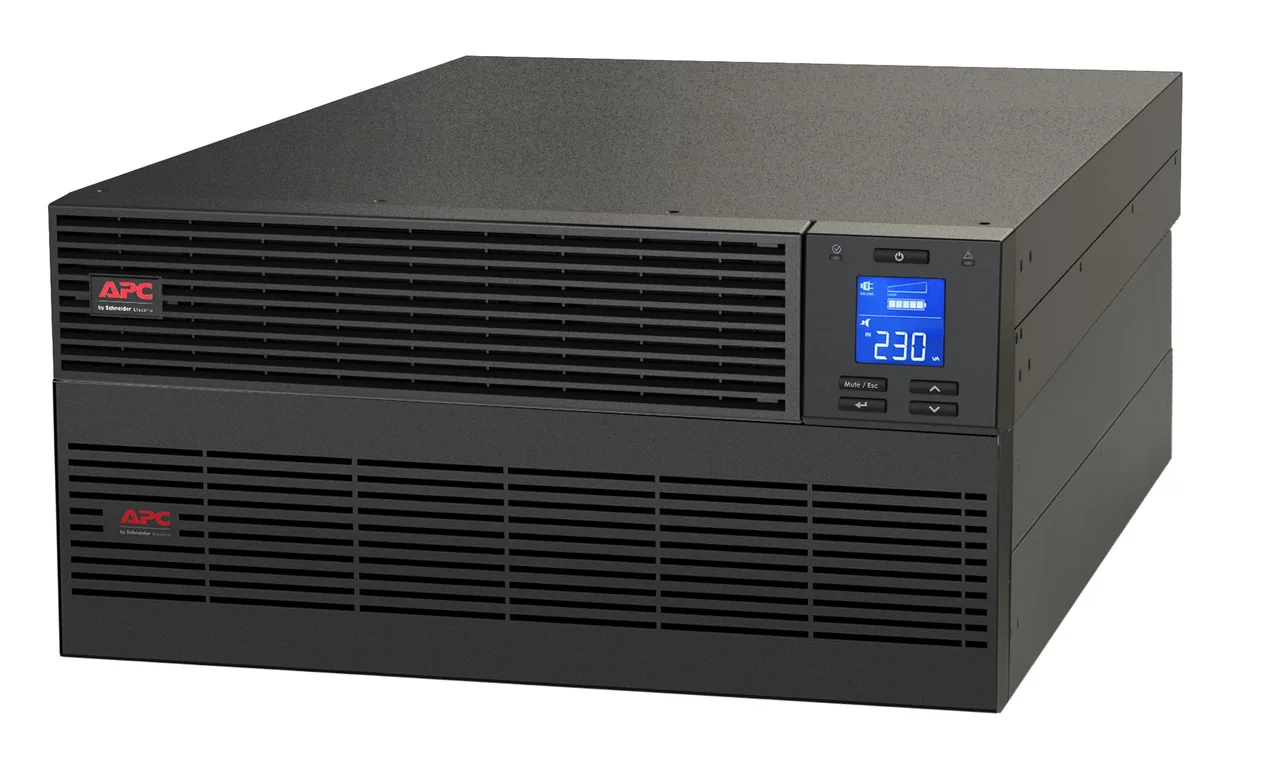

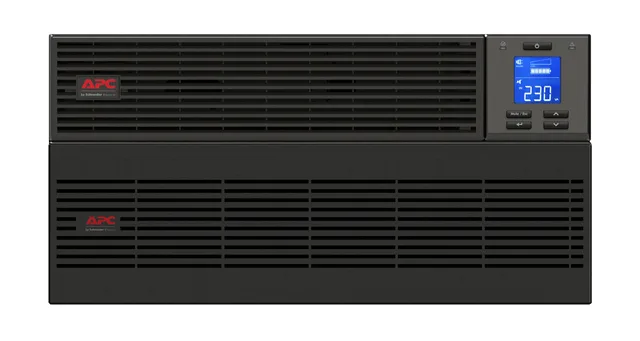

9103-83800APC SRV10KRILRK Online UPS (10000 VA / 10000 W, 5U Rack)
10,000 VA · Online double-conversion · Rackmount
Part numberSRV10KRILRK
SRP S$8,284
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- 10000 VA / 10000 W output
- Online topology
- Rackmount
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 10 kVA
- Output power
- 10000 W
- Waveform
- Pure sine
- Input operation voltage (min)
- 110 V
- Input operation voltage (max)
- 300 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 600 J
- Crest factor
- 3:1
- ECO mode
- Yes
- Emergency Power Off (EPO)
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm
- Auto-restart
- Yes

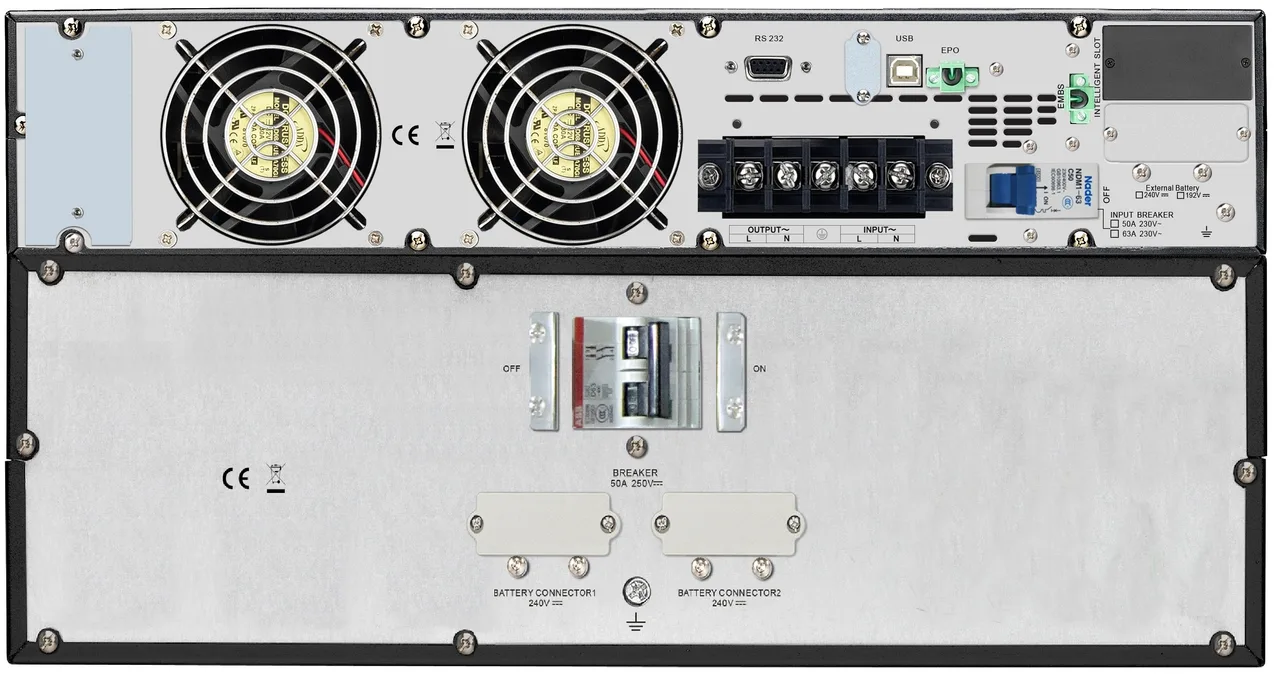

Ports & interfaces
- AC outlet types
- Hard Wire 3-wire (1PH + N + G)
- USB port
- Yes
- Serial interface
- Yes
- Emergency Power Off (EPO) connector
- Yes
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 5U
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 14763 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, IEC 62040-1-1, IEC 62040-1-2 REACH
Packaging content
- Cables included
- USB cable
- Management card included
- No
- Manual
- Yes
Weight & dimensions
- Width
- 438 mm
- Depth
- 615 mm
- Height
- 220 mm
- Weight
- 78 kg
Packaging data
- Package weight
- 79 kg
Logistics data
- Harmonized System (HS) code
- 85078000
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
About the APC SRV10KRILRK Online UPS (10000 VA / 10000 W, 5U Rack)
The APC SRV10KRILRK is an online UPS with a double-conversion (Online) topology, an output power capacity of 10 kVA and an output power of 10000 W. Its waveform is pure sine, and it has a surge energy rating of 600 J. It offers ECO mode, Emergency Power Off (EPO), audible alarm(s) and auto-restart. It is a rackmount unit with a rack capacity of 5U, a width of 438 mm, a depth of 615 mm, a height of 220 mm and a weight of 78 kg.
Frequently asked questions
Something else?
How much does the APC SRV10KRILRK Online UPS (10000 VA / 10000 W, 5U Rack) cost in Singapore?
The suggested retail price (SRP) is from S$8,284 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the SRV10KRILRK Online UPS (10000 VA / 10000 W, 5U Rack)?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the SRV10KRILRK Online UPS (10000 VA / 10000 W, 5U Rack)?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
