SRP S$924.32
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Specifications
Design
- PDU types
- Basic
- Type
- Single-phase
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- Power plug
- IEC 60309
- AC outlet types
- C13 coupler, C19 coupler
- I/O ports
- (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
- Input connection type
- IEC 309 32A
- Output connections
- (20) IEC 320 C13 (4) IEC 320 C19
Features
- Cable length
- 3050 m
Power
- Nominal input voltage
- 230 V
- Nominal output voltage
- 230 V
- Output voltage
- 230 V
- Load capacity
- 7680 VA
- Maximum input current per phase
- 32 A
- Maximum total current draw per phase
- 32 A
- Maximum power
- 7680 W
Operational conditions
- Operating temperature (T-T)
- -25 - 65 °C
- Storage temperature (T-T)
- 0 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 56 mm
- Depth
- 44 mm
- Height
- 1619 mm
- Weight
- 5.57 kg
Packaging data
- Package weight
- 6.48 kg
- Package width
- 152 mm
- Package depth
- 127 mm
- Package height
- 2134 mm

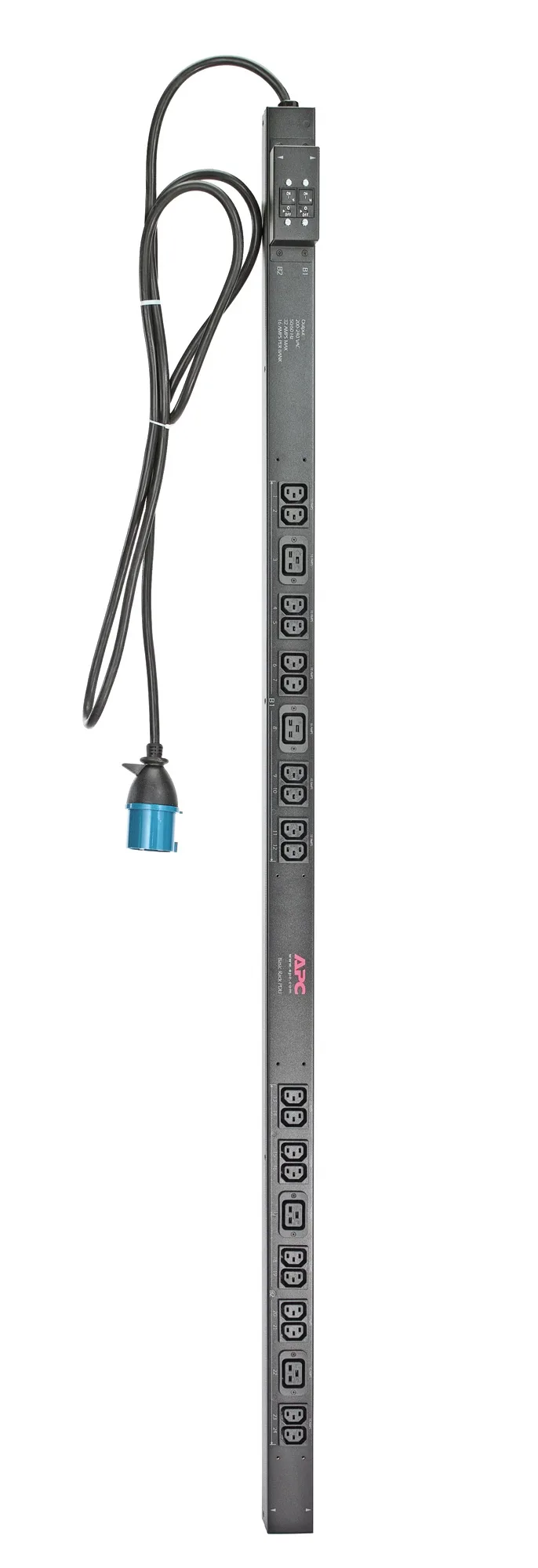

About the APC Rack PDU. Basic. Zero U. 32A. 230V. (20)
The APC Rack PDU is a basic, single-phase PDU with a rack capacity of 0U and vertical mounting, in black. It has 24 AC outlet(s) with C13 coupler and C19 coupler outlet types, and its input connection type is IEC 309 32A. Its nominal input voltage is 230 V, its nominal output voltage is 230 V, and its load capacity is 7680 VA. It measures 56 mm in width, 44 mm in depth and 1619 mm in height, with a weight of 5.57 kg.
Frequently asked questions
Something else?
How much does the APC Rack PDU. Basic. Zero U. 32A. 230V. (20) cost in Singapore?
The suggested retail price (SRP) is from S$924.32 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Rack PDU. Basic. Zero U. 32A. 230V. (20)?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Rack PDU. Basic. Zero U. 32A. 230V. (20)?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
