9103-73784Eaton 9SX 1000IR 230V RACKMOUNT 2U 9103-53900
1,000 VA · Online double-conversion · Rackmount
Part number9103-53900
SRP S$1,934.75
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 1 kVA 900 W
- 7 AC outlet(s)
- Rackmount Black
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 1 kVA
- Output power
- 900 W
- Input operation voltage (min)
- 190 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 40 - 70 Hz
- Output frequency
- 50/60 Hz
- Maximum current
- 10 A
- Noise level
- 41 dB
Ports & interfaces
- AC outlet types
- C13 coupler, C14 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 7 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface
- Yes
- Serial interface type
- RS-232
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Safety regulation & standards
- Safety
- IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
- Width
- 438 mm
- Depth
- 438 mm
- Height
- 86.5 mm
- Weight
- 15.7 kg

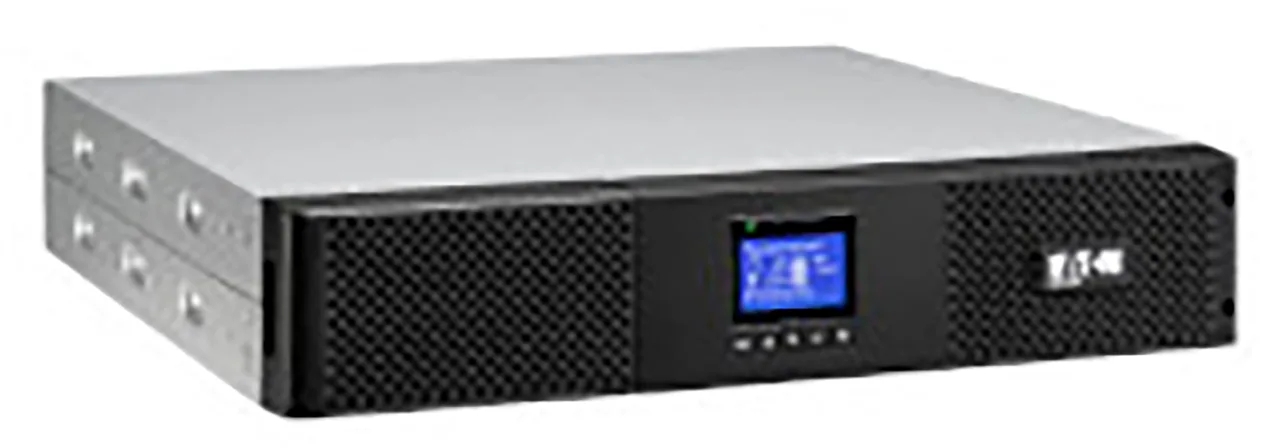

About the Eaton 9SX 1000IR 230V RACKMOUNT 2U
The Eaton 9SX 1000IR 230V RACKMOUNT 2U is a UPS with a double-conversion (Online) topology, an output power capacity of 1 kVA and an output power of 900 W. It has 7 AC outlet(s) with C13 coupler and C14 coupler types, a C14 coupler power plug, a USB port, 1 USB 2.0 ports quantity and a serial interface of type RS-232. Its form factor is Rackmount with a rack capacity of 2U, its product colour is Black and its display type is LCD. It measures a width of 438 mm, a depth of 438 mm, a height of 86.5 mm and a weight of 15.7 kg.
Frequently asked questions
Something else?
How much does the Eaton 9SX 1000IR 230V RACKMOUNT 2U cost in Singapore?
The suggested retail price (SRP) is from S$1,934.75 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Eaton SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the 9SX 1000IR 230V RACKMOUNT 2U?
Eaton warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the 9SX 1000IR 230V RACKMOUNT 2U?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
