Eaton In stock 9PX3000IRT2U UPS
3,000 VA · Online double-conversion · Tower/Rack convertible
9103-83800Eaton 9SX 5000i, 230V 9104-5218
5,000 VA · Online double-conversion · Tower
Part number9104-5218
SRP S$7,127.51
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 5 kVA 4500 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 12 V 7 Ah
- Tower Black
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 4500 W
- Waveform
- Sine
- Input operation voltage (min)
- 176 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 200 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Number of input phases
- 1
- Number of output phases
- 1
- Efficiency
- 94.2%
- Input power factor
- 99
- Output power factor
- 0.9
- Output voltage Total Harmonic Distortion (THD)
- 3%
- Noise level
- 46 dB
- Auto power off
- Yes
Ports & interfaces
- AC outlet types
- Hardwire
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- Remote Power Off (RPO)/Remote On-Off (ROO) connector
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 7 Ah
- Battery voltage
- 12 V
- Hot-swap battery
- Yes
Design
- Form factor
- Tower
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 96%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- CE
- Certification
- IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Packaging content
- Cables included
- Serial, USB cable
- Quick installation guide
- Yes
Weight & dimensions
- Width
- 244 mm
- Depth
- 542 mm
- Height
- 575 mm
- Weight
- 65.5 kg
Logistics data
- Quantity per pack
- 1 pc(s)
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V

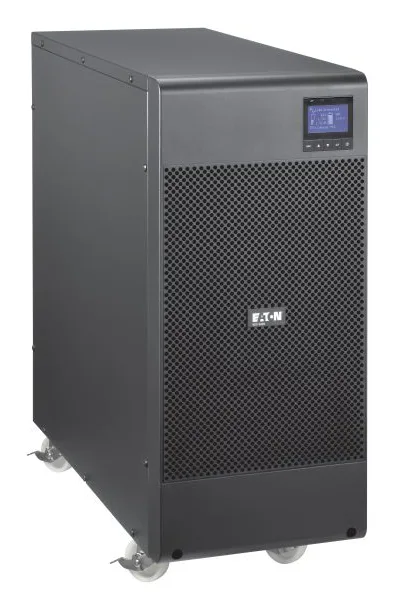

About the Eaton 9SX 5000i, 230V
The Eaton 9SX 5000i, 230V is a UPS with a double-conversion (Online) topology. Its output power capacity is 5 kVA and its output power is 4500 W, with a waveform of Sine. It has a USB port, a serial interface with a serial interface type of RS-232, and a Remote Power Off (RPO)/Remote On-Off (ROO) connector. Its battery technology is Sealed Lead Acid (VRLA), its form factor is Tower and its product colour is Black. It has a width of 244 mm, a depth of 542 mm, a height of 575 mm and a weight of 65.5 kg.
Frequently asked questions
Something else?
How much does the Eaton 9SX 5000i, 230V cost in Singapore?
The suggested retail price (SRP) is from S$7,127.51 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Eaton SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the 9SX 5000i, 230V?
Eaton warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the 9SX 5000i, 230V?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
