Eaton In stock 9PX3000IRT2U UPS
3,000 VA · Online double-conversion · Tower/Rack convertible
9103-83800Eaton 9PX 3000i RT3U 9103-83805
3,000 VA · Online double-conversion · Tower/Rack convertible
Part number9103-83805
SRP S$6,867
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Double-conversion (Online)
- 3 kVA 3000 W
- Waveform: Pure sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 3000 W
- Waveform
- Pure sine
- Input operation voltage (min)
- 176 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 200 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Number of input phases
- 1
- Efficiency
- 94%
- Power factor
- 1
- Noise level
- 40 dB
Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 10 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- RS-232 ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at half load
- 9.5 min
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 3U
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Packaging content
- Rack mount kit
- Yes
- Management card included
- No
Safety regulation & standards
- Safety
- IEC/EN 62040-1, UL 1778, CSA 22.2
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 440 mm
- Depth
- 485 mm
- Height
- 130 mm
- Weight
- 27.4 kg
Packaging data
- Bundled software
- Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code
- 85078000
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V

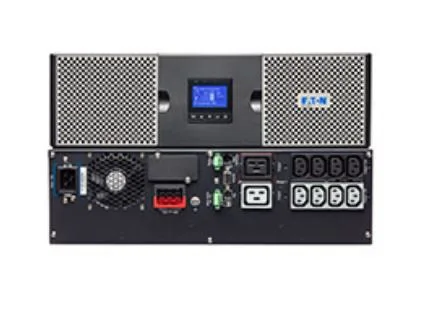

About the Eaton 9PX 3000i RT3U
3000 VA / 3000 W online UPS (rackmount/tower) with 10 AC outlets. Battery technology: Sealed Lead Acid (VRLA); AC outlet types: C13 coupler, C19 coupler; typical backup time at half load: 9.5 min.
Frequently asked questions
Something else?
How much does the Eaton 9PX 3000i RT3U cost in Singapore?
The suggested retail price (SRP) is from S$6,867 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Eaton SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Eaton 9PX 3000i RT3U?
Eaton warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Eaton 9PX 3000i RT3U?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
