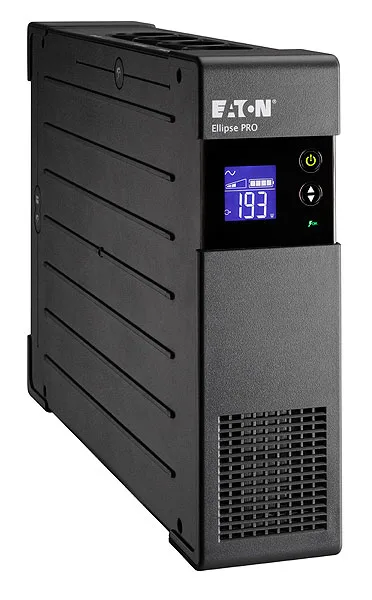

Eaton Ellipse PRO 1600 IEC 9207-73165
1,600 VA · Line-interactive · Tower
Part number9207-73165
SRP S$1,298.19
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Line-Interactive
- 1.6 kVA 1000 W
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.6 kVA
- Output power
- 1000 W
- Input operation voltage (min)
- 150 V
- Input operation voltage (max)
- 285 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50 Hz
- Emergency Power Off (EPO)
- Yes
- Surge protection
- Yes
- Surge protection features
- Fax, Modem, Network, Telephone
Ports & interfaces

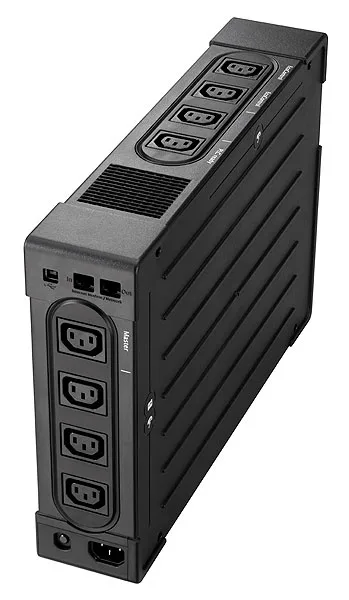

- AC outlet types
- C13 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 8 AC outlet(s)
- USB 2.0 ports quantity
- 1
- Modem (RJ-11) ports
- 1
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at half load
- 9 min
- Hot-swap battery
- No
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Tower
- Rack capacity
- 2U
- Product colour
- Black

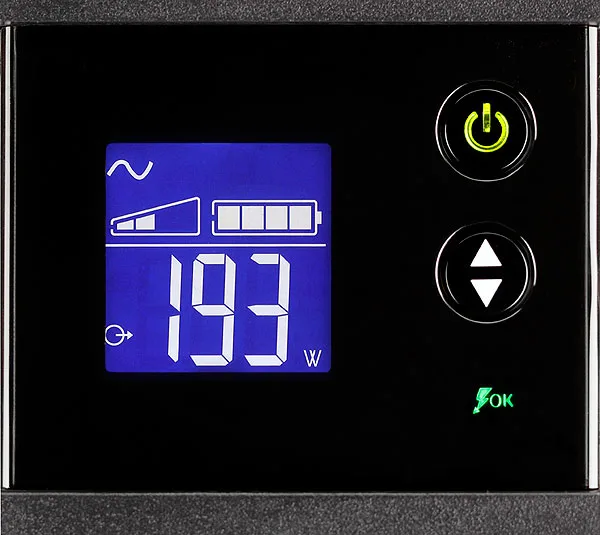

- Display type
- LCD
- LED indicators
- Yes
Safety regulation & standards
- Safety
- IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
- Width
- 82 mm
- Depth
- 390 mm
- Height
- 275 mm
- Weight
- 11.3 kg
Logistics data
- Harmonized System (HS) code
- 85078000
Other features
- Nominal input voltage
- 230 V
About the Eaton Ellipse PRO 1600 IEC
1600 VA / 1000 W line-interactive UPS (tower) with 8 AC outlets. Battery technology: Sealed Lead Acid (VRLA); AC outlet types: C13 coupler; typical backup time at half load: 9 min.
Frequently asked questions
Something else?
How much does the Eaton Ellipse PRO 1600 IEC cost in Singapore?
The suggested retail price (SRP) is from S$1,298.19 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Eaton SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Eaton Ellipse PRO 1600 IEC?
Eaton warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Eaton Ellipse PRO 1600 IEC?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
