SRP S$136.25
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Specifications
Design
- PDU types
- Metered
- Type
- Single-phase
- Form factor
- Rackmount
- Rack mounting
- Yes
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
- Cable colour
- Black
- Display
- LCD
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- Power plug
- IEC 60309
- AC outlet types
- C13 coupler, C19 coupler
- Ethernet LAN (RJ-45) ports
- 1
- Output connections
- 20 x C13 & 4 x C19
Features
- LED indicators
- Yes
- Cable length
- 3 m
Management features
- Management protocols
- SNMP, Telnet
- Firmware upgradeable
- Yes
- Firmware upgradeable via
- Network, USB
Power
- Nominal input voltage
- 230 V
- AC input frequency
- 50 Hz
- Maximum current
- 32 A
- Nominal output voltage
- 230 V
- Maximum input current per phase
- 32 A
- Maximum power
- 7400 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010 EN 55024:2010 ISO 9001:2008 / ISO 14001:2004
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
Weight & dimensions
- Width
- 53 mm
- Depth
- 1604 mm
- Height
- 52 mm
- Weight
- 4.5 kg
Packaging content
- Cables included
- LAN (RJ-45)
- Rack mount kit
- Yes
Packaging data
- Package weight
- 6.7 kg

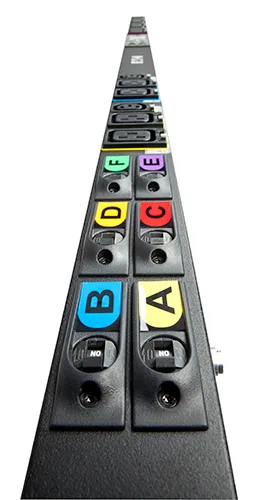

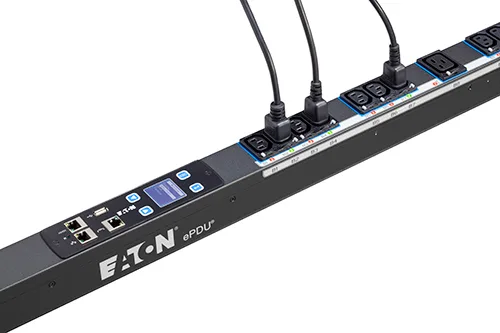

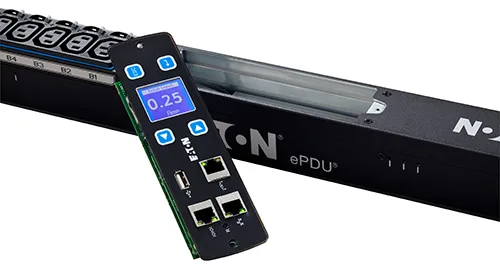

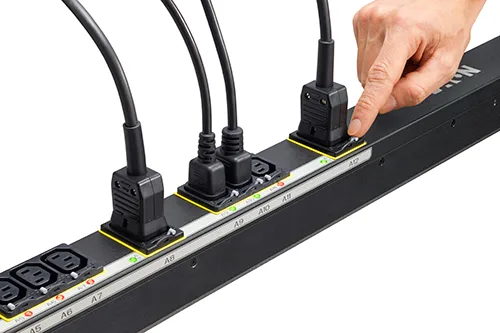

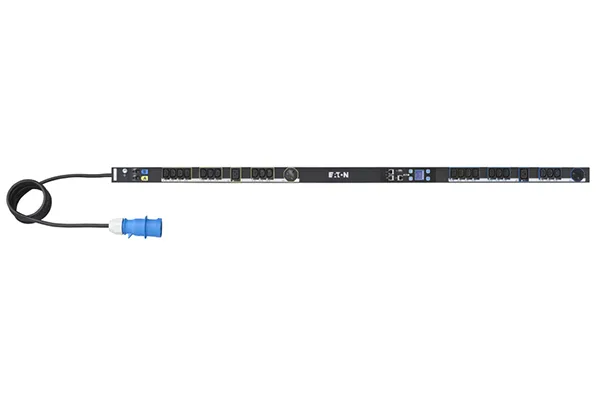

About the Eaton EPDU MO 0U (309 32A 1P)20XC13:4XC19
The Eaton EPDU MO 0U (309 32A 1P)20XC13:4XC19 is a metered, single-phase rackmount PDU with a rack capacity of 0U and vertical mounting. It has 24 AC outlet(s), with output connections of 20 x C13 & 4 x C19, an IEC 60309 power plug, an LCD display and LED indicators. Its nominal input voltage is 230 V, its maximum current is 32 A and its maximum power is 7400 W. It measures 53 mm in width, 1604 mm in depth, 52 mm in height and weighs 4.5 kg.
Frequently asked questions
Something else?
How much does the Eaton EPDU MO 0U (309 32A 1P)20XC13:4XC19 cost in Singapore?
The suggested retail price (SRP) is from S$136.25 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Eaton SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the EPDU MO 0U (309 32A 1P)20XC13:4XC19?
Eaton warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the EPDU MO 0U (309 32A 1P)20XC13:4XC19?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
