Price on request
Questions about this product? or chat on WhatsApp.
Highlights
- Wi-Fi 7 tri-band: 5.8 Gbps (6 GHz), 8.6 Gbps (5 GHz, 4x4), 688 Mbps (2.4 GHz)
- 4x4 DL/UL MU-MIMO on 5 GHz for high-density areas
- (1) 1/2.5 GbE RJ45 uplink; PoE+ powered (25W max)
- Vendor-rated 160 m² (1,750 ft²) coverage, 500+ connected devices
- Ceiling or wall mounting with included Pro Mount; managed via UniFi Network
Specifications
Wi-Fi
- Wi-Fi standard
- WiFi 7
- 6 GHz data rate
- 5.8 Gbps (BW320), 2x2 DL/UL MU-MIMO
- 5 GHz data rate
- 8.6 Gbps (BW240), 4x4 DL/UL MU-MIMO
- 2.4 GHz data rate
- 688 Mbps (BW40), 2x2 DL/UL MU-MIMO
- Coverage (vendor-rated)
- 160 m² (1,750 ft²)
- Connected devices
- 500+
Ports & Power
- Uplink
- (1) 1/2.5 GbE RJ45
- Power method
- PoE+ (44–57V DC)
- Max power consumption
- 25W
Physical
- Mounting
- Ceiling, wall (Pro Mount included)
- Dimensions
- ⌀206 x 46 mm (⌀8.1 x 1.8")

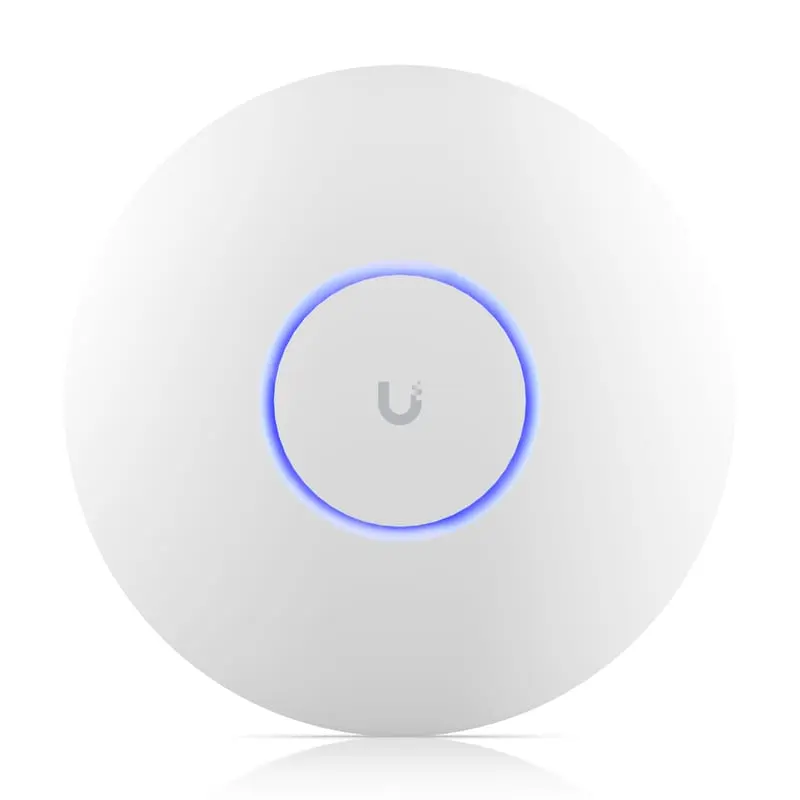

About the Ubiquiti UniFi U7 Pro Max
The U7 Pro Max is the higher-density sibling of the U7 Pro, aimed at busier floors and meeting-room clusters. It adds a 4x4 MU-MIMO 5 GHz radio rated at 8.6 Gbps (240 MHz channels) alongside 2x2 radios on 6 GHz (5.8 Gbps, 320 MHz channels) and 2.4 GHz (688 Mbps).
Ubiquiti rates coverage at 160 m² (1,750 ft²) with support for 500+ connected devices. The AP uplinks over a single 1/2.5 GbE RJ45 port, is powered by PoE+ with a 25W maximum draw, ships with a Pro Mount for ceiling or wall installation, and is adopted and managed through the UniFi Network application.
Frequently asked questions
Something else?
How much does the Ubiquiti UniFi U7 Pro Max cost in Singapore?
Pricing for the UniFi U7 Pro Max varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Ubiquiti SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the UniFi U7 Pro Max?
Ubiquiti warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the UniFi U7 Pro Max?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
