SRP S$655.06
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Pearl White
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rate supported (max): 100 Mbit/s
- Product colour: White
- Input voltage: 100 - 240 V
Specifications
Ports & interfaces
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rate supported (max)
- 100 Mbit/s
Design
- Product colour
- White
- Full duplex
- Yes
- Wall mountable
- Yes
- LED indicators
- Yes
Power
- Input voltage
- 100 - 240 V
- Power over Ethernet (PoE)
- Yes
- Output voltage
- 5 V
- Output current
- 1.2 A
Performance
- Number of handsets supported (max)
- 250
- Number of carrier frequencies
- 2
- Number of VoIP accounts
- 250
- Management protocols
- TFTP/FTP/HTTP/HTTPS/RPS
- Supported network protocols
- SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS
- Number of bases supported (max)
- 60
- Security algorithms
- AES, HTTPS, SHA-384, SHA-512, SRTP, TLS
- Wireless synchronization
- Yes
Weight & dimensions
- Dimensions (WxDxH)
- 134 x 100 x 28 mm
- Weight
- 2.8 kg
- Package width
- 158 mm
- Package depth
- 203 mm
- Package height
- 63 mm
- Package weight
- 3.4 kg
Call management
- Conference call
- Yes
- Number of parallel conferences
- 3
- Phonebook capacity (per handset)
- 100 entries
- Number of simultaneous calls (max)
- 100
- Number of WB calls per base supported (max)
- 8
- Number of NB calls per base supported (max)
- 8
- Number of simultaneous calls per handset
- 2
- Anonymous call
- Yes
Antenna
- Frequency range (EU)
- 1880 - 1900 MHz
- Frequency range (US)
- 1920 - 1930 MHz
- Maximum indoor range
- 50 m
- Maximum outdoor range
- 300 m
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 95%

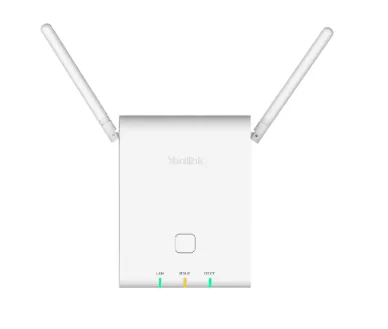

About the Yealink W90DM IP DECT DECT Manager
Yealink W90DM, TFTP/FTP/HTTP/HTTPS/RPS, SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS, AES, HTTPS, SHA-384, SHA-512, SRTP, TLS, 100 entries, 1880 - 1900 MHz, 1920 - 1930 MHz
Frequently asked questions
Something else?
How much does the Yealink W90DM IP DECT DECT Manager cost in Singapore?
The suggested retail price (SRP) is from S$655.06 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Yealink SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the W90DM IP DECT DECT Manager?
Yealink warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the W90DM IP DECT DECT Manager?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
