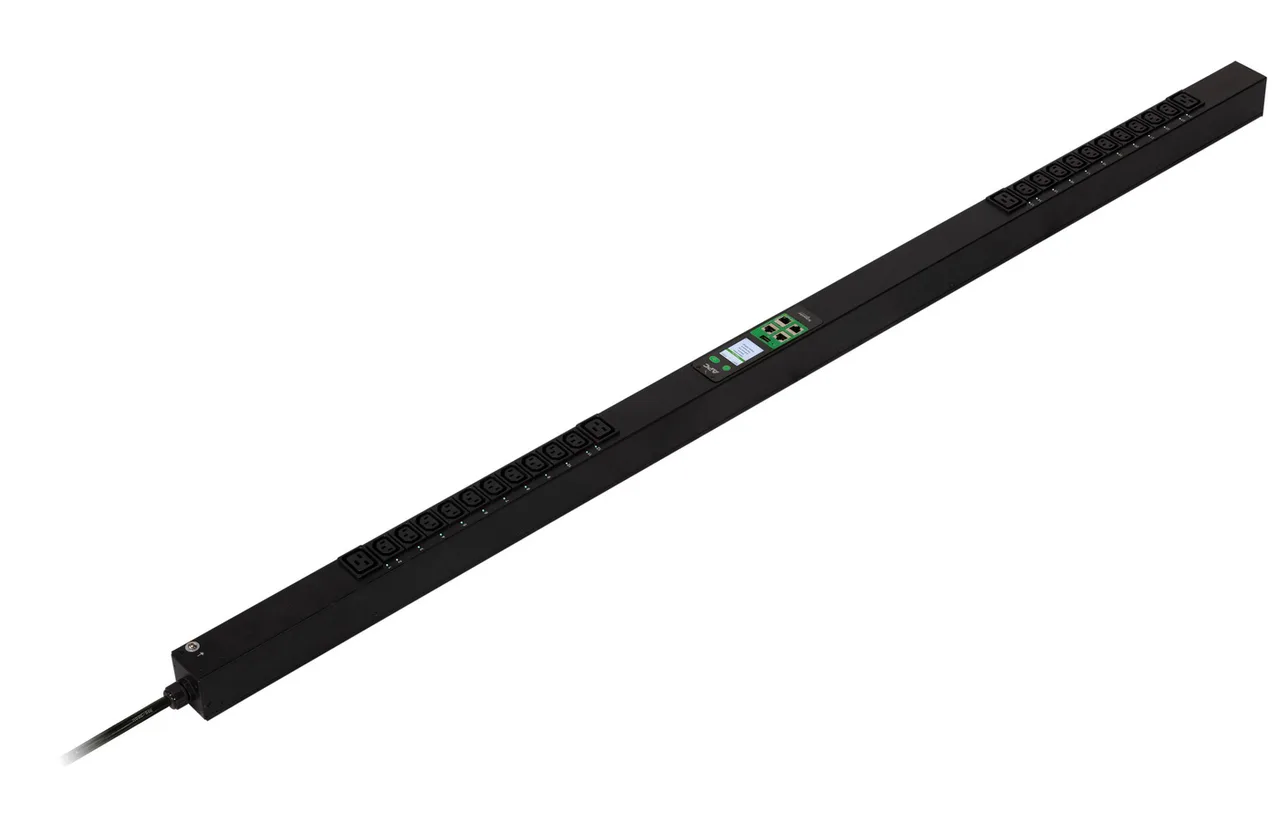

APC Easypdu Switched Zero U 22 KW 230V (18) C13 (6) C19IEC309 EPDU2232S
Rackmount
Part numberEPDU2232S
SRP S$2,686.85
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- AC outlets quantity: 24 AC outlet(s)
- Power plug: C13 coupler
- AC outlet types: C13 coupler, C19 coupler
- PDU types: Switched
- Type: Three-phase
Specifications
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- Power plug
- C13 coupler
- AC outlet types
- C13 coupler, C19 coupler
Design
- PDU types
- Switched
- Type
- Three-phase
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 50/60 Hz
- Maximum current
- 32 A
- Nominal output voltage
- 230 V
- Output voltage
- 230 V
- Load capacity
- 22080 VA
- Number of phases
- 3
Weight & dimensions
- Width
- 56 mm
- Depth
- 62 mm
- Height
- 1650 mm
- Weight
- 7.75 kg
Certificates
- Compliance certificates
- CE, UKCA
Operational conditions
- Operating temperature (T-T)
- -5 - 50 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
Packaging data
- Package weight
- 9.25 kg
- Package width
- 170 mm
- Package depth
- 1810 mm
- Package height
- 1260 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 2155
About the APC Easypdu Switched Zero U 22 KW 230V (18) C13 (6) C19IEC309
APC EasyPDU, Switched, Zero U, 22 kW, 230V, (18) C13 & (6) C19；IEC309, Switched, 0U, Three-phase, Vertical, Black, 24 AC outlet(s)
Frequently asked questions
Something else?
How much does the APC Easypdu Switched Zero U 22 KW 230V (18) C13 (6) C19IEC309 cost in Singapore?
The suggested retail price (SRP) is from S$2,686.85 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Easypdu Switched Zero U 22 KW 230V (18) C13 (6) C19IEC309?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Easypdu Switched Zero U 22 KW 230V (18) C13 (6) C19IEC309?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
