SRP S$2,556.05
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Cable length: 2 m
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C13 coupler, C19 coupler
- Maximum current: 32 A
Specifications
Design
- PDU types
- Switched
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- Power plug
- IEC 60309
- AC outlet types
- C13 coupler, C19 coupler
Features
- Cable length
- 2 m
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 32 A
- Output voltage
- 230 V
- Maximum power
- 22000 W
Certificates
- Compliance certificates
- CE
- Certification
- EAC, RCM, TÜV
Sustainability
- Sustainability compliance
- Yes
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
Weight & dimensions
- Width
- 55 mm
- Depth
- 62 mm
- Height
- 1794 mm
- Weight
- 8.17 kg
Packaging data
- Package weight
- 9.45 kg
- Package width
- 160 mm
- Package depth
- 110 mm
- Package height
- 1950 mm

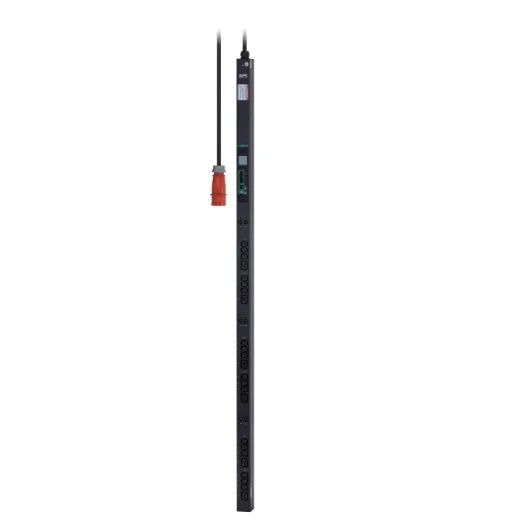

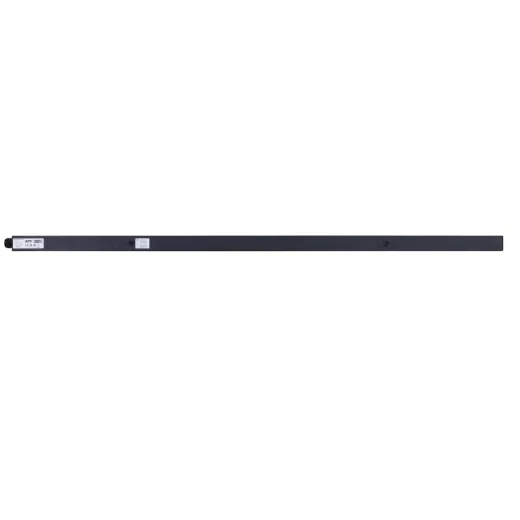

About the APC EasyPDU Switched Zero U 22 kW 230V (18)
The APC EasyPDU Switched Zero U 22 kW 230V (18) is a switched PDU with a rack capacity of 0U and vertical mounting. It has 24 AC outlet(s), a power plug of IEC 60309 and AC outlet types of C13 coupler and C19 coupler. Its cable length is 2 m, its nominal input voltage is 400 V and its maximum current is 32 A. Its output voltage is 230 V and its maximum power is 22000 W. It has a width of 55 mm, a depth of 62 mm, a height of 1794 mm and a weight of 8.17 kg.
Frequently asked questions
Something else?
How much does the APC EasyPDU Switched Zero U 22 kW 230V (18) cost in Singapore?
The suggested retail price (SRP) is from S$2,556.05 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the EasyPDU Switched Zero U 22 kW 230V (18)?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the EasyPDU Switched Zero U 22 kW 230V (18)?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
