SRP S$2,447.05
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Metered, Switched 0U Black
- 13 AC outlet(s)
- 2300 W
Specifications
Design
- PDU types
- Metered, Switched
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 13 AC outlet(s)
- Power plug
- C14 coupler
- Output connections
- Sixteen IEC 320 C13 outlets
Features
- LED indicators
- Yes
- Cable length
- 3.05 m
Management features
- Monitoring
- Current, Power, Voltage
- Outlet control
- Lock-out, Recycle, Turn off, Turn on
Power
- Nominal input voltage
- 200-230 V
- AC input frequency
- 47/63 Hz
- Maximum current
- 10 A
- Nominal output voltage
- 230 V
- Load capacity
- 2300 VA
- Maximum input current per phase
- 10 A
- Maximum total current draw per phase
- 10 A
- Maximum power
- 2300 W
Certificates
- Compliance certificates
- RoHS
- Certification
- VDE, CE, EAC, EN55022, EN55024, AS/NZS CISPR 22
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 4500 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 23 - 113 °F
Weight & dimensions
- Width
- 55.6 mm
- Depth
- 43.9 mm
- Height
- 1244.6 mm
- Weight
- 4.3 kg
Packaging data
- Package weight
- 5.2 kg
- Package width
- 152.4 mm
- Package depth
- 127 mm
- Package height
- 2133.6 mm

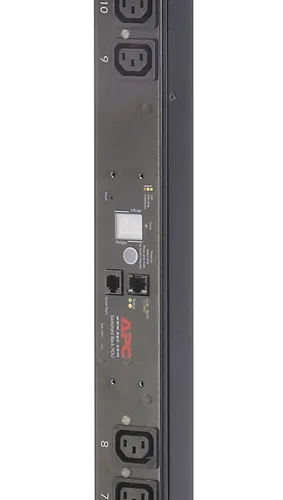

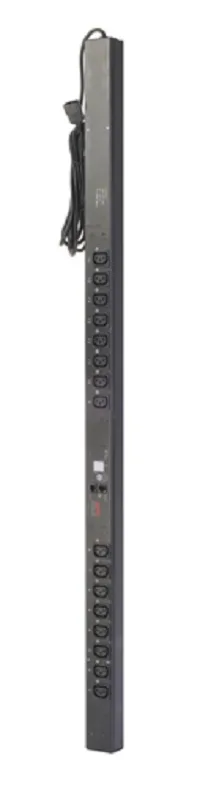

About the APC AP7950B PDU
The APC AP7950B PDU is a metered, switched PDU with a rack capacity of 0U and vertical mounting. It has 13 AC outlet(s) and a C14 coupler power plug. Its nominal input voltage is 200-230 V, its maximum current is 10 A and its load capacity is 2300 VA. It measures 55.6 mm in width, 43.9 mm in depth and 1244.6 mm in height, with a weight of 4.3 kg.
