SRP S$2,250.85
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Single-phase Metered, Switched 2U Black
- 16 AC outlet(s) C13 coupler
- 7360 W
Specifications
Design
- PDU types
- Metered, Switched
- Type
- Single-phase
- Rack capacity
- 2U
- Mounting
- Horizontal
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 16 AC outlet(s)
- Power plug
- IEC309
- AC outlet types
- C13 coupler
Features
- Cable length
- 3.05 m
Management features
- Monitoring
- Current, Power, Voltage
- Outlet control
- Lock-out, Recycle, Turn off, Turn on
Power
- Nominal input voltage
- 200-230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 32 A
- Nominal output voltage
- 230 V
- Load capacity
- 7360 VA
- Maximum input current per phase
- 32 A
- Maximum total current draw per phase
- 32 A
- Maximum power
- 7360 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, VDE, REACH
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 445 mm
- Depth
- 114 mm
- Height
- 89 mm
- Weight
- 4.5 kg
Packaging content
- Packaging content
- Documentation CD, Installation Guide, Rack Mounting Brackets
Packaging data
- Package weight
- 6.55 kg
- Package width
- 508 mm
- Package depth
- 368 mm
- Package height
- 140 mm

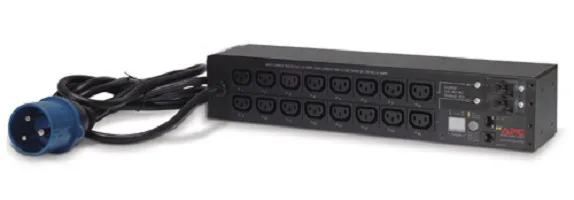

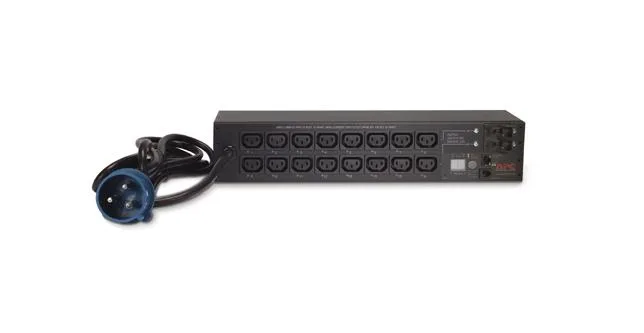

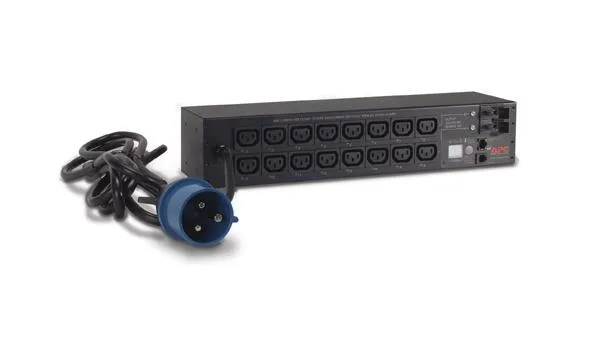

About the APC AP7922B PDU
The APC AP7922B PDU is a metered, switched single-phase PDU with a rack capacity of 2U and horizontal mounting. It has 16 AC outlet(s) of the C13 coupler type and an IEC309 power plug. Its nominal input voltage is 200-230 V, its maximum current is 32 A and its load capacity is 7360 VA. It measures 445 mm in width, 114 mm in depth and 89 mm in height, with a weight of 4.5 kg.
Frequently asked questions
Something else?
How much does the APC AP7922B PDU cost in Singapore?
The suggested retail price (SRP) is from S$2,250.85 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the AP7922B PDU?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the AP7922B PDU?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
