SRP S$2,158.20
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Single-phase Metered 2U Black
- 16 AC outlet(s) C13 coupler, C19 coupler
- 7680 W
Specifications
Design
- PDU types
- Metered
- Type
- Single-phase
- Rack capacity
- 2U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
- On/off switch
- Yes
Ports & interfaces
- AC outlets quantity
- 16 AC outlet(s)
- Power plug
- IEC309
- AC outlet types
- C13 coupler, C19 coupler
- Input connection type
- IEC 309 32A 2P+E
- Output connections
- 12 x C13 4 x C19
Features
- LED indicators
- Yes
- Cable length
- 3.66 m
Management features
- Monitoring
- Current, Power, Voltage
Power
- Nominal input voltage
- 208-230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 32 A
- Load capacity
- 7680 VA
- Maximum input current per phase
- 32 A
- Maximum total current draw per phase
- 32 A
- Power protection features
- Overload
- Maximum power
- 7680 W
Certificates
- Compliance certificates
- RoHS
- Certification
- C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 444 mm
- Depth
- 112 mm
- Height
- 88 mm
- Weight
- 3.36 kg
Packaging data
- Package weight
- 5.41 kg
- Package width
- 508 mm
- Package depth
- 368 mm
- Package height
- 140 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 8952.07

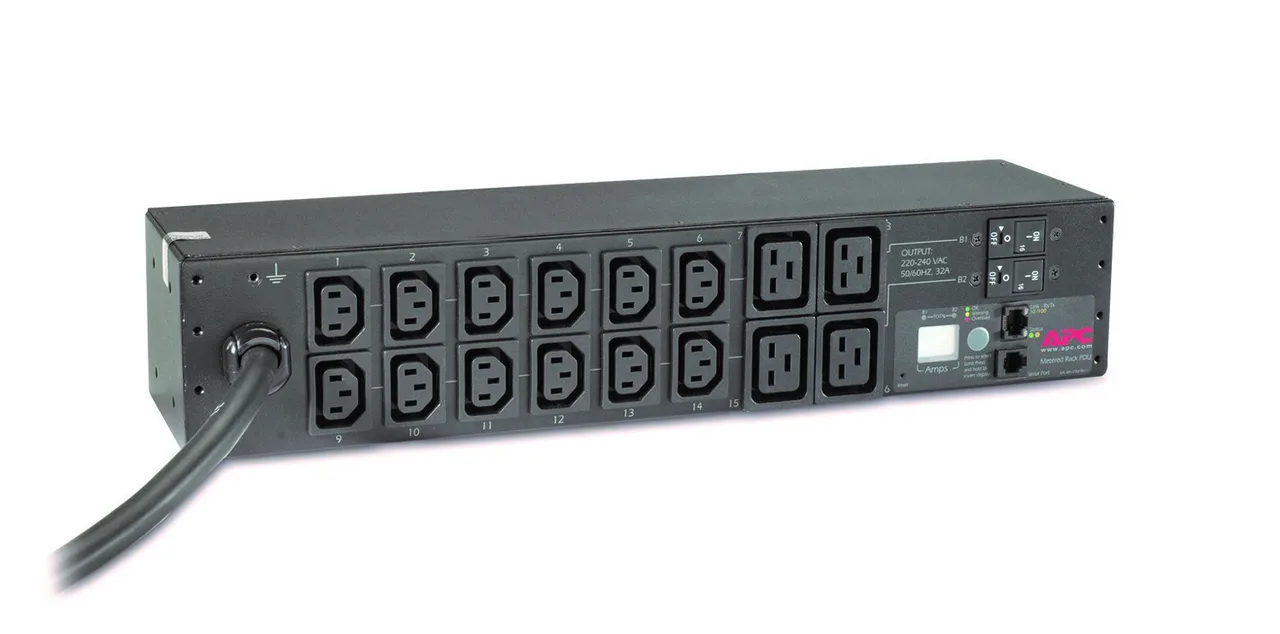

About the APC AP7822B PDU
The AP7822B PDU is a metered, single-phase PDU with a rack capacity of 2U and horizontal/vertical mounting, in black. It has an on/off switch and 16 AC outlet(s) with C13 coupler and C19 coupler outlet types, and its input connection type is IEC 309 32A 2P+E. It has LED indicators, and its monitoring is current, power and voltage. Its nominal input voltage is 208-230 V and its load capacity is 7680 VA. It measures 444 mm in width, 112 mm in depth and 88 mm in height, with a weight of 3.36 kg.
Frequently asked questions
Something else?
How much does the APC AP7822B PDU cost in Singapore?
The suggested retail price (SRP) is from S$2,158.20 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the AP7822B PDU?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the AP7822B PDU?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
