SRP S$2,261.75
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Cable length: 1.83 m
- AC outlets quantity: 9 AC outlet(s)
- AC outlet types: C13 coupler, C19 coupler

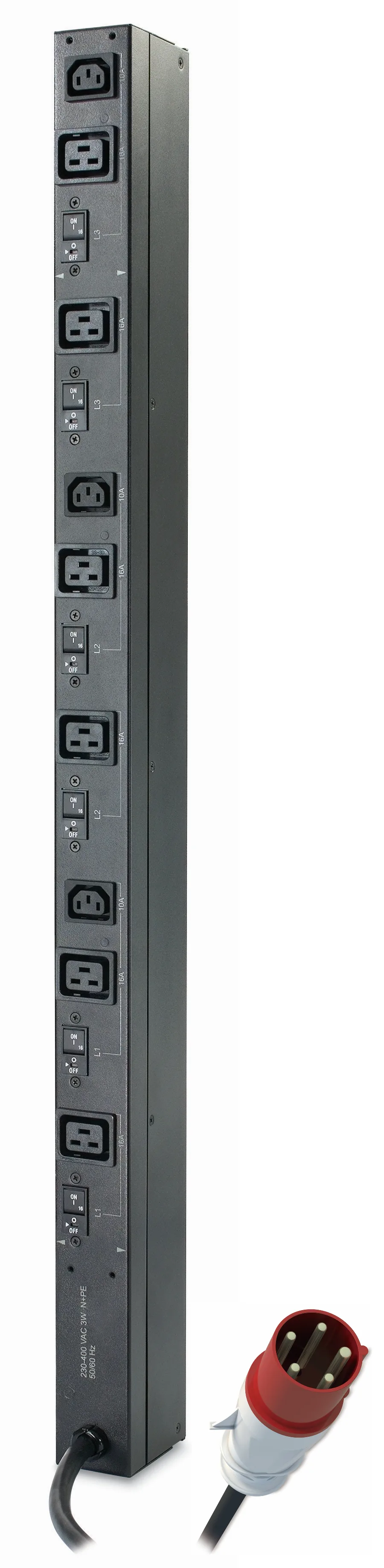

- Input connection type: IEC 309 32A 3P+N+PE
- Output connections: - (3) IEC 320 C13 - (6) IEC 320 C19
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 9 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
- Input connection type
- IEC 309 32A 3P+N+PE
- Output connections
- - (3) IEC 320 C13 - (6) IEC 320 C19
Features
- Cable length
- 1.83 m
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 47/63 Hz
- Nominal output voltage
- 230 V
- Load capacity
- 22080 VA
- Maximum input current per phase
- 32 A
- Maximum total current draw per phase
- 32 A
- Maximum power
- 22000 W
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 55 mm
- Depth
- 88 mm
- Height
- 927 mm
- Weight
- 4.75 kg
Packaging data
- Package weight
- 6.25 kg
- Package width
- 286 mm
- Package depth
- 70 mm
- Package height
- 1054 mm

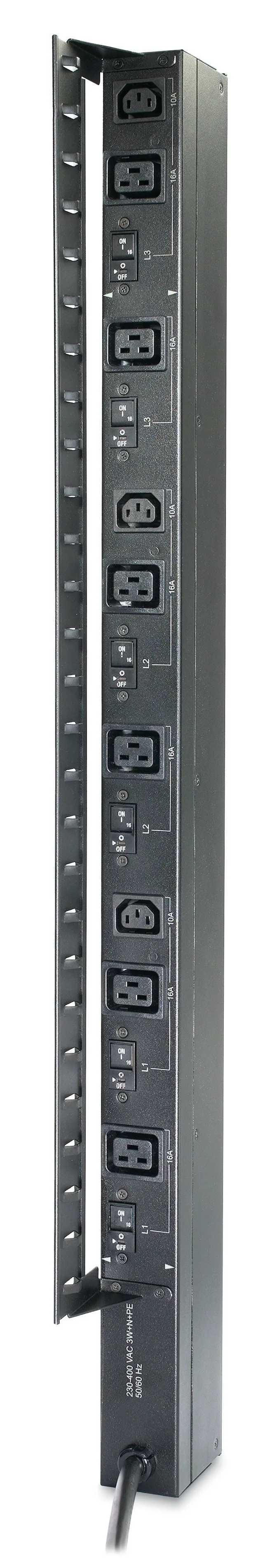

About the APC Rack PDU. Basic. Zero U. 22kW. 230V. (6)
The APC Rack PDU is a basic PDU with a rack capacity of 0U and vertical mounting, in black. It has 9 AC outlet(s) with C13 coupler and C19 coupler outlet types, and its input connection type is IEC 309 32A 3P+N+PE. Its nominal input voltage is 400 V, its nominal output voltage is 230 V, and its load capacity is 22080 VA. It measures 55 mm in width, 88 mm in depth and 927 mm in height, with a weight of 4.75 kg.
Frequently asked questions
Something else?
How much does the APC Rack PDU. Basic. Zero U. 22kW. 230V. (6) cost in Singapore?
The suggested retail price (SRP) is from S$2,261.75 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Rack PDU. Basic. Zero U. 22kW. 230V. (6)?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Rack PDU. Basic. Zero U. 22kW. 230V. (6)?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
