SRP S$2,218.15
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Cable length: 0.91 m
- AC outlets quantity: 42 AC outlet(s)
- AC outlet types: C13 coupler, C19 coupler
- Input connection type: IEC 309 16A 3P+N+PE
- Output connections: (36) IEC 320 C13 (6) IEC 320 C19
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 42 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
- Input connection type
- IEC 309 16A 3P+N+PE
- Output connections
- (36) IEC 320 C13 (6) IEC 320 C19
Features
- Cable length
- 0.91 m
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 47/63 Hz
- Nominal output voltage
- 230 V
- Load capacity
- 11040 VA
- Maximum input current per phase
- 16 A
- Maximum total current draw per phase
- 16 A
- Maximum power
- 11000 W
Certificates
- Certification
- C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 56 mm
- Depth
- 44 mm
- Height
- 1619 mm
- Weight
- 5.45 kg

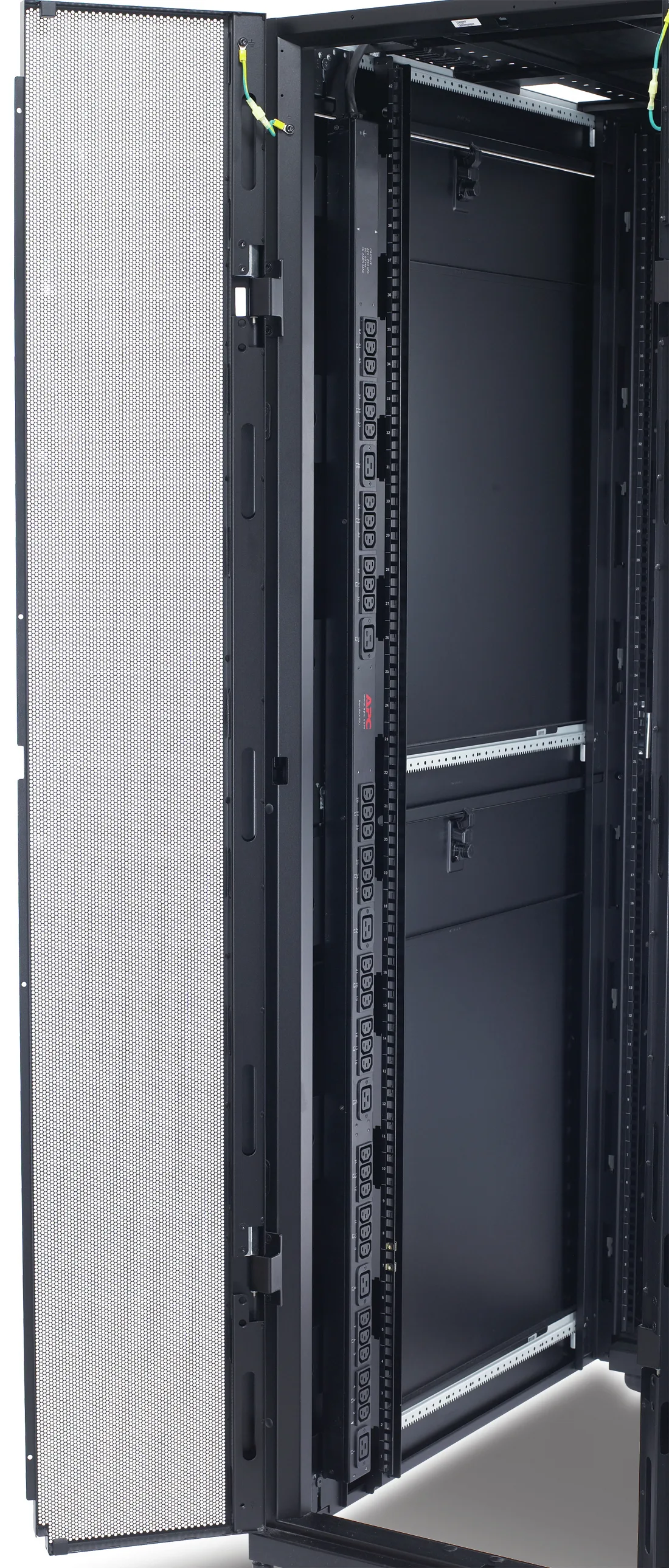

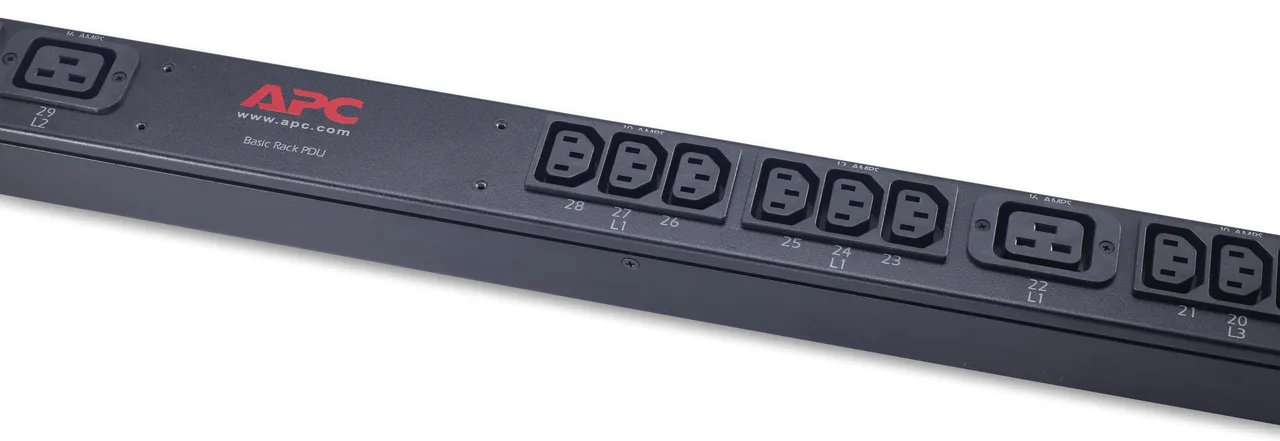

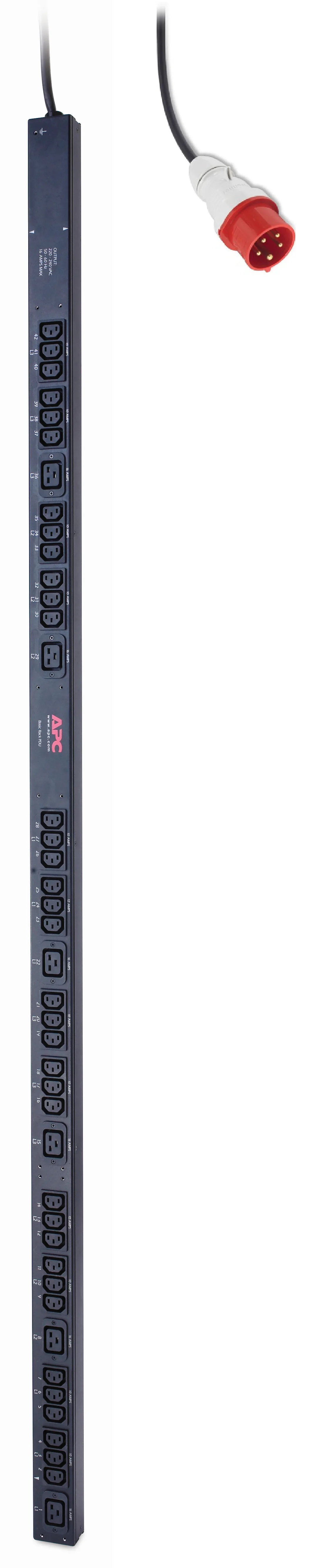

About the APC Rack PDU AP7557
APC Basic Rack PDU, Input: 400V 3PH, Input Connections: IEC 309 16A 3P+N+PE, Cord Length: 3 feet (0.91 meters), Output: 230V, Output Connections: IEC 320 C13,IEC 320 C19.
Frequently asked questions
Something else?
How much does the APC Rack PDU AP7557 cost in Singapore?
The suggested retail price (SRP) is from S$2,218.15 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Rack PDU AP7557?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Rack PDU AP7557?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
