SRP S$5,330.10
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Metered-by-outlet 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 11040 W
Other configurations
1 more RACK PDU 2G METERED-BY-OUTLET configuration
| Part number | Price | Stock | Open |
|---|---|---|---|
| AP8481 | SRP S$5,330.10 | Order on request | |
| AP8459EU3 | SRP S$3,482.55 | Order on request |
Specifications
Design
- PDU types
- Metered, Metered-by-outlet
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)

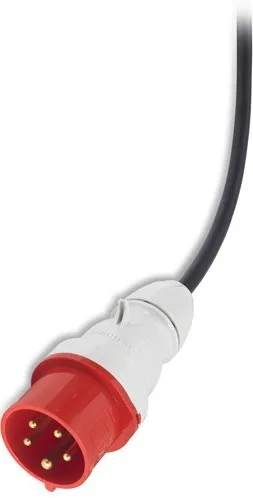

- Power plug
- IEC309
- AC outlet types
- C13 coupler, C19 coupler
- Input connection type
- IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
- Output connections
- 21 x C13 & 3 x C19
Features
- LED indicators
- Yes
- Cable length
- 1.83 m
Management features
- Monitoring
- Current, Power, Voltage
- Management platform
- Web, SNMP, Telnet
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 50 - 60 Hz
- Nominal output voltage
- 230 V
- Load capacity
- 11040 VA
- Maximum input current per phase
- 16 A
- Maximum total current draw per phase
- 16 A
- Maximum power
- 11040 W
Certificates
- Compliance certificates
- RoHS
- Certification
- EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE, REACH
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 56 mm
- Depth
- 51 mm
- Height
- 1829 mm
- Weight
- 8.21 kg
Packaging data
- Package weight
- 10.5 kg
- Package width
- 163 mm
- Package depth
- 117 mm
- Package height
- 2037 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 7251.82
About the APC RACK PDU 2G METERED-BY-OUTLET
RACK PDU 2G METERED-BY-OUTLET0U 11KW 230V 21XC13 3XC19
Frequently asked questions
Something else?
How much does the APC RACK PDU 2G METERED-BY-OUTLET cost in Singapore?
The suggested retail price (SRP) is from S$5,330.10 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the RACK PDU 2G METERED-BY-OUTLET?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the RACK PDU 2G METERED-BY-OUTLET?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
