SRP S$5,733.40
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Cable length: 1.83 m
- AC outlets quantity: 42 AC outlet(s)

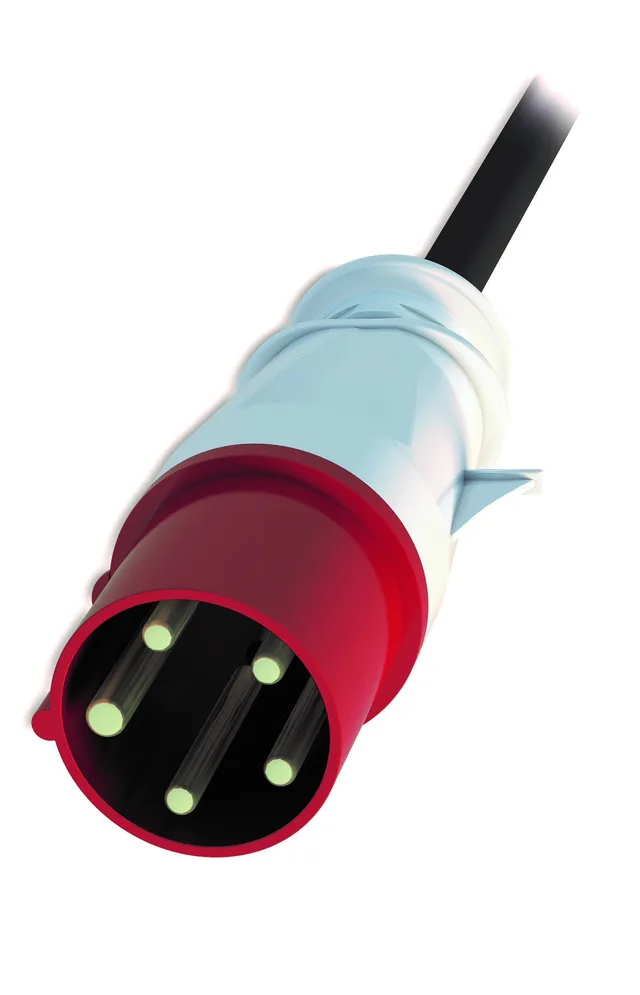

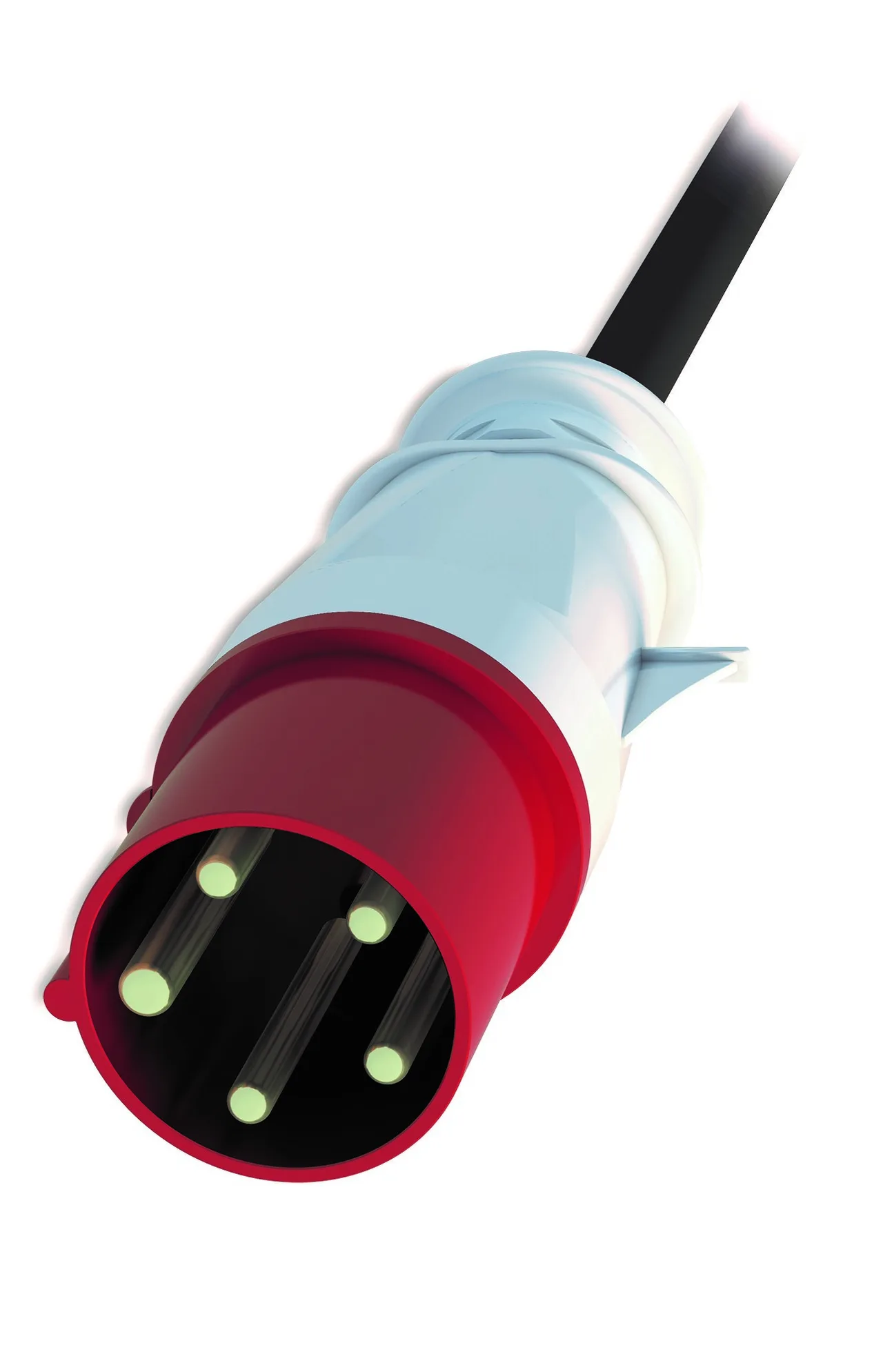

- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
- Output connections: 30 x IEC 320 C13 12 x IEC 320 C19
Specifications
Design
- PDU types
- Metered
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 42 AC outlet(s)
- Power plug
- IEC309
- AC outlet types
- C13 coupler, C19 coupler
- Output connections
- 30 x IEC 320 C13 12 x IEC 320 C19
Features
- LED indicators
- Yes
- Cable length
- 1.83 m
Management features
- Monitoring
- Current, Power, Voltage
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 32 A
- Nominal output voltage
- 230 V
- Load capacity
- 22080 VA
- Maximum input current per phase
- 32 A
- Power protection features
- Overload
- Maximum power
- 22000 W
Certificates
- Compliance certificates
- RoHS
- Certification
- EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 56 mm
- Depth
- 51 mm
- Height
- 1829 mm
- Weight
- 8.72 kg
Packaging data
- Package weight
- 11.6 kg
- Package width
- 170 mm
- Package depth
- 112 mm
- Package height
- 2050 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 57837.86

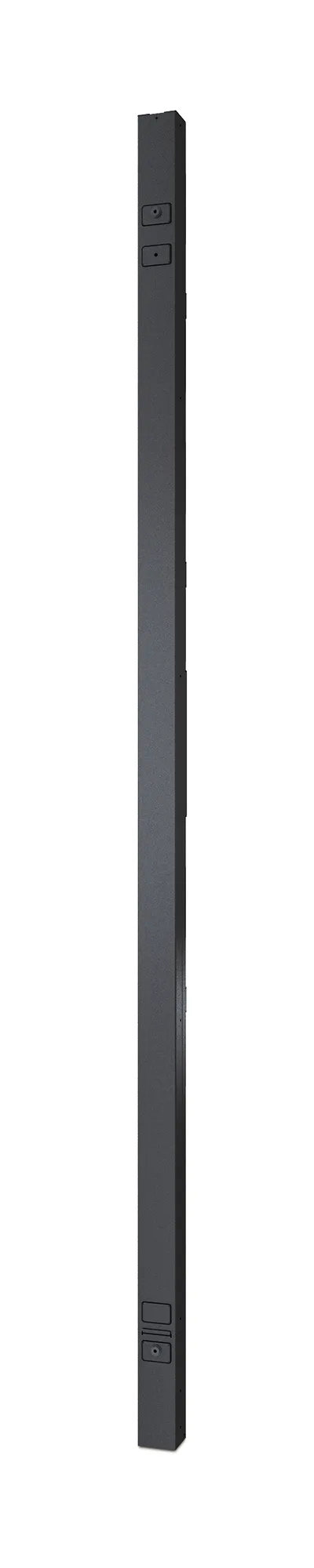

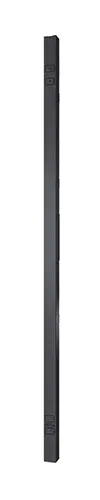

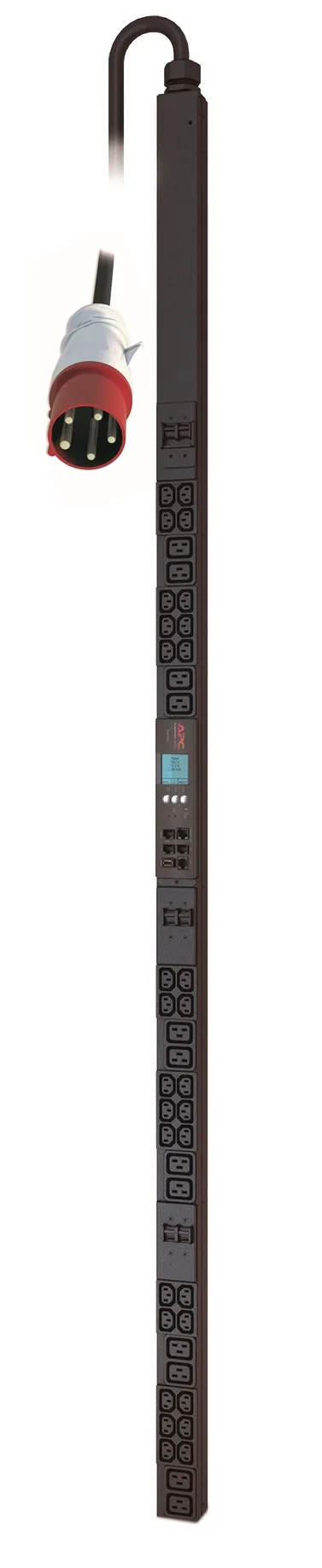

About the APC Rack PDU 2G. Metered. ZeroU. 22.0kW(32A)

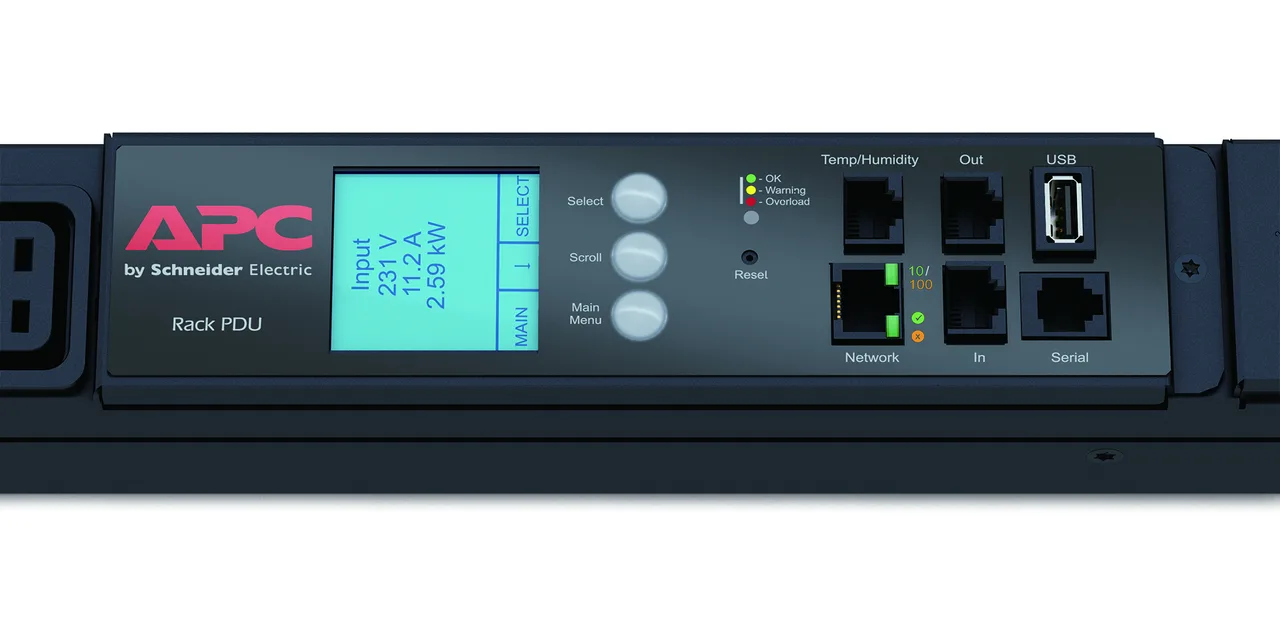

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
Frequently asked questions
Something else?
How much does the APC Rack PDU 2G. Metered. ZeroU. 22.0kW(32A) cost in Singapore?
The suggested retail price (SRP) is from S$5,733.40 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Rack PDU 2G. Metered. ZeroU. 22.0kW(32A)?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Rack PDU 2G. Metered. ZeroU. 22.0kW(32A)?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
