SRP S$3,989.40
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- AC outlets quantity: 24 AC outlet(s)
- AC outlet types: C13 coupler, C19 coupler
- Maximum current: 16 A
- Load capacity: 3680 VA
- Maximum total current draw per phase: 16 A
Other configurations
3 more Rack PDU 2G. Metered by Outlet with Swit configurations
| Part number | Price | Stock | Open |
|---|---|---|---|
| AP8659 | SRP S$3,989.40 | Order on request | |
| AP8659EU3 | SRP S$4,218.30 | Order on request | |
| AP8653 | SRP S$5,035.80 | Order on request | |
| AP8681 | SRP S$5,956.85 | Order on request |
Specifications
Design
- PDU types
- Metered, Metered-by-outlet, Switched
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
Management features
- Monitoring
- Current, Power, Voltage
- Outlet control
- Lock-out, Recycle, Turn off, Turn on
Power
- Nominal input voltage
- 200-230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 16 A
- Nominal output voltage
- 200-230 V
- Load capacity
- 3680 VA
- Maximum input current per phase
- 16 A
- Maximum total current draw per phase
- 16 A
- Maximum power
- 3680 W
Certificates
- Compliance certificates
- RoHS
- Certification
- EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 56 mm
- Depth
- 51 mm
- Height
- 1829 mm
- Weight
- 6.09 kg
Packaging data
- Package weight
- 8.36 kg
- Package width
- 162 mm
- Package depth
- 117 mm
- Package height
- 2038 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 537.26
About the APC Rack PDU 2G (AP8659)

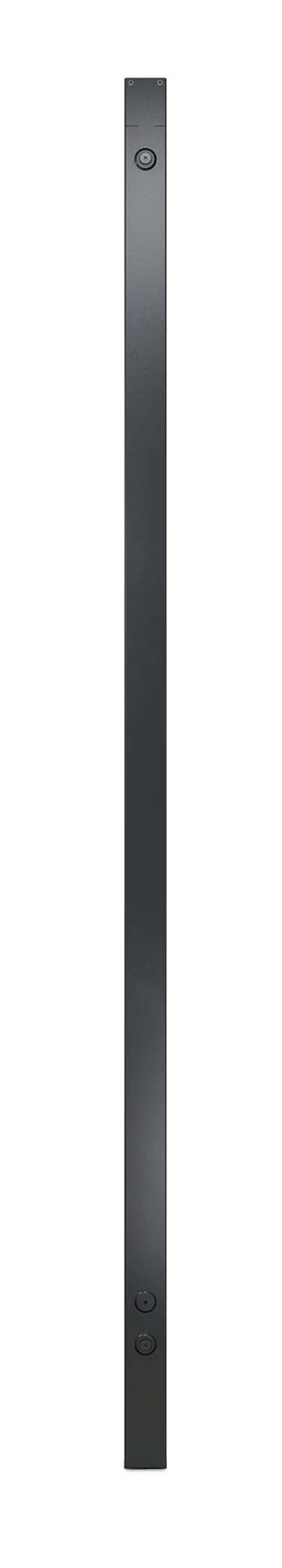

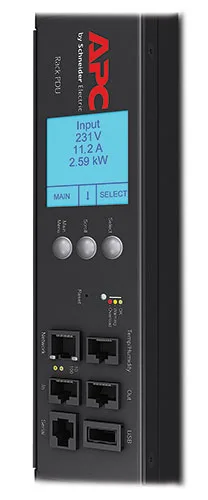

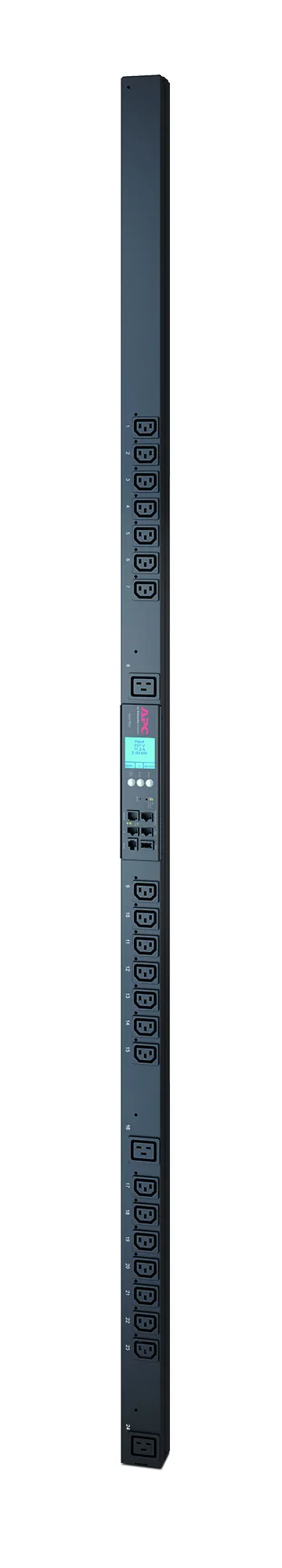

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 100-240V, (21) C13 & (3) C19
