SRP S$4,218.30
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Cable length: 3 m
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
- Load capacity: 3680 VA
Other configurations
3 more Rack PDU 2G. Metered by Outlet with Swit configurations
| Part number | Price | Stock | Open |
|---|---|---|---|
| AP8659EU3 | SRP S$4,218.30 | Order on request | |
| AP8659 | SRP S$3,989.40 | Order on request | |
| AP8653 | SRP S$5,035.80 | Order on request | |
| AP8681 | SRP S$5,956.85 | Order on request |
Specifications
Design
- PDU types
- Metered, Metered-by-outlet, Switched
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)

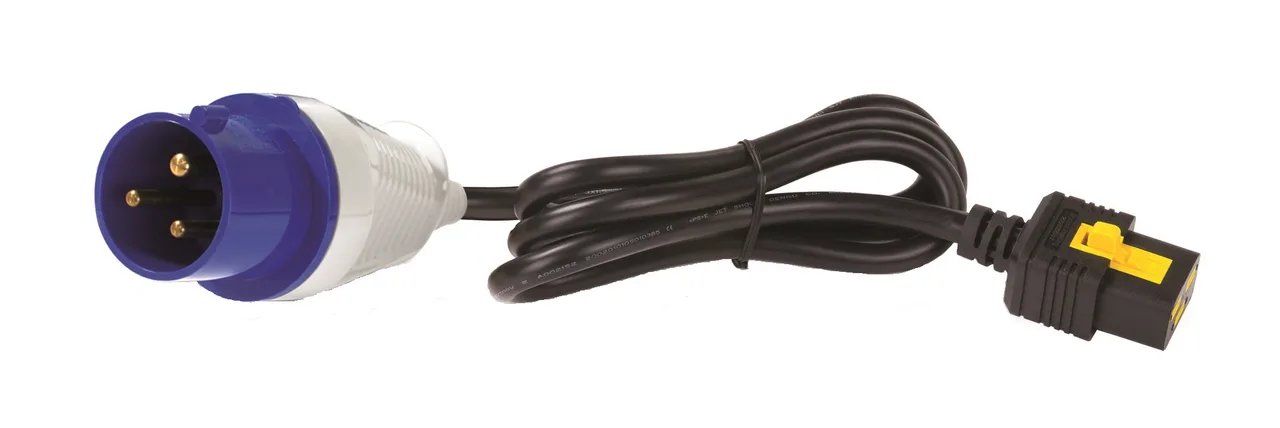

- Power plug
- IEC309
- AC outlet types
- C13 coupler, C19 coupler
Features
- Cable length
- 3 m

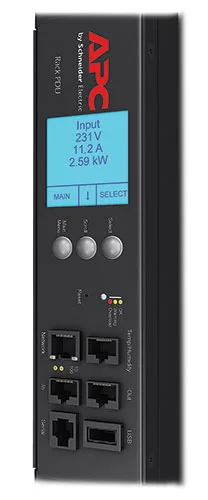

Management features
- Monitoring
- Current, Power, Voltage
- Outlet control
- Lock-out, Recycle, Turn off, Turn on
Power
- Nominal input voltage
- 200-230 V
- AC input frequency
- 50 - 60 Hz
- Nominal output voltage
- 230 V
- Load capacity
- 3680 VA
- Maximum input current per phase
- 16 A
- Maximum total current draw per phase
- 16 A
- Maximum power
- 3680 W
Certificates
- Compliance certificates
- RoHS
- Certification
- EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI Class A, VDE
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 56 mm
- Depth
- 51 mm
- Height
- 1829 mm
- Weight
- 6.77 kg
Packaging data
- Package weight
- 9.05 kg
- Package width
- 162 mm
- Package depth
- 117 mm
- Package height
- 2038 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 7441.92

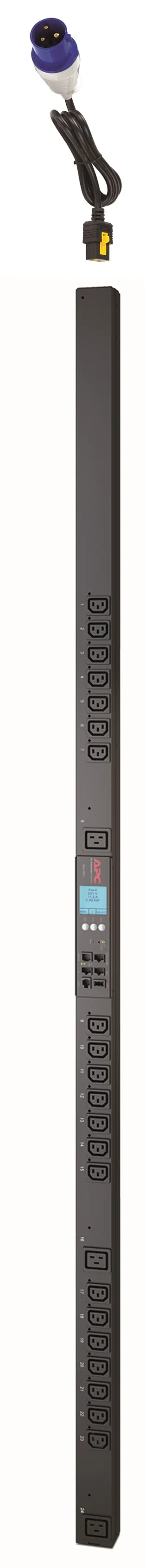

About the APC Rack PDU 2G (AP8659EU3)
The APC Rack PDU 2G (AP8659EU3) is a rack PDU with PDU types Metered, Metered-by-outlet and Switched. It has a rack capacity of 0U, vertical mounting and a product colour of Black. It offers 24 AC outlet(s) with AC outlet types C13 coupler and C19 coupler, a power plug of IEC309 and a cable length of 3 m. Its nominal input voltage is 200-230 V, nominal output voltage is 230 V, load capacity is 3680 VA and maximum power is 3680 W.
Frequently asked questions
Something else?
How much does the APC Rack PDU 2G (AP8659EU3) cost in Singapore?
The suggested retail price (SRP) is from S$4,218.30 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Rack PDU 2G (AP8659EU3)?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Rack PDU 2G (AP8659EU3)?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
