SRP S$1,607.75
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Cable length: 3 m
- AC outlets quantity: 26 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
- Input connection type: IEC 60309 32 A 2P + E
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 26 AC outlet(s)
- Power plug
- IEC309
- AC outlet types
- C13 coupler, C19 coupler
- Input connection type
- IEC 60309 32 A 2P + E
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 32 A
- Nominal output voltage
- 230 V
- Output voltage
- 230 V
- Power protection features
- Overload
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- CE; EAC; IRAM; VDE
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -15 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 56 mm
- Depth
- 43 mm
- Height
- 1626 mm
- Weight
- 6.18 kg
Packaging data
- Package weight
- 8 kg
- Package width
- 226 mm
- Package depth
- 135 mm
- Package height
- 1875 mm
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- SCIP number
- 1cdb2fed-a06f-4574-913d-8df8e70936b2
- Halogen free
- No
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Country of origin
- India
- Customs product code (TARIC)
- 8544429090
- Total carbon footprint (kg of CO2e)
- 4481.3674802844

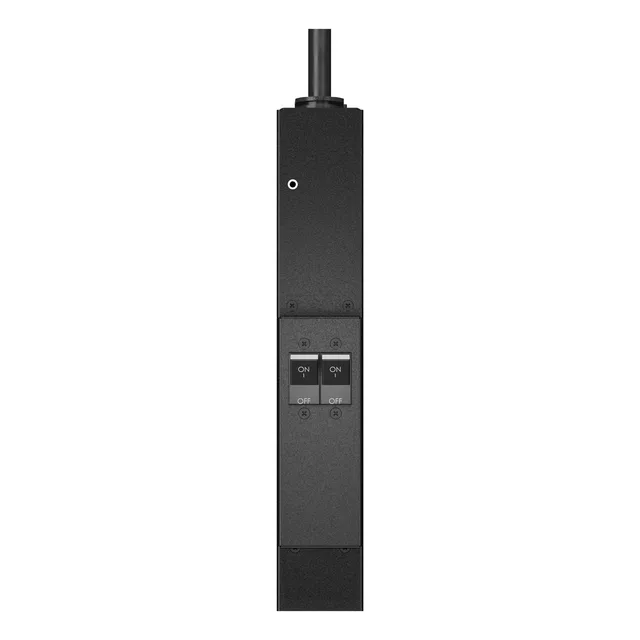

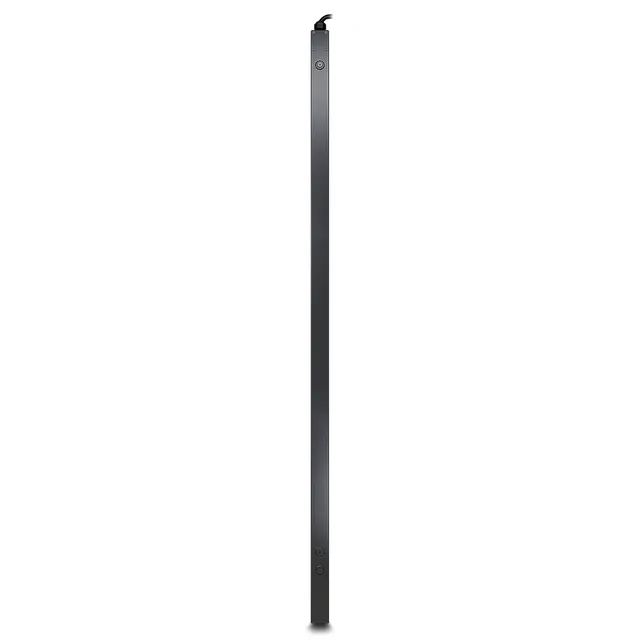

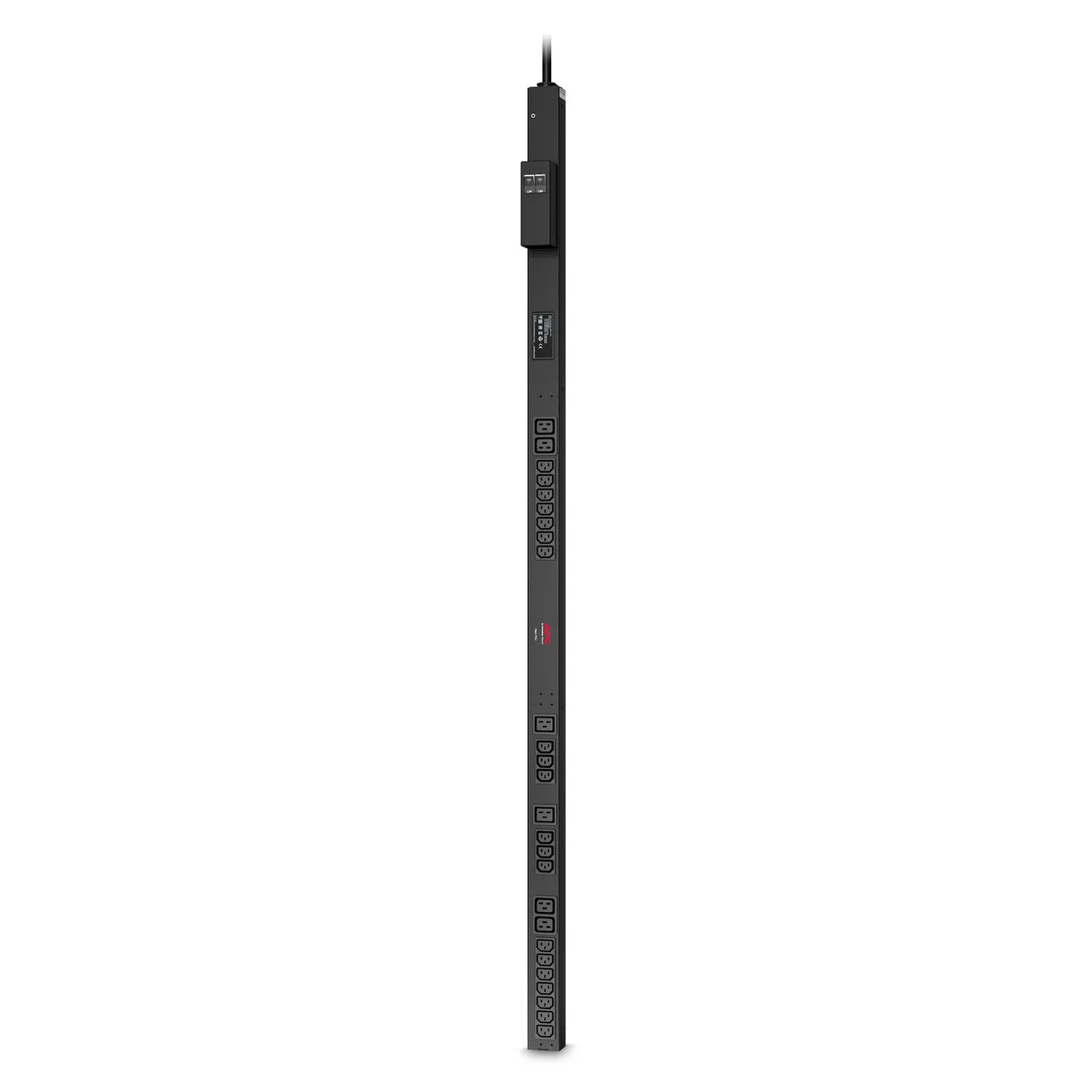

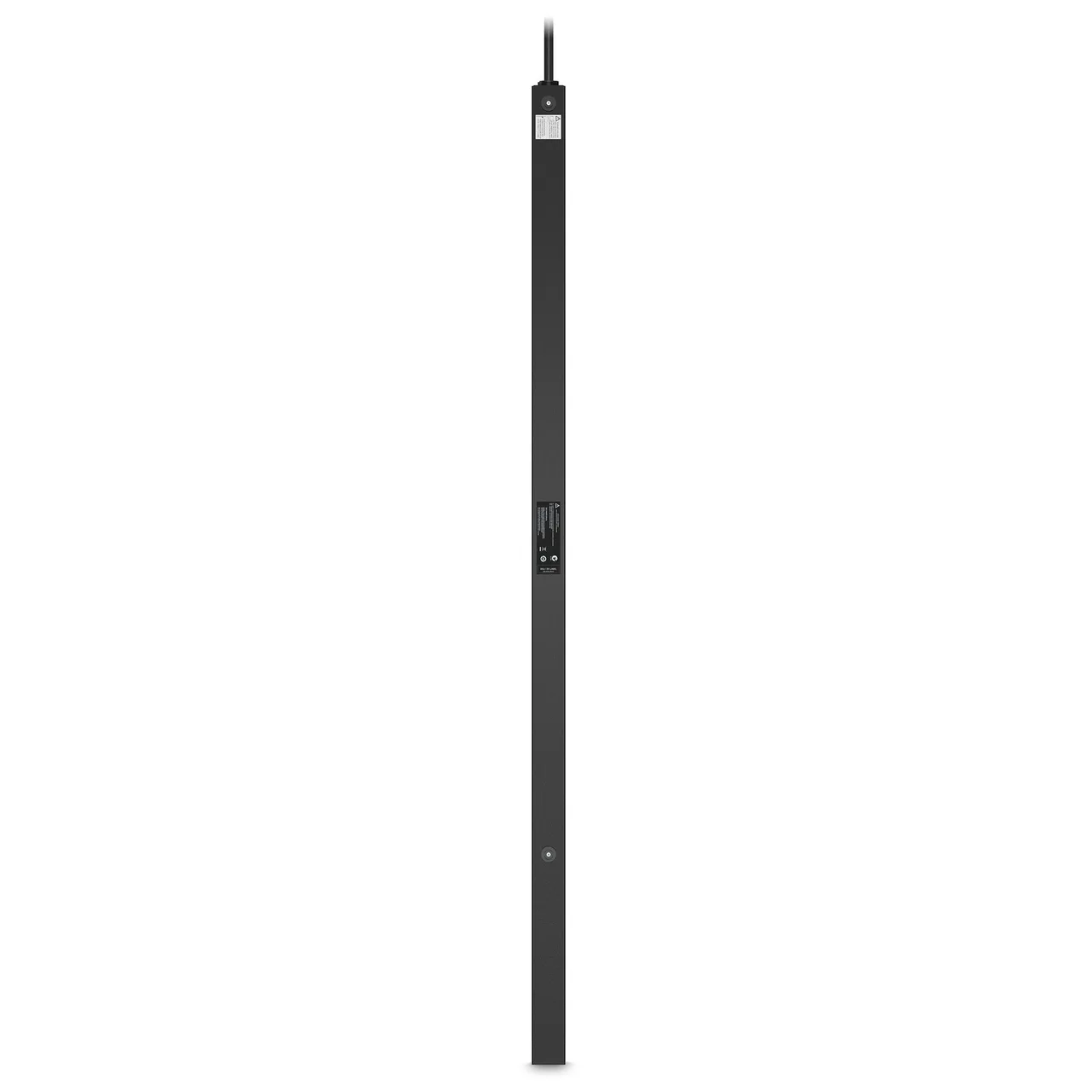

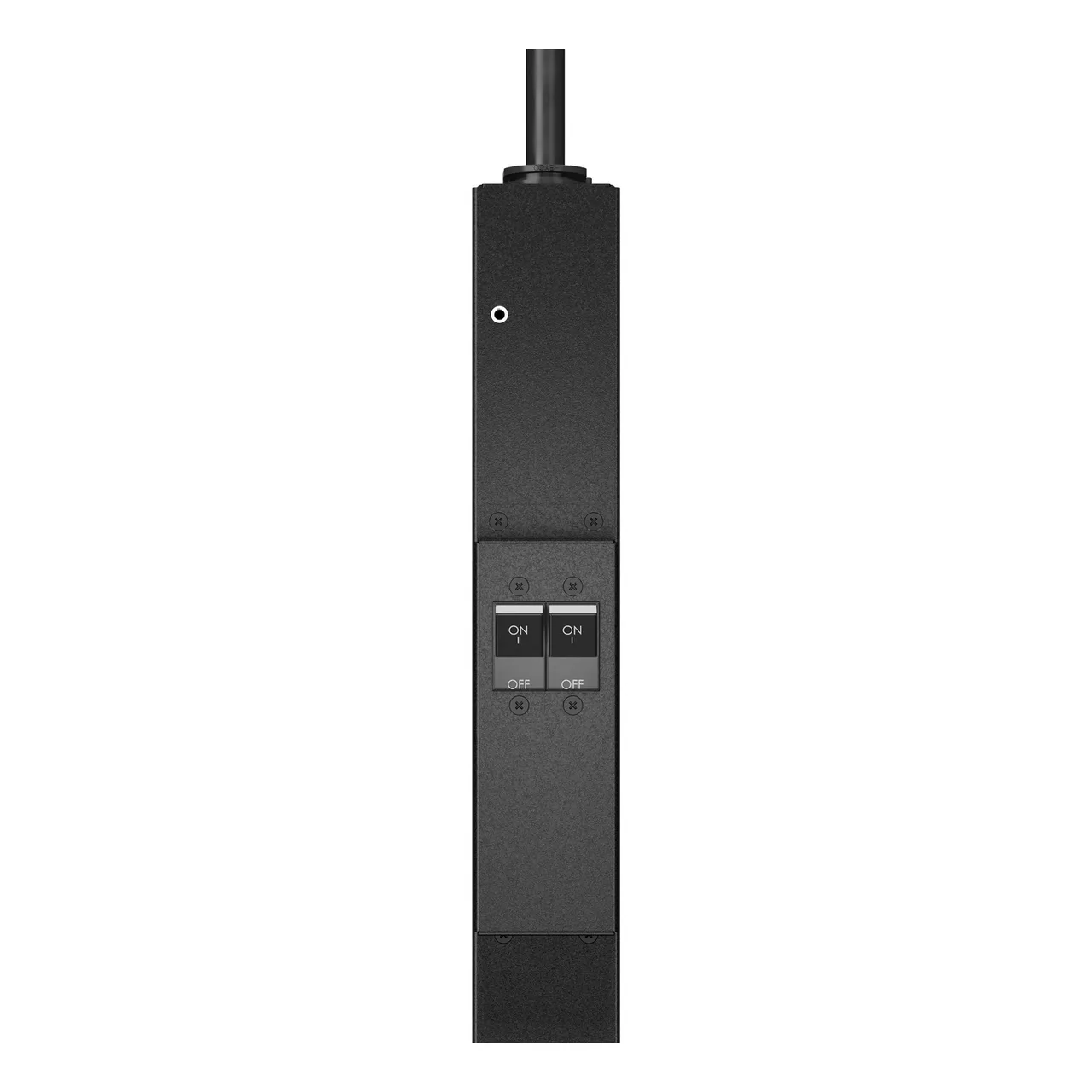

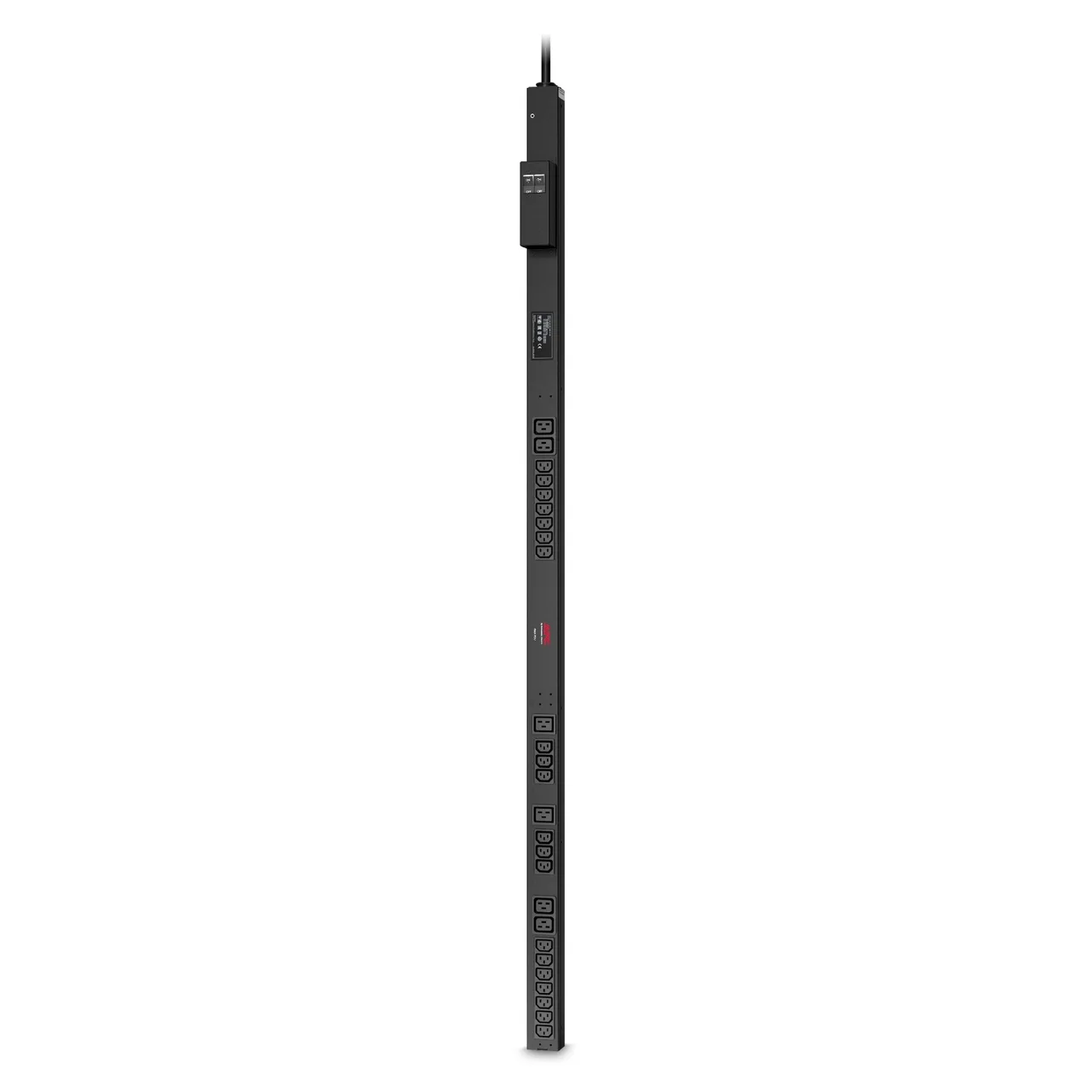

About the APC RACK PDU (AP6009A)
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 32A and operates at 230V.
Frequently asked questions
Something else?
How much does the APC RACK PDU (AP6009A) cost in Singapore?
The suggested retail price (SRP) is from S$1,607.75 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the RACK PDU (AP6009A)?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the RACK PDU (AP6009A)?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
