SRP S$1,744
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Specifications
Design
- PDU types
- Managed
- Type
- Single-phase
- Form factor
- Rackmount
- Rack mounting
- Yes
- Rack capacity
- 1U
- Mounting
- Horizontal
- Product colour
- Black
- Cable colour
- Black

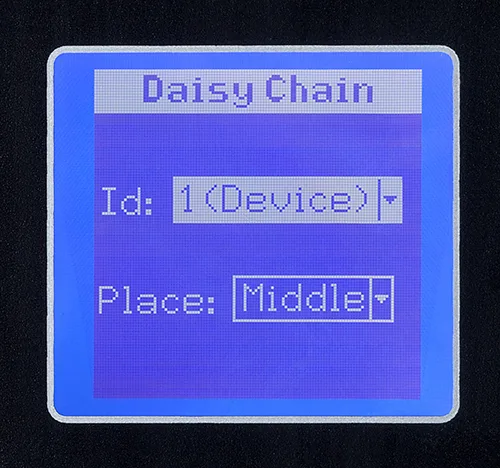

- Display
- LCD
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- C20 coupler
- AC outlet types
- C13 coupler
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Output connections
- 8 x C13
Features
- LED indicators
- Yes
- Cable length
- 3 m

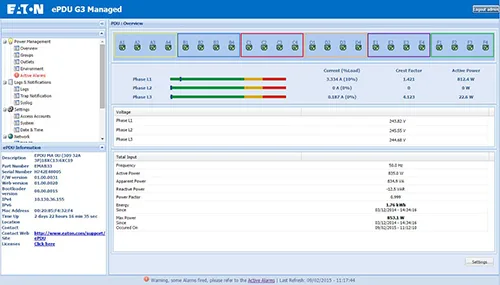

Management features
- Monitoring
- Voltage
- Supported network protocols
- HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS
- Management protocols
- SNMP, Telnet
- Firmware upgradeable
- Yes
- Firmware upgradeable via
- Network, USB
Power
- Nominal input voltage
- 230 V
- AC input frequency
- 50 Hz
- Maximum current
- 16 A
- Nominal output voltage
- 230 V
- Maximum input current per phase
- 16 A
- Maximum power
- 3700 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CB, CE, EN 60950-\n1:2006/A11:2009/A1:2010/A12:2011\nEN 61000-6-2:2005\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
Weight & dimensions
- Width
- 445 mm
- Depth
- 203 mm
- Height
- 43 mm
- Weight
- 3.4 kg
Packaging content
- Cables included
- LAN (RJ-45)
- Rack mount kit
- Yes
Packaging data
- Package weight
- 5.8 kg
- Package width
- 375 mm
- Package depth
- 570 mm
- Package height
- 195 mm

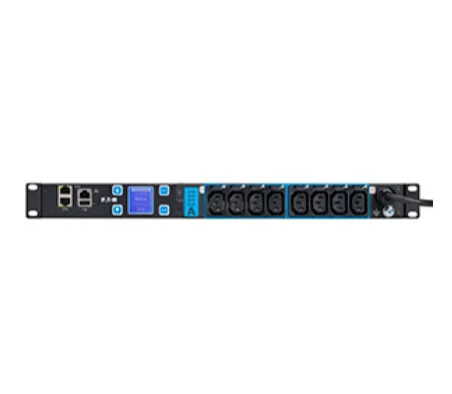

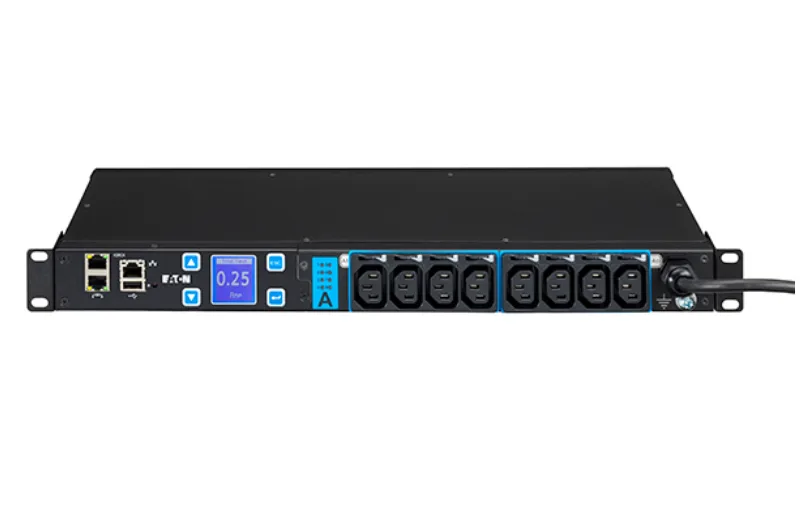

About the Eaton G3+ Managed Rack PDU, 1U, Input C2
The Eaton G3+ Managed Rack PDU, 1U, Input C2 is a managed, single-phase rackmount PDU with a rack capacity of 1U and horizontal mounting. It has 8 AC outlet(s) of the C13 coupler type, a C20 coupler power plug, an LCD display and LED indicators. Its nominal input voltage is 230 V, its maximum current is 16 A and its maximum power is 3700 W. It measures 445 mm in width, 203 mm in depth, 43 mm in height and weighs 3.4 kg.
Frequently asked questions
Something else?
How much does the Eaton G3+ Managed Rack PDU, 1U, Input C2 cost in Singapore?
The suggested retail price (SRP) is from S$1,744 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Eaton SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the Eaton G3+ Managed Rack PDU, 1U, Input C2?
Eaton warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the Eaton G3+ Managed Rack PDU, 1U, Input C2?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
