SRP S$1,258.95
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Metered 0U/1U Black
- 8 AC outlet(s) C13 coupler
- 3680 W
Specifications
Design
- PDU types
- Metered
- Rack capacity
- 0U/1U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- C20 coupler
- AC outlet types
- C13 coupler
- Input connection type
- IEC-320 C20
Features
- LED indicators
- Yes
Management features
- Monitoring
- Current, Power, Voltage
Power
- Nominal input voltage
- 200-230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 20 A
- Output voltage
- 230 V
- Load capacity
- 3680 VA
- Maximum input current per phase
- 16 A
- Maximum total current draw per phase
- 16 A
- Maximum power
- 3680 W
Certificates
- Compliance certificates
- RoHS
- Certification
- cUL, C-tick, CE, CSA, FCC 15 A, GOST, ICES-003, UL 60950, UL Listed, VCCI, VDE
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 444 mm
- Depth
- 102 mm
- Height
- 44 mm
- Weight
- 1.74 kg
Packaging content
- Packaging content
- Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual
Packaging data
- Package weight
- 2.92 kg
- Package width
- 470 mm
- Package depth
- 337 mm
- Package height
- 64 mm

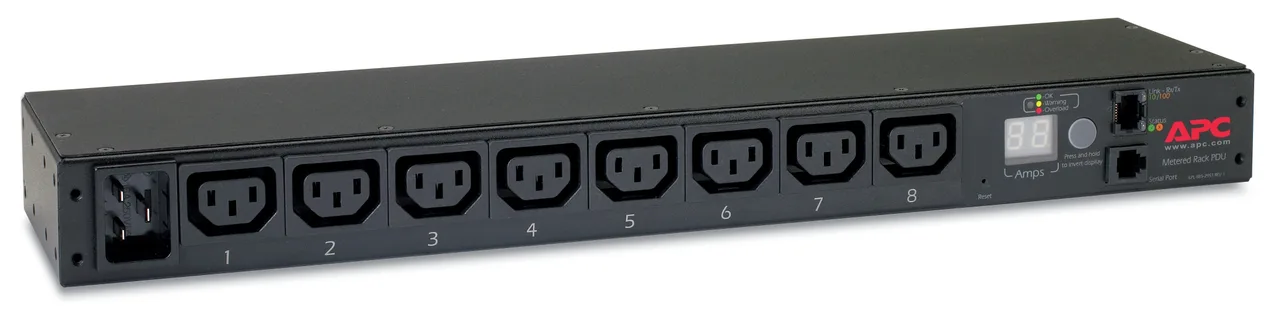

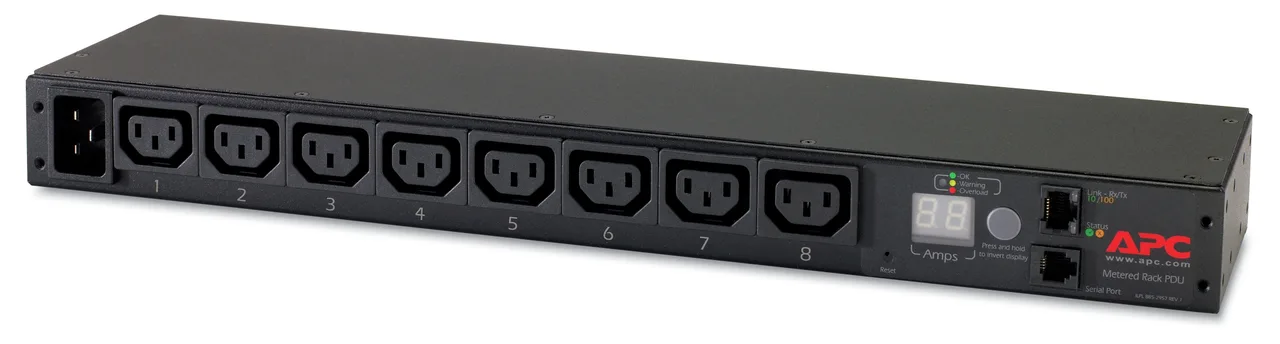

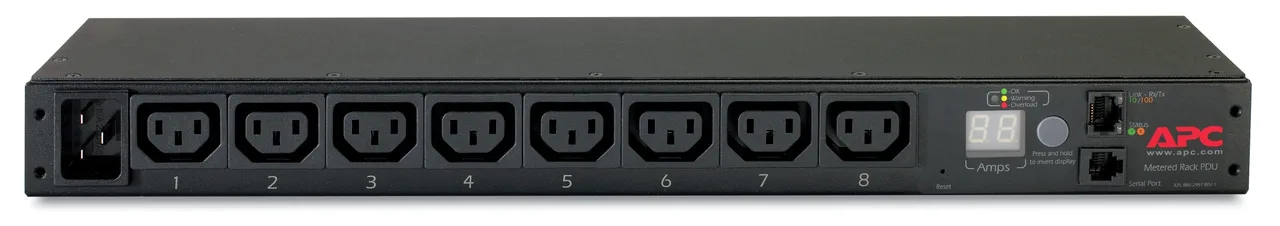

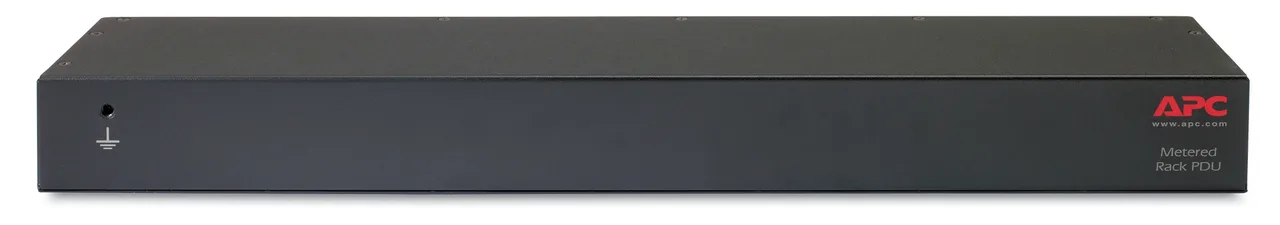

About the APC AP7821B PDU
The AP7821B PDU is a metered PDU with a rack capacity of 0U/1U and horizontal/vertical mounting, in black. It has 8 AC outlet(s) with a C13 coupler outlet type, and its input connection type is IEC-320 C20. It has LED indicators, and its monitoring is current, power and voltage. Its nominal input voltage is 200-230 V, its output voltage is 230 V, and its load capacity is 3680 VA. It measures 444 mm in width, 102 mm in depth and 44 mm in height, with a weight of 1.74 kg.
Frequently asked questions
Something else?
How much does the APC AP7821B PDU cost in Singapore?
The suggested retail price (SRP) is from S$1,258.95 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the AP7821B PDU?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the AP7821B PDU?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
