SRP S$1,171.75
Indicative only — contact us for accurate pricing. Questions about this product? or chat on WhatsApp.
Highlights
- Cable length: 3.05 m
- AC outlets quantity: 16 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- Maximum current: 10 A
Specifications
Design
- PDU types
- Metered
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 16 AC outlet(s)
- Power plug
- C14 coupler
- AC outlet types
- C13 coupler
Features
- LED indicators
- Yes
- Cable length
- 3.05 m
Management features
- Monitoring
- Current, Power, Voltage
Power
- Nominal input voltage
- 200-250 V
- AC input frequency
- 47/63 Hz
- Maximum current
- 10 A
- Nominal output voltage
- 230 V
- Load capacity
- 2300 VA
- Maximum input current per phase
- 10 A
- Maximum total current draw per phase
- 10 A
- Maximum power
- 2300 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, GOST, VDE
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 23 - 113 °F
Weight & dimensions
- Width
- 56 mm
- Depth
- 44 mm
- Height
- 1245 mm
- Weight
- 3.07 kg
Packaging data
- Package weight
- 3.98 kg
- Package width
- 387 mm
- Package depth
- 323 mm
- Package height
- 2134 mm

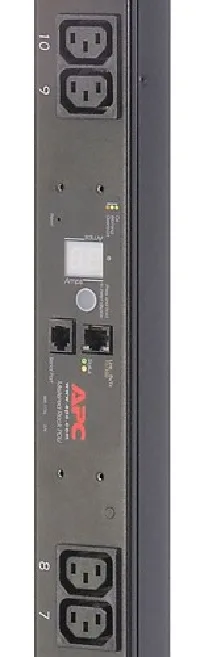

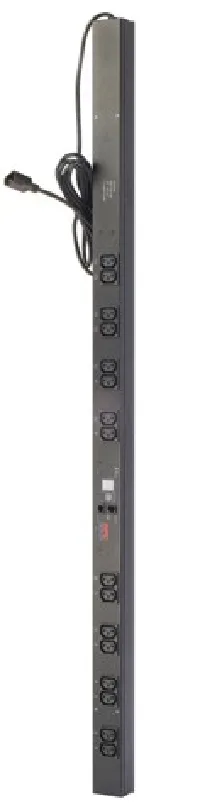

About the APC AP7850B PDU
The APC AP7850B PDU is a metered PDU with a rack capacity of 0U and vertical mounting. It has 16 AC outlet(s) of the C13 coupler type and a C14 coupler power plug. Its nominal input voltage is 200-250 V, its maximum current is 10 A and its load capacity is 2300 VA. It measures 56 mm in width, 44 mm in depth and 1245 mm in height, with a weight of 3.07 kg.
Frequently asked questions
Something else?
How much does the APC AP7850B PDU cost in Singapore?
The suggested retail price (SRP) is from S$1,171.75 incl. GST — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact APC SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the AP7850B PDU?
APC warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the AP7850B PDU?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
