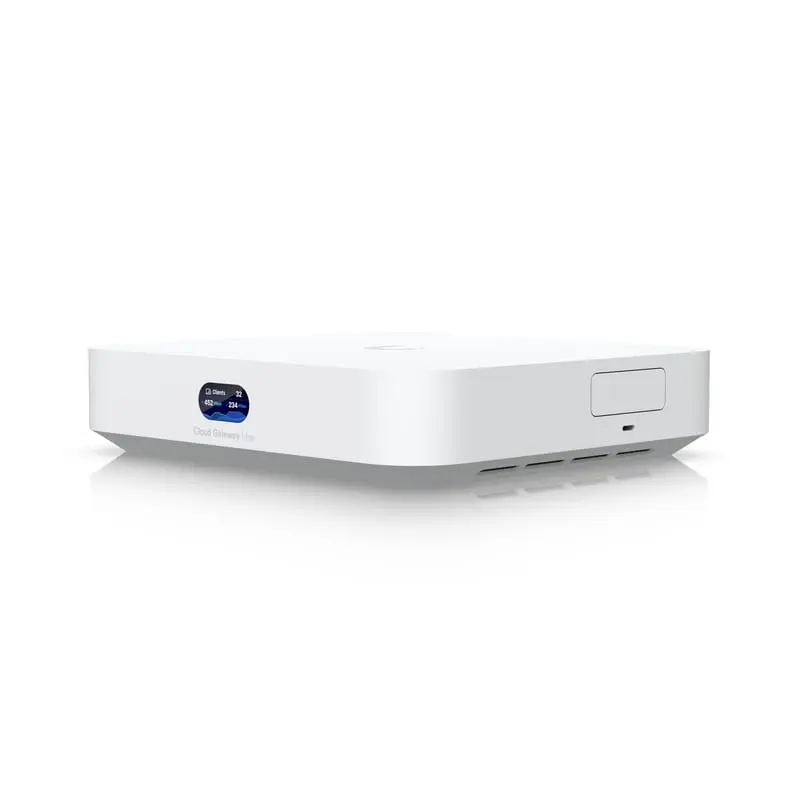

Ubiquiti UniFi Cloud Gateway Max
New
Ubiquiti Cloud gateway

Ubiquiti UniFi Cloud Gateway Max UCG-Max

Compact 2.5 GbE UniFi cloud gateway with 2.3 Gbps IDS/IPS routing, five 2.5 GbE RJ45 ports, and selectable NVMe SSD storage for UniFi Protect camera recording.

  • 2.3 Gbps IDS/IPS routing throughput
  • (5) 2.5 GbE RJ45 ports; up to 4 configurable as WAN
  • Selectable NVMe SSD up to 2 TB for UniFi Protect NVR storage
  • Rated for (15) HD / (8) 2K / (5) 4K cameras and 50 Access hubs
  • Manages 30+ UniFi devices and 300+ simultaneous clients

Pricing

From S$473 SRP

Indicative only — contact us for accurate pricing.

Best for

OfficeHybrid work
View on Ubiquiti website

Specifications

Performance

IDS/IPS throughput
2.3 Gbps
Managed UniFi devices
30+
Simultaneous connected users
300+
Processor
Quad-core ARM Cortex-A53 at 1.5 GHz
System memory
3 GB
Managed cameras
(15) HD, (8) 2K, (5) 4K
Managed Access hubs
50

Ports & Power

Port layout
(5) 2.5 GbE RJ45 (2.5G/1G/100M/10M)
WAN (default)
(1) 2.5 GbE RJ45
Maximum WAN ports
4
NVR storage
Selectable NVMe SSD up to 2 TB
Power method
USB type C (5V DC/5A)
Max power consumption
16.1W

Physical

Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight
Without SSD: 460 g; with SSD: 519 g

About this product

The Cloud Gateway Max is a compact all-2.5 GbE gateway for offices that want UniFi network management and camera recording in a single desktop unit. It manages 30+ UniFi devices and 300+ simultaneous clients, and IDS/IPS-inspected routing is rated at 2.3 Gbps.

All five RJ45 ports run at 2.5 GbE, with one as default WAN and up to four configurable as WAN. A selectable NVMe SSD (up to 2 TB) provides NVR storage; Ubiquiti rates camera support at (15) HD, (8) 2K, or (5) 4K cameras, plus 50 managed Access hubs. Power is over USB-C (5V/5A) with a 16.1W maximum consumption.

Available through authorised Singapore distribution.

Frequently asked questions

How much does the Ubiquiti UniFi Cloud Gateway Max cost in Singapore?
The suggested retail price (SRP) is from S$473 — indicative only. Actual pricing varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll come back with accurate pricing for your requirement.
How do you confirm availability for this SKU?
Availability depends on the exact Ubiquiti SKU, quantity, warranty term, and whether a comparable configuration is acceptable. We quote against authorised Singapore channel availability and flag suitable alternatives when the requested model is constrained.
What warranty comes with the UniFi Cloud Gateway Max?
Ubiquiti warranty terms vary by SKU and configuration. We include the warranty assumptions in the quote and can add extended or on-site options where they make sense for your fleet lifecycle.
Do you handle deployment for new devices?
Yes — imaging, MDM enrolment, and end-user delivery in Singapore can be added as an optional service alongside the hardware. Asset disposal for older units can also be quoted on request.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm. Authorised channel terms may restrict returns on configured-to-order units, so we include the model, quantity, warranty, and key specifications for sign-off before an order is placed.
