Price on request
Questions about this product? or chat on WhatsApp.
Highlights
- 3.5 Gbps IDS/IPS routing throughput
- (9) GbE RJ45 and (2) 10G SFP+ ports; default WAN via 10G SFP+ or GbE RJ45
- Runs UniFi Network, Protect, Access, Talk, and Connect applications
- 3.5" HDD bay for NVR storage; rated for (24) HD / (14) 2K / (8) 4K cameras
- Manages 100+ UniFi devices; 1U rack-mount form factor
Specifications
Performance
- IDS/IPS throughput
- 3.5 Gbps
- IDS/IPS signatures
- 55,000+ with CyberSecure
- Managed UniFi devices
- 100+
- Managed cameras
- (24) HD, (14) 2K, (8) 4K
- Processor
- Quad-core ARM Cortex-A57 at 1.7 GHz
- System memory
- 4 GB
- On-board storage
- 16 GB
- NVR storage
- (1) 3.5" HDD bay
Ports & Power
- RJ45 ports
- (9) GbE RJ45 (1G/100M/10M)
- SFP+ ports
- (2) 10G SFP+ (10G/1G)
- WAN (default)
- (1) 10G SFP+, (1) GbE RJ45
- Power supply
- AC/DC, internal, 50W; universal input 100–240V AC, 50/60 Hz
- Max power consumption
- 33W
Physical
- Form factor
- Rack mount (1U)
- Dimensions
- 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
- Weight
- 3.9 kg (8.6 lb)

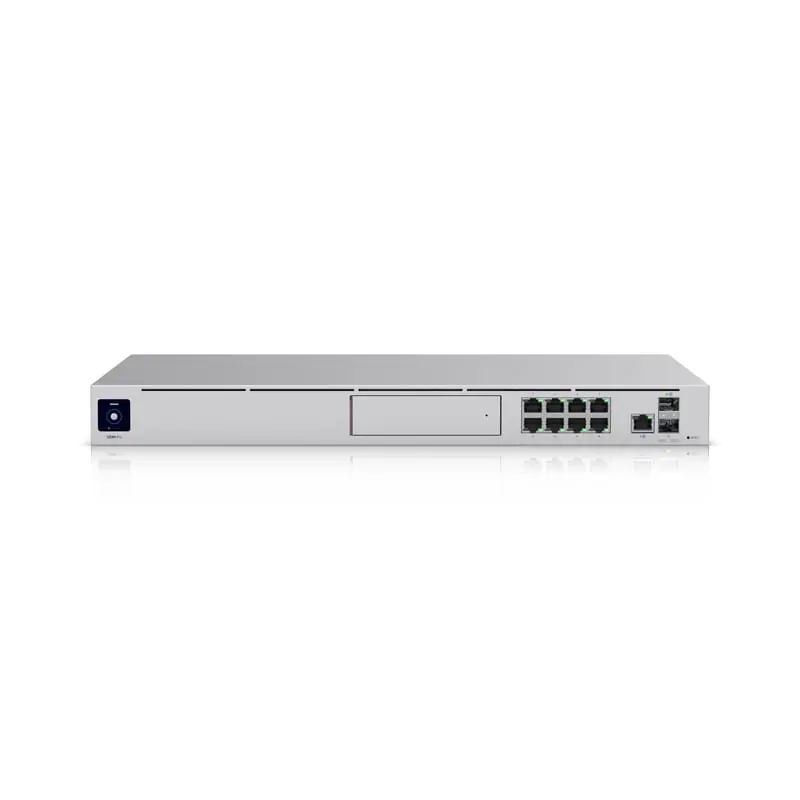

About the Ubiquiti UniFi Dream Machine Pro
The Dream Machine Pro is a 1U rack-mount gateway and console for offices standardising on the UniFi ecosystem. It runs the full UniFi application suite — Network, Protect, Access, Talk, and Connect — and is rated to manage 100+ UniFi devices from a single unit.
IDS/IPS-inspected routing is rated at 3.5 Gbps. Connectivity comprises (9) GbE RJ45 ports and (2) 10G SFP+ ports, with default WAN on (1) 10G SFP+ and (1) GbE RJ45. A 3.5-inch HDD bay provides NVR storage for UniFi Protect, with camera support rated at (24) HD, (14) 2K, or (8) 4K cameras. An internal 50W AC power supply drives a maximum consumption of 33W.
Frequently asked questions
Something else?
How much does the Ubiquiti UniFi Dream Machine Pro cost in Singapore?
Pricing for the UniFi Dream Machine Pro varies by configuration, warranty term, quantity, and deployment scope. Add it to your quote list and we'll be in touch with options, availability, and pricing for your configuration.
How do you confirm availability for this SKU?
Availability depends on the exact Ubiquiti SKU, quantity, warranty term, and whether a comparable configuration is acceptable. Current availability is confirmed against your requirements when a quote is prepared.
What warranty comes with the UniFi Dream Machine Pro?
Ubiquiti warranty terms vary by SKU and configuration, and the warranty assumptions are stated in the quote.
Can you install the UniFi Dream Machine Pro?
Installation can be quoted on request. Depending on the model and the scope of work, it may be carried out by a third-party provider we work with.
What if the wrong configuration is ordered?
Hardware quotes are based on the exact configuration you confirm, so check the model, quantity, warranty, and key specifications before you order. Return and cancellation terms are set out in the Terms of Sale and in the quotation we issue.
